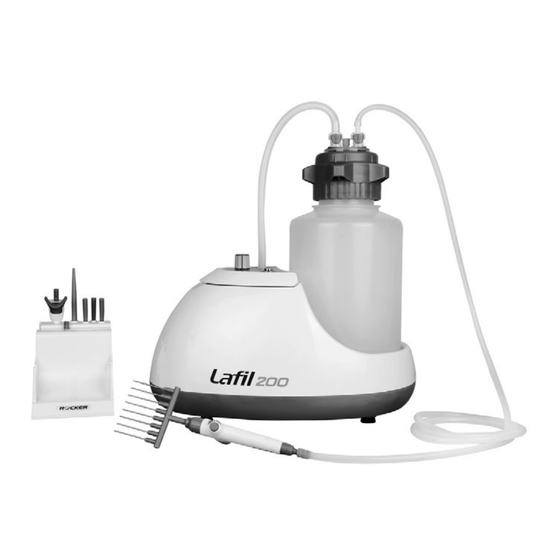

- Page 1 INSTRUCTION MANUAL Suction System Model No. Instruction Video Lafil 100 / 100 Lafil 200 - Plus / BioDolphin Lafil 200 - Plus / BioDolphin Lafil 300 - Plus / BioDolphin Lafil 400 - Plus / BioDolphin...
-
Page 2: Important Notice
Important Notice This instrument is designed for laboratory usage only. Please read this manual carefully before installing and operating. The instrument shall not be modified in any way. Any modification will void the warranty and may result in potential hazard. We are not responsible for any injury or damage caused by any non-intended purposes and modifying the instrument without authorization. -
Page 3: Standard Package Includes
Unpacking Please check if the package is complete without any damage before unpacking. When unpacking, please make sure you have all accessories that indicated on the list. If there is any problem, please keep the serial number along with packing case and contact your local distributor immediately for assistance. - Page 4 La l 200 - Plus La l 200 - BioDolphin La l 200 - Plus La l 200 - BioDolphin Model Standard Package Includes: Lafil 200 / 200 , Oil Free Vacuum Pump 4L PP Vacuum Bottle with Quick-Coupling Connectors Plus, Suction Kit La l 200 - Plus Silicone Tube...
- Page 5 La l 300 / 400 - Plus La l 300 / 400 - BioDolphin Standard Package Includes: Model Lafil 300 / 400, Oil Free Vacuum Pump 1200 mL PES Vacuum Bottle Plus, Suction Kit La l 300 - Plus Silicone Tube La l 400 - Plus Repair Kit Power Cord...
- Page 6 Main Part Diagram (1). Vacuum Pump La l 100 / La l 100 Designation Designation Position Position Power Switch Centrifuge Tube Rack Inlet (Syringe Filter) DC Socket Liquid Collection Tray is black with blue light. Refer to Troubleshooting when light is * The power switch of Lafil 100 flickering.
- Page 7 La l 200 / La l 200 La l 300 / 400 Designation Designation Position Position Power Switch PE Muffler Inlet Ventilation Outlet Vacuum Regulator DC Socket Handle AC Socket Vacuum Gauge Fuse Holder Washer...
- Page 8 (2). Vacuum Bottle Bottle 1000 mL PP Bottle 1200 mL PES Bottle 4000 mL PP Bottle Model La l 100 / 100 La l 300 / 400 La l 200 / 200 1. The silicone tube and overflow protection device are installed on inside of the cap corresponding to each “LIQ”...
- Page 9 (3). Suction Kit * The suction kit except for rack is available for autoclave. BioDolphin, Suction Kit Handle 8-channel SS adaptor (40 mm) 1-channel tip adaptor (50 mm) 1-channel tip adaptor with ejector 1-channel tip adaptor (150 mm) 8-channel tip adaptor with ejector 1-channel SS adaptor (40 mm) Rack 1-channel SS adaptor (80 mm)
- Page 10 Installation and Operation • Suction System Operation Turn on the pump, block the inlet and regulate the desired vacuum by vacuum regulator and turn it off. • Vacuum regulation is only applicable on Lafil 200 / 200 / 300 / 400. Assemble the vacuum pump and vacuum bottle as shown in previous part, then put the installed bottle in the Lafil series vacuum pump.
- Page 11 • Suction System Operation Model La l 100 / 100 La l 200 / 200 Compatible 1000 mL PP Bottle (standard) 4000 mL PP Bottle (standard) with 500 mL Glass Bottle (optional) 3500 mL Glass Bottle (optional) * GL45 suction cap is necessary when glass bottle is used in suction system.
-
Page 12: Maintenance
Maintenance 1. The vacuum pump is not autoclavable. Please clean the surface by pure water, 75% ethanol or isopropanol (IPA). 2. Please suck in pure water to clean the tubing after every use. 3. After finishing the experiment, please keep pumping the air for at least 2 minutes to withdraw the residual steam. - Page 13 O-ring O-ring Rubber valve Rubber adaptor Stainless steel spring O-ring...
-
Page 14: Troubleshooting
Troubleshooting Problem Reason and Solution Loose plug Reconnect plug to socket firmly. ● Wrong voltage Reconnect to power specified on name plate. ● Wrong power adaptor Plug in the power adaptor from manufac ● Failed to start ture of instrument. -
Page 15: Ordering Information
Ordering Information 197100-01(02) Lafil 100, Portable Suction System, AC100-240V adaptor, US plug (EU plug) 197110-01(02) Lafil 100 , Portable Suction System, AC100-240V adaptor, US plug (EU plug) 197203-01(02) Lafil 200 - BioDolphin, Suction System, AC100-240V adaptor, US plug (EU plug) 197205-01(02) Lafil 200 - Plus, Suction System, AC100-240V adaptor, US plug (EU plug) 197213-01(02) - Page 16 Rocker Scienti c Co., Ltd. Tel: +886-2-26033311 Fax: +886-2-26036622 E-mail:export@rocker.com.tw https://www.rocker.com.tw...
