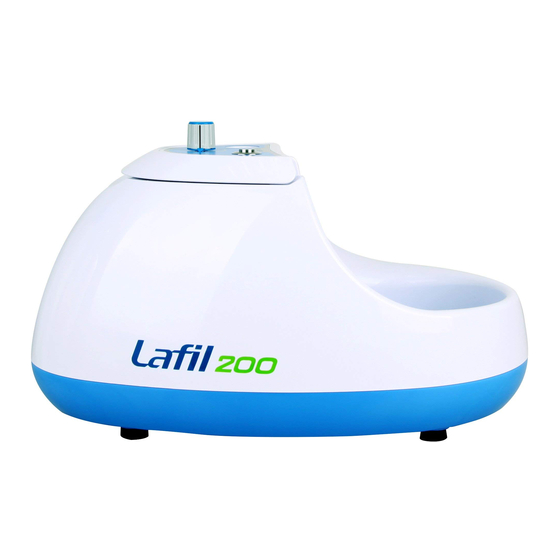

- Page 1 Lafil 200 Lafil 200 - Plus Lafil200 - BioDolphin Suction system...
-
Page 2: Important Notice
Carefully check if the shipping carton is damaged before unpacking. Please check the items according to standard package list. If you have any questions, please preserve serial number, shipping carton and contact your dealer for quick solution. Item Designation Lafil 200 suction unit Power Adapter Operating Manual... - Page 3 Lafil 200 - Plus Item Designation Lafil 200 suction unit 4L PP vacuum bottle with quick-coupling connectors Plus Suction Kit Silicone Tube Power Adapter Foot Switch (optional) Repair Kit Operating Manual Lafil 200 - BioDolphin Item Designation Lafil 200 suction unit...
- Page 4 Assembly & Disassembly Diagram (1). Lafil 200 ① ③ ② Position Designation Power switch ④ Vacuum regulator Inlet Foldable handle Power plug ⑤ (2). PP Waste Bottle Position Designation "LIQ"Inlet, 1/4 inch quick-coupling connector (optional: 5/16 inch quick-coupling connector) "AIR"Outlet, 1/4 inch quick-coupling connector...
- Page 5 ③ ② ① ④ ⑤ ⑥ ⑦ ⑧ (3). 3.5L Glass Bottle︰ ① Position Designation ② GL45 suction cap ③ O-ring Silicone Tube ④ 3500ml Glass Bottle...
- Page 6 (4). Accessories︰ BioDolphin Suction Kit Position Designation Position Designation Handle 1-channel tip adaptor (50 mm) 1-channel tip adaptor (150 mm) 1-channel SS adaptor (40 mm 1-channel SS adaptor (80 mm) 8-channel SS adaptor (40 mm) 1-channel tip adaptor with ejector 8-channel tip adaptor with ejector Rack Plus Suction Kit...
- Page 7 Installation and Operation Lafil 200 Assemble the short tube with the disc filter to the "AIR" hose barb of the suction cap. Assemble the long tube with the handle to the "LIQ" hose barb of the suction cap Connect the power supply and switch on the power.
- Page 8 PP Waste Bottle Cap BioDolphin Handel...
-
Page 9: Maintenance
Suction accessories and silicone tube are autoclavable. Please clean and autoclave if need. Lafil 200 suction unit is not autoclavable. Please clean the case by pure water or 75% alcohol. It is strongly recommended to replace the main parts (internal rubber adaptor, O-ring and SS spring) of the handle every year at least to keep good aspiration. -
Page 10: Troubleshooting
Troubleshooting Symptoms Possible causes Remedy Check the power supply conform 1. No electrical supply to power specified on main unit or Instrument fails the switch is broken start 2. Power switch off Switch on power 3. High vacuum still Release the vacuum 1. -
Page 11: Ordering Information
Ordering Information 197200-01(02) Lafil 200, Vacuum Pump with AC 100-240V adaptor, US plug (EU plug) 197203-01(02) Lafil 200 – BioDolphin, Large Capacity Suction System with AC 100-240V adaptor, US plug (EU plug) 197205-01(02) Lafil 200 – Plus, Large Capacity Suction System with...
