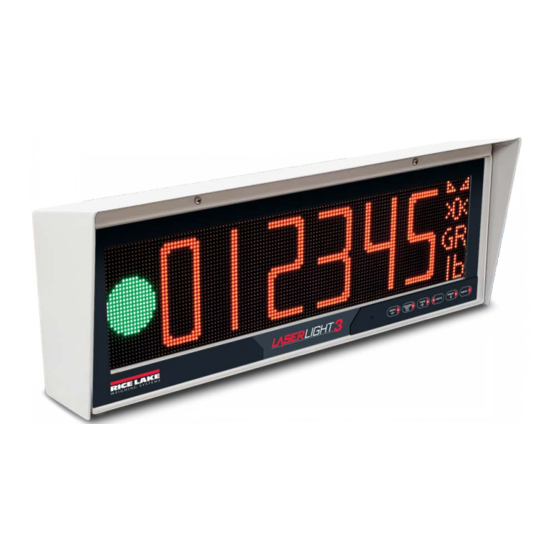

Large-display weight indicator
Hide thumbs Also See for LaserLight3:

Advertisement

Quick Links

LaserLight3
Large-Display Weight Indicator
Operator Quick Reference Guide
This document describes several commonly used LaserLight3 functions and includes the following sections:
Annunciators
Keypad (on page 2)
Menu Element Overview (on page 3)
Software Functions (on page 4)
Indicator Functions (on page 7)
Manuals and additional resources are available from the Rice Lake Weighing Systems website at
Warranty information can be found on the website at
NOTE: For more information, see the LaserLight3 Large-Display Indicator Technical Manual (PN 213589).
Annunciators
The LaserLight3 provides status information about the weight value displayed. The LaserLight3 also has arrows and traffic lights
that can be displayed by sending serial commands.
Annunciators
Traffic Symbols
Weight Value
>0<
→0←
GR
NT
lb
kg
oz
g
tn
t
NOTE: The layout of annunciators and size of weight digits vary depending on which mode is configured in the Display
menu. Legacy mode provides about 3.75-inch weight digits with annunciators along the bottom of the display, intended to
support predecessor LaserLight2 display mode. Standard mode provides about 5-inch weight digits with annunciators
stacked vertically along the right side.
September 28, 2022

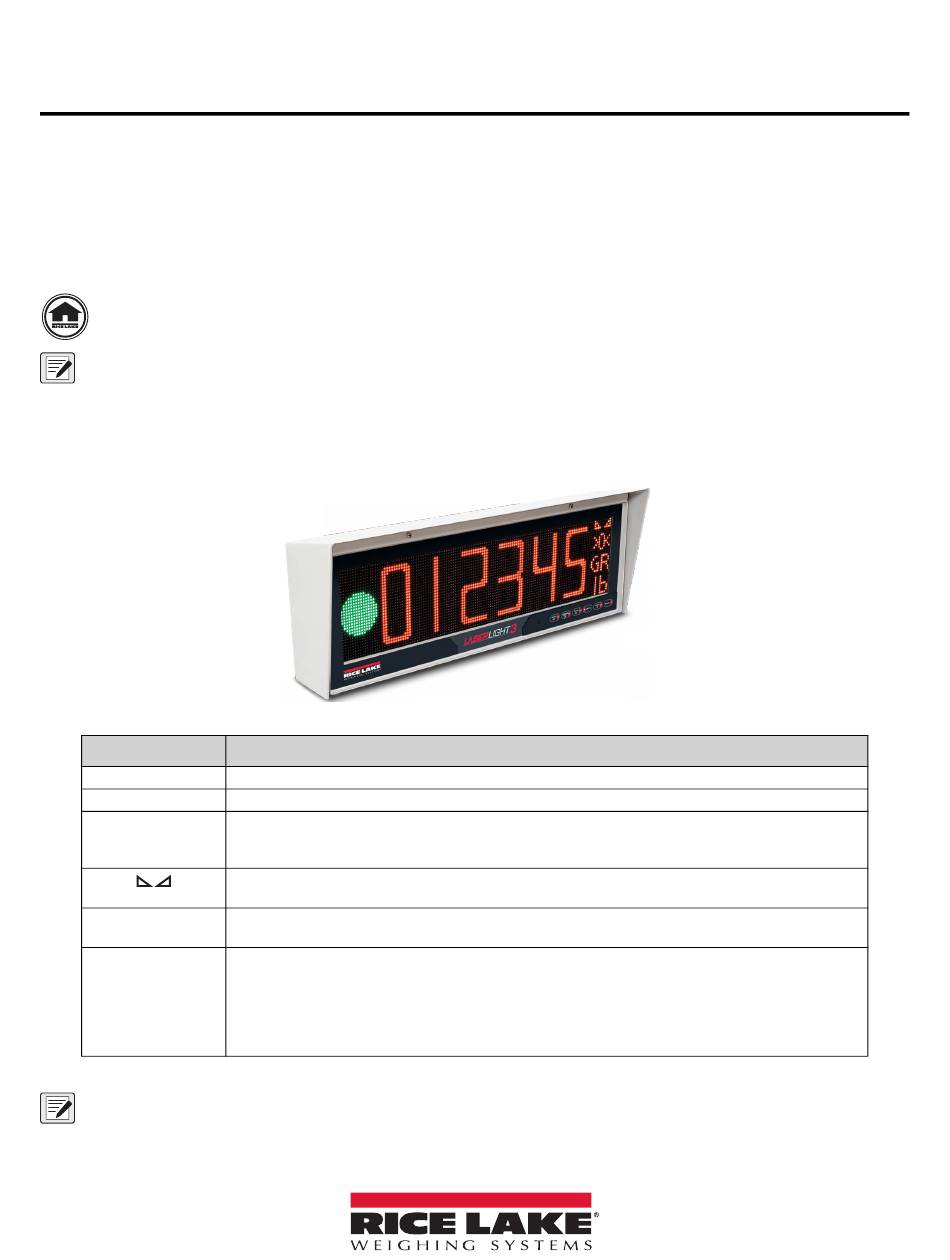

Figure 1. Front Panel Display when Configured in Traffic Mode
Red stop light, red x, green go light, green up arrow, green left arrow, and green right arrow
Displays weighment data
The center of zero annunciator indicates the current gross weight reading is within ± 0.25 display divisions of the
acquired zero, or is within the center of zero band. A display division is the resolution of the displayed weight
value, or the smallest incremental increase or decrease which can be displayed or printed
The standstill annunciator indicates the weight is at standstill or within the specified motion band. Some
operations, including zero, tare and print, can only be done when the standstill annunciator is displayed
Displays which weight display mode is active, GR (Gross) or NT (Net)
The current unit displays at the right side of the numeric weight area and specifies which unit of measure is being
used. Indicates units associated with the displayed value, represents primary and secondary units such as lb, kg,
g, oz, tn and t. The units are changed by pressing the Units button
Table 1. Annunciators
www.ricelake.com/warranties
Description
www.ricelake.com
PN 215590 Rev A
