Product Installation Guidelines
CP-BS Lead Safe™ Mental Health
®
GalvinCare

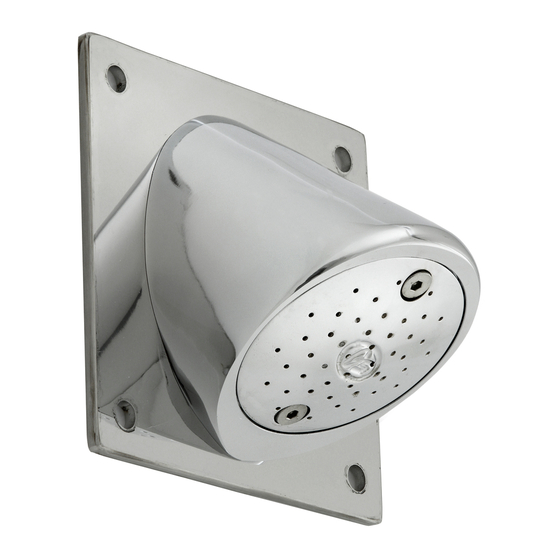

Anti-Ligature ShowerRose 100mm Bolting Plate
PRODUCT CODES:
- 121.35.64.00
SPECIFICATIONS
®
The GalvinCare
Used extensively in high risk, high security applications such as prisons, correctional facilities, and
detention centres.
Designed for maximum protection against vandalism.
Constructed from heavy duty components and comes complete with special tamper resistant screws.
For use with high pressure plumbing systems between 150 & 500kPa.
Special consideration may be required when used with low water pressure systems and components.
Chrome plate finish.
Lead Safe™ brass construction
IMPORTANT: All GalvinCare
3662 and leave our premises in good working order.
*As 'lead free' is not currently defined by low in Australia and New Zealand, we have based our definition of Lead Safe™ on the requirements of s1417 of the USA's Safe Drinking Water Act
(SDWA) and the relevant US standards NSF61 / NSF372. The SDWA defines 'lead free' as "not more than a weighted average of 0.25% lead when used with respect to the wetted surface of
pipes, pipe fittings, plumbing fittings and fixtures".
TECHNICAL DATA
Inlet
Outlet
Headwork
Working Pressure Range (kPa)
Working Temperature Range (°C)
Nominal Flow Rate (LPM)
Finish
NOTE: Galvin Engineering continually strive to improve their products. Specifications may change without
notice.
© Galvin Engineering Pty Ltd
Vandal Resistant Shower Rose 65 provides anti-vandalism and anti-ligature features.
*
®
Vandal Resistant Shower Roses are tested in accordance with AS/NZS
Version 1, 2 February 2022, Page 1 of 4
½" BSP - Female
Shower Rose
N/A
Min
150
Max
500
Min
5
Max
70
6.6
Chrome

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GalvinCare CP-BS Lead Safe 121.35.64.00 and is the answer not in the manual?

Questions and answers

Summary of Contents for Galvin Engineering GalvinCare CP-BS Lead Safe 121.35.64.00

  • Page 1 ½” BSP - Female Inlet Outlet Shower Rose Headwork Working Pressure Range (kPa) Working Temperature Range (°C) Nominal Flow Rate (LPM) Finish Chrome NOTE: Galvin Engineering continually strive to improve their products. Specifications may change without notice. © Galvin Engineering Pty Ltd...
  • Page 2 W LL S INSTALLATION INSTALLATION COMPLIANCE: Galvin Engineering products must be installed in accordance with these installation instructions and in accordance with AS/NZS 3500, the PCA and your local regulatory requirements. Water and/or electrical supply conditions must also comply to the applicable national and/or state standards.
  • Page 3 Turn on water supply, inspect the tap and check for any leaks . ® Note: Never operate without a flow restrictor, as GalvinCare Vandal Resistant Shower Rose will deliver full mains pressure with unrestricted flow. © Galvin Engineering Pty Ltd...
  • Page 4 (available from Galvin Engineering) WARRANTY The warranty set forth herein is given expressly and is the only warranty given by the Galvin Engineering Pty Ltd. With respect to the product, Galvin Engineering Pty Ltd makes no other warranties, express or implied.
