Lead Safe™ Horizontal Lever Action
®
Ezy-Drink
Drinking Bubbler Tap
PRODUCT CODES:
- 170.50.14.00
SPECIFICATIONS
Drinking taps are designed to operate at full mains pressure.
Rubber mouthguard is designed to help protect teeth when drinking.
Rubber mouthguard is resistant to fungal and bacterial attack and has a high resistance to sunlight.
Adjustable built-in flow restrictor.
IMPORTANT:
All Ezy-Drink
our premises in good working order .
TECHNICAL DATA
Inlet
Outlet
Headwork
Working Pressure Range (kPa)
Working Temperature Range (°C)
Nominal Flow Rate (LPM)
Finish
NOTE: Galvin Engineering continually strive to improve their products. Specifications may change without
notice.
TOOLS REQUIRED
Power drill
Spanner or adjustable crescent
Screw driver
®
Lever Bubbler taps are tested in accordance with AS/NZS 3718 and leave
Version 1, 4 February 2020, Page 1 of 4
½" BSP - Female
Rubber mouthguard
Lever action
Min
50
Max
500
Min
5
Max
60
2
Chrome
Advertisement
Related Manuals for Galvin Engineering Ezy-Drink Lead Safe 170.50.14.00
Summary of Contents for Galvin Engineering Ezy-Drink Lead Safe 170.50.14.00

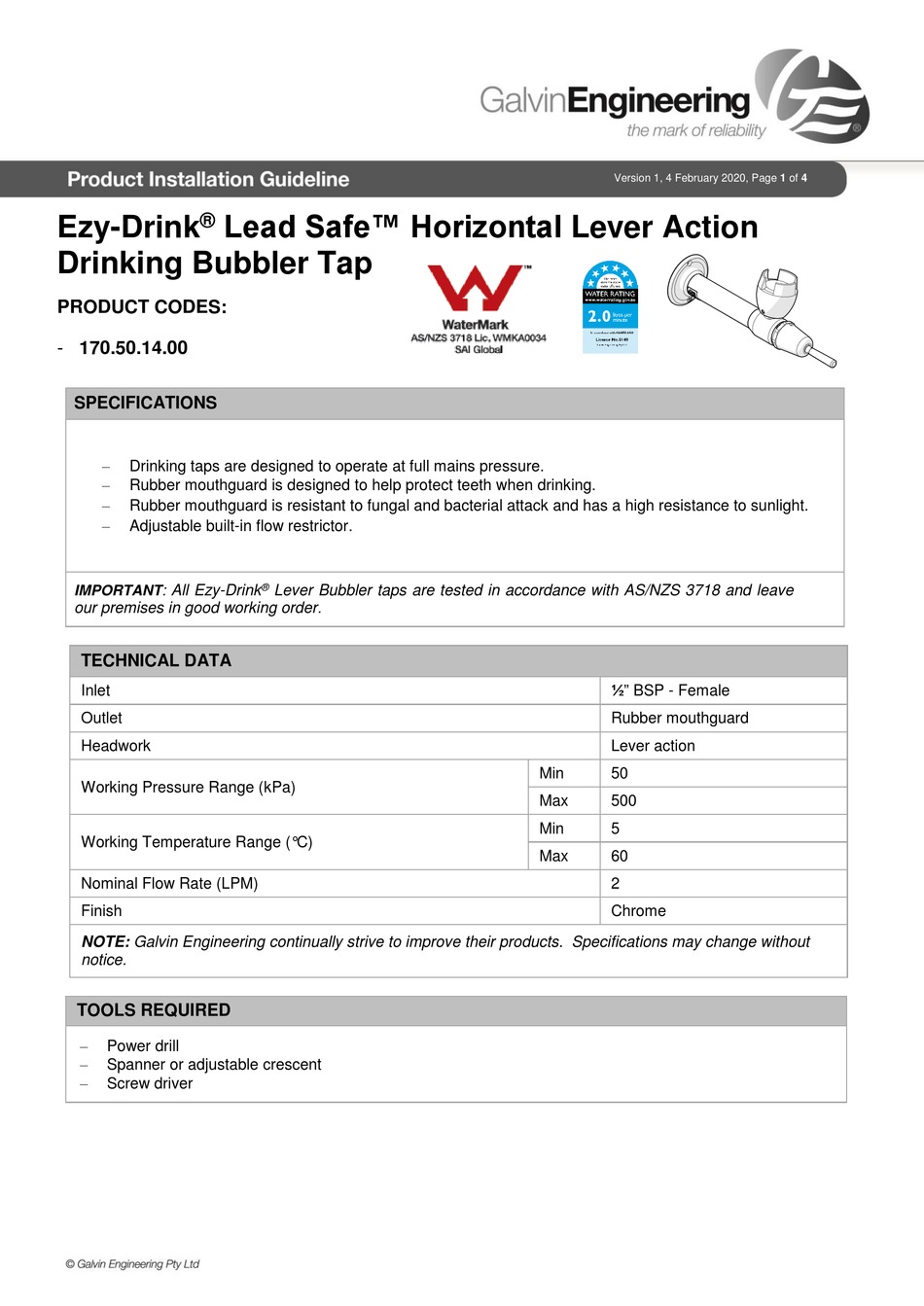

- Page 1 Lever action Working Pressure Range (kPa) Working Temperature Range (°C) Nominal Flow Rate (LPM) Finish Chrome NOTE: Galvin Engineering continually strive to improve their products. Specifications may change without notice. TOOLS REQUIRED Power drill Spanner or adjustable crescent ...
- Page 2 Version 1, 4 February 2020, Page 2 of 4 PRE-INSTALLATION - MOUNTING DETAILS If the mounting holes do not already exist, mark out and drill the holes in the wall/sheet, as shown in rough-in dimensions. Note: Before installation, all lines must be flushed. We recommend that a line strainer be installed prior to drinking taps to eliminate any foreign material.
- Page 3 Version 1, 4 February 2020, Page 3 of 4 BLANKING SCREW 3. Testing Once the drinking tap has been installed and tested for leaks, the water height may be adjusted to suit the available pressure. To adjust water flow 1.
- Page 4 Version 1, 4 February 2020, Page 4 of 4 WARRANTY The warranty set forth herein is given expressly and is the only warranty given by the Galvin Engineering Pty Ltd. With respect to the product, Galvin Engineering Pty Ltd makes no other warranties, express or implied.
