UM11826
FRDMDUALK3664EVB evaluation board
Rev. 1 — 6 September 2022
Document information
Information
Content
Keywords
BMS, TPL, S32K344
Abstract
This document is the user manual for dual MC33664 evaluation board.
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRDMDUALK3664EVB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NXP Semiconductors FRDMDUALK3664EVB

  • Page 1 UM11826 FRDMDUALK3664EVB evaluation board Rev. 1 — 6 September 2022 User manual Document information Information Content Keywords BMS, TPL, S32K344 Abstract This document is the user manual for dual MC33664 evaluation board.
  • Page 2 UM11826 NXP Semiconductors FRDMDUALK3664EVB evaluation board Revision history Date Description 20220906 initial version UM11826 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved. User manual Rev. 1 — 6 September 2022...
  • Page 3: Important Notice

    UM11826 NXP Semiconductors FRDMDUALK3664EVB evaluation board Important notice IMPORTANT NOTICE For engineering development or evaluation purposes only NXP provides the product under the following conditions: This evaluation kit is for use of ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY. It is provided as a sample IC pre-soldered to a printed-circuit board to make it easier to access inputs, outputs and supply terminals.
  • Page 4: Introduction

    NXP Semiconductors FRDMDUALK3664EVB evaluation board Introduction This document is the user manual for the FRDMDUALK3664EVB evaluation board. This document is intended for the engineers involved in the evaluation, design, implementation, and validation of MC33664, isolated network high-speed transceiver. The scope of this document is to provide the user with information to evaluate the MC33664, isolated network high-speed transceiver.
  • Page 5: Getting Ready

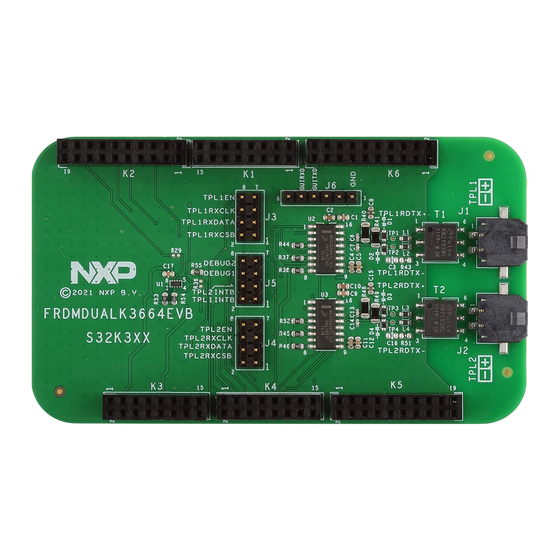

    Getting to know the hardware 6.1 Kit overview The FRDMDUALK3664EVB is a hardware tool for evaluation and development and is ideal for rapid prototyping of an isolated network high-speed transceiver. It can be used to evaluate the features of the MC33664A device.
  • Page 6: Mc33664: Isolated Network High-Speed Transceiver

    UM11826 NXP Semiconductors FRDMDUALK3664EVB evaluation board Figure 2. Evaluation board featured component locations Table 2. Evaluation board component descriptions Name Description MCU interface (K2, K1, K6) interface pin for microcontroller development platform (recommended S32K3x4EVB-Q172) UART (J6) universal asynchronous receiver transmitter (UART) connection (for example,...
  • Page 7: Block Diagram

    UM11826 NXP Semiconductors FRDMDUALK3664EVB evaluation board 6.2.1.2 Block diagram GUITXD UART CONNECTOR GUIRXD CSB0 TPL1TXCSB CSB1 LOGIC TPL2TXCSB CSB2 VCC VIO TPL1TXCSB TPL1EN TPL1INTB TPL1TXSCLK MC33664 INTERFACE TPL1 TPL1TXDATA TRANSFORMER ISOLATED K1 to K6 CONNECTOR ISOLATION HIGH-SPEED TPL1RXCSB TRANSCEIVER TPL1RXSCLK...
  • Page 8: Connectors

    UM11826 NXP Semiconductors FRDMDUALK3664EVB evaluation board Table 3. Modes of operation Device mode EN pin VIO pin Comment Normal The MC33664 operates as a full transceiver. MCU messages transmitted on the SPI_TX emerge on the SPI_RX for the MCU to read.
  • Page 9: Mcu Interface Connectors

    FRDMDUALK3664EVB evaluation board 6.2.2.1.1 TPL bus selection The FRDMDUALK3664EVB provides an option to select dynamically which TPL bus is addressed. Using three signals it is possible to transmit individually on the TPL1 or TPL2 bus, or to transmit simultaneously on both TPL1 and TPL2 bus.
  • Page 10 UM11826 NXP Semiconductors FRDMDUALK3664EVB evaluation board Table 7. Signal routing for S32K3x4EVB-Q172 MCU interface Signal Description Direction MCU signal K3-3 5.0 V IO supply ← K3-9 VCC5 5.0 V supply ← K3-11 ground K3-13 ground K5-12 ground K2-13 ground K6-12 ground...
  • Page 11: Logic Analyzer Interface Connectors

    UM11826 NXP Semiconductors FRDMDUALK3664EVB evaluation board 6.2.2.3 Logic analyzer interface connectors J3, J4, J5 These connectors are intended for software development and debugging purposes. They allow easy access to used signals and to monitor them, for instance, with a logic analyzer or an oscilloscope.
  • Page 12: Compatible Nxp Mcu Development Platforms

    VDD_HV_A = 5 V VDD_HV_B = VDD_HV_A When both boards are connected, the SPI and other signals are directly connected with suitable MCU pins. Power is supplied to the FRDMDUALK3664EVB through the 5.0 V from the S32K3x4EVB. UM11826 All information provided in this document is subject to legal disclaimers.
  • Page 13: Standalone Or Other Microcontroller Platforms

    • VIO must be provided with 3.3 V or 5.0 V depending on the required communication signal levels References FRDMDUALK3664EVB — detailed information on this board, including documentation, downloads, and software and tools http://www.nxp.com/FRDMDUALK3664EVB MC33664 — product information on MC33664, isolated network high-speed transceiver http://www.nxp.com/MC33664...
  • Page 14: Legal Information

    NXP Semiconductors. In no event shall NXP Semiconductors be liable for any indirect, incidental, Evaluation products — This product is provided on an “as is” and “with all punitive, special or consequential damages (including - without limitation - faults”...
  • Page 15 UM11826 NXP Semiconductors FRDMDUALK3664EVB evaluation board NXP — wordmark and logo are trademarks of NXP B.V. 9.3 Trademarks Notice: All referenced brands, product names, service names, and trademarks are the property of their respective owners. UM11826 All information provided in this document is subject to legal disclaimers.
  • Page 16 Evaluation board featured component Fig. 5. TPL chain selection ...........9 locations ............6 Fig. 6. FRDMDUALK3664EVB mounted on top of Fig. 3. Block diagram ........... 7 the S32K3x4EVB-Q172 ........13 UM11826 All information provided in this document is subject to legal disclaimers.
  • Page 17: Table Of Contents

    Getting ready ............5 Kit contents ............5 Additional hardware ........... 5 Getting to know the hardware ......5 Kit overview ............5 6.1.1 FRDMDUALK3664EVB features ....... 5 Kit featured components ........5 6.2.1 MC33664: Isolated network high-speed transceiver ............6 6.2.1.1 General description ..........6 6.2.1.2...
