KTFRDMHB2001FEVMUG
FRDM-HB2001FEVM evaluation board
Rev. 1.0 — 25 May 2016
User guide
1

FRDM-HB2001FEVM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRDM-HB2001FEVM and is the answer not in the manual?

Questions and answers

Summary of Contents for NXP Semiconductors FRDM-HB2001FEVM

  • Page 1: Frdm-Hb2001Fevm

    KTFRDMHB2001FEVMUG FRDM-HB2001FEVM evaluation board Rev. 1.0 — 25 May 2016 User guide FRDM-HB2001FEVM...
  • Page 2: Important Notice

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board Important notice NXP provides the enclosed product(s) under the following conditions: This evaluation kit is intended for use of ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY. It is provided as a sample IC pre-soldered to a printed circuit board to make it easier to access inputs, outputs, and supply terminals.
  • Page 3: Getting Started

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board Getting started 3.1 Kit contents/packing list The FRDM-HB2001FEVM contents includes: • Assembled and tested evaluation board/module in anti-static bag • FRDM-KL25Z • Quick start guide 3.2 Jump start NXP’s analog product development boards provide an easy-to-use platform for evaluating NXP products.
  • Page 4: Getting To Know The Hardware

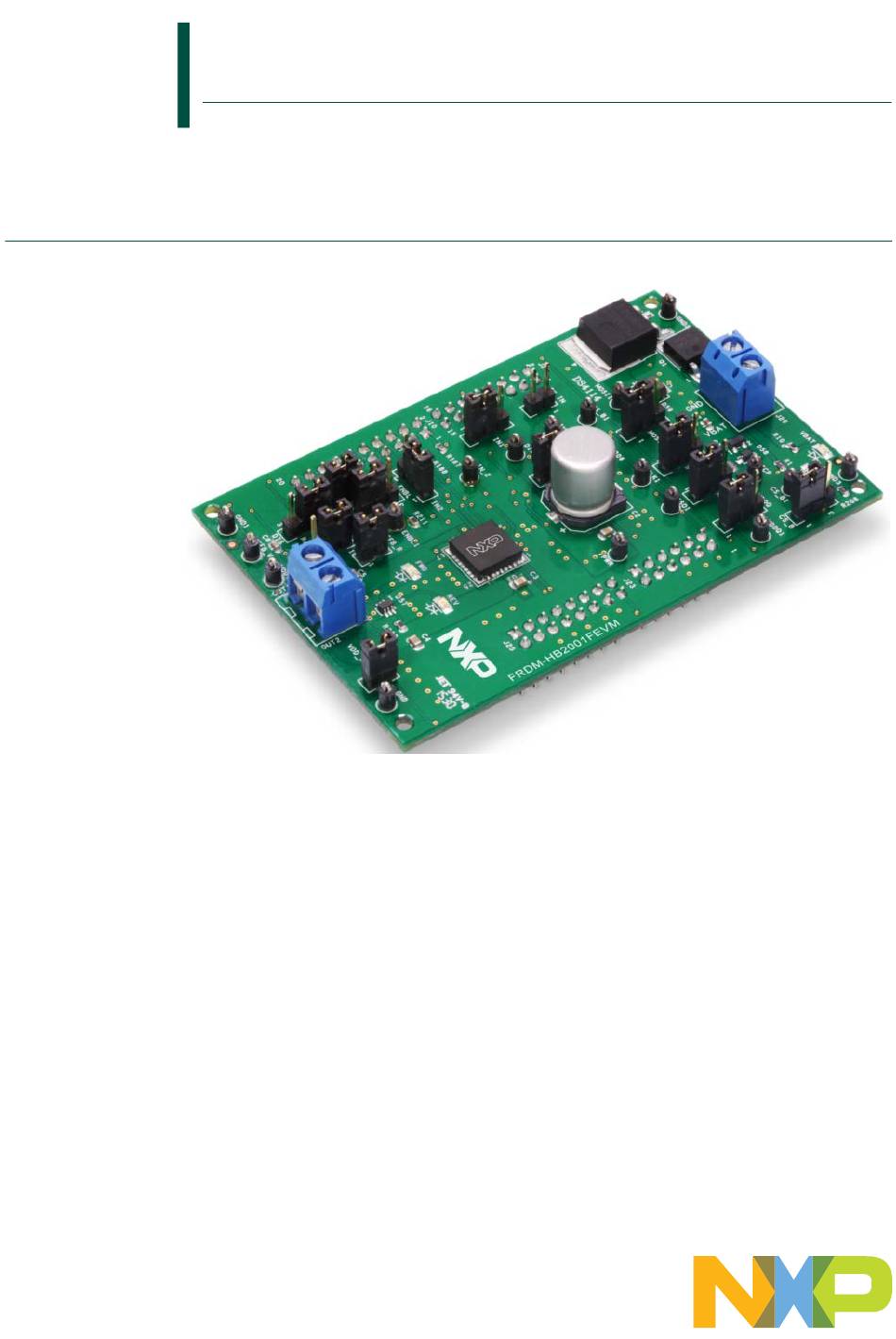

    FRDM-HB2001FEVM evaluation board Getting to know the hardware 4.1 Board overview The FRDM-HB2001FEVM evaluation kit exercises all the functions of the MC33HB2001 H-Bridge device. The parallel input can be easily controlled by lab equipment or any MCU with GPIOs. The board can be used in conjunction with a FRDM-KL25Z board connected to a PC’s USB port.
  • Page 5: Block Diagram

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board 4.3 Block diagram Figure 1. Block diagram 4.3.1 Device features This evaluation board features the following NXP product: KTFRDMHB2001FEVMUG All information provided in this document is subject to legal disclaimers. © NXP B.V. 2016. All rights reserved User guide Rev.
  • Page 6: Modes Of Operation

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board Table 1. Device features Device Description Features MC33HB2001 The 33HB2001 is a monolithic H-Bridge • Advanced diagnostic reporting via a serial peripheral Power IC, enhanced with SPI configurability interface (SPI): charge pump undervoltage on VPWR, and diagnostic capabilities.
  • Page 7: Architecture

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board 4.3.3 Architecture Figure 3. Architecture KTFRDMHB2001FEVMUG All information provided in this document is subject to legal disclaimers. © NXP B.V. 2016. All rights reserved User guide Rev. 1.0 — 25 May 2016 7 / 35...
  • Page 8: Thermal Management

    4.3.4 Thermal management Figure 4. Thermal management 4.4 Board description Figure 5 describes the main elements on the FRDM-HB2001FEVM. KTFRDMHB2001FEVMUG All information provided in this document is subject to legal disclaimers. © NXP B.V. 2016. All rights reserved User guide Rev.
  • Page 9: Led Display

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board Figure 5. Board description Table 2. Board description Number Name Descrioption MC33HB2001 Monolithic H-Bridge Power IC in a robust thermally enhanced 32 lead PQFN package Power and ground Power supply terminal to connect the battery/power supply with the board...
  • Page 10: Jumper Definitions

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board VBAT FS_B Figure 6. LED locations Table 3. LED locations LED ID Description VBAT Green LED, indicates when main/battery supply is connected Green LED, indicates when +5.0 V supply is connected FS_B Red LED, illuminates when the H-Bridge detects a fault...
  • Page 11 KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board ENBL EX_IN CFB_R MOSI SCLK MISO VDD_REG CS_B FS_B VDDQ Figure 7. Jumper definitions Table 4. Jumper locations Name Signal Jumper Connection position 1−2 IN1 control through MCU parallel output on J10 Pin 1 (DATA0) 2−3...
  • Page 12: Input Signal Definitions

    Open IN1 and IN2 external inputs The FRDM-HB2001FEVM, in conjunction with a FRDM-KL25Z board (shipped with the kit), can evaluate the design by means of a GUI, any MCU with GPIO or with simple lab equipment. A FRDM-KL25Z-compatible GUI and MCU program are available online at the following link: http://www.nxp.com/FRDM-HB2001FEVM.
  • Page 13: Test Point Definitions

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board Output name Description Current mirror output for real time load current monitoring MISO Master input slave output for SPI 4.4.5 Test point definitions The following test points provide access to various signals to and from the board.
  • Page 14: Screw Terminal Connections

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board Test point name Signal name Description FSB1 Fault status monitoring pin VDD1 supply for the part CS_B1 CS_B Chip select bar SCLK1 SCLK Clock for SPI MOSI1 MOSI Master output slave input signal MISO1...
  • Page 15: Frdm-Kl25Z Freedom Spi Dongle

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board FRDM-KL25Z Freedom SPI dongle The NXP Freedom development platform is a set of software and hardware tools supporting evaluation and development. It is ideal for rapid prototyping of microcontroller- based applications. The NXP Freedom KL25Z hardware, FRDM-KL25Z, is a simple, yet sophisticated design featuring a Kinetis L Series microcontroller, the industry's first ®...
  • Page 16: Connecting The Frdm-Kl25Z To The Board

    DC brushed motor and to drive the evaluation board inputs in order to operate the motor via the GPIOs and SPI pins. The FRDM-KL25Z also monitors the SPI registers, thereby facilitating the use of safety and advanced diagnostic functions. The FRDM-HB2001FEVM connects to the FRDM-KL25Z using the four dual row ™ Arduino...
  • Page 17 KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board Figure 12. FRDM-KL25Z to FRDM-HB2001FEVM connections Table 9. FRDM-HB2001FEVM to FRDM-KL25Z connections FRDM-HB2001FEVM FRDM-KL25Z Pin hardware name Description Header Header FRDM-HB2001FEVM FRDM-KL25Z PTC7 No Connection PTA1 No Connection PTC0 No Connection PTA2 No Connection...
  • Page 18 KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board FRDM-HB2001FEVM FRDM-KL25Z Pin hardware name Description Header Header FRDM-HB2001FEVM FRDM-KL25Z PTC10 Not Connected PTC8 No Connection PTC11 Not Connected PTC9 No Connection DATA0/IN1 PTC12 IN1 signal for the H- Bridge PTA13 No Connection DATA1/IN2...
  • Page 19: Installing The Software And Setting Up The Hardware

    FRDM-KL25Z board or a function generator. Caution When using the FRDM-HB2001FEVM, make sure that the maximum motor supply voltage (VPWR) stays within the 5.0 V to 40 V range. Operating outside this range may cause damage to the board.
  • Page 20: Step-By-Step Instructions For Setting Up The Hardware For Use With A Function Generator

    6.1.2 Step-by-step instructions for setting up the hardware for use with a function generator This section describes how to configure the FRDM-HB2001FEVM for use with a function generator. The same connections apply if the board is connected to a microcontroller instead of a function generator.
  • Page 21: Installing And Using Spigen

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board Figure 14. FRDM-HB2001FEVM configured for use with a Function Generator 6.2 Installing and using SPIGen The latest version of SPIGen supports the MC33HB2001 and is designed to run on any Windows 8, Windows 7, Vista, or XP-based operating system. To install the software, do the following: 1.
  • Page 22 KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board 5. To access the HB2000/HB2001 tab in the SPIGen window, expand the HB2000/ HB2001 folder in the Device View. Then click Registers icon. KTFRDMHB2001FEVMUG All information provided in this document is subject to legal disclaimers.
  • Page 23 KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board If the pre-programmed code on FRDM-KL25Z is accidentally erased, download "UsbSpiDongleKL25Z_SPIDrive_v512.srec" from the following link: www.nxp.com/ Usb-Spi-Dongle-firmware-KL25Z-HB2000-1. 6. Reading all the SPI Registers displays the following default status. KTFRDMHB2001FEVMUG All information provided in this document is subject to legal disclaimers.
  • Page 24: Spi Control

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board 6.2.1 SPI control Figure 15. SPI control description Table 10. SPI control description Name Description Click the read button on top of each register to read the Read content of each register. Click individual bits of any register and then press the Write corresponding write button to write into the register.
  • Page 25: Parallel Control

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board 6.2.2 Parallel control Figure 16. Parallel control description Direction: • Forward: Current flowing through OUT1 to OUT2 • Reverse: Current flowing through OUT2 to OUT1 Recirculation: • High-side: Freewheel-High (both high-side FETs turned on) during PWMing •...
  • Page 26 KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board Stop: • Press Stop to deactivate the outputs Current Feedback: • Shows current through the high-side FET using the current recopy feature Status Fault: • Shows any fault condition in Sleep mode Table 11. Logic behind direction control with High-side versus Low-side recirculation...
  • Page 27: Schematic

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board Schematic Figure 17. Evaluation board schematic KTFRDMHB2001FEVMUG All information provided in this document is subject to legal disclaimers. © NXP B.V. 2016. All rights reserved User guide Rev. 1.0 — 25 May 2016 27 / 35...
  • Page 28: Board Layout

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board Board layout Figure 18. Silkscreen KTFRDMHB2001FEVMUG All information provided in this document is subject to legal disclaimers. © NXP B.V. 2016. All rights reserved User guide Rev. 1.0 — 25 May 2016 28 / 35...
  • Page 29: Bill Of Materials

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board Bill of materials Table 12. Bill of materials Item Schematic Value Description Part number Assy opt label Active components IC DRV H-BRIDGE MOTOR 3.0 A 5.0 to 28 V MC33HB2001FK SOIC32 – NXP IC VREG 5.0 V 1.0 A 5.0 to 18 V D2PAK – ON...
  • Page 30: Accessory Item Bill Of Materials

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board Item Schematic Value Description Part number Assy opt label IN1, TEST POINT BLACK 40 MIL DRILL 180 MIL 5001 GND1,IN2, TH 109L GND2, GND3, VPWR, VDDQ, VDD, SCLK, MOSI, MISO, GND, FS_B, ENBL, DIS, CS_B...
  • Page 31: Revision History

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board 12 Revision history Revision Date Description of changes 5/2016 Initial release 13 Contact information Visit http://www.nxp.com/support for a list of phone numbers within your region. Visit http://www.nxp.com/warranty to submit a request for tool warranty.
  • Page 32: Legal Information

    NXP does not modifications or additions. NXP Semiconductors does not give any convey any license under its patent rights nor the rights of others. NXP sells...
  • Page 33 KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board Tables Tab. 1. Device features ..........6 Tab. 9. FRDM-HB2001FEVM FRDM-KL25Z Tab. 2. Board description ..........9 connections ............. 17 Tab. 3. LED locations ..........10 Tab. 10. SPI control description ........24 Tab. 4.
  • Page 34 Fig. 10. FRDM-KL25Z ..........15 Fig. 18. Silkscreen ............28 Fig. 11. Connecting the FRDM-HB2001FEVM to the FRDM-KL25Z ..........16 KTFRDMHB2001FEVMUG All information provided in this document is subject to legal disclaimers. © NXP B.V. 2016. All rights reserved User guide Rev.
  • Page 35: Table Of Contents

    KTFRDMHB2001FEVMUG NXP Semiconductors FRDM-HB2001FEVM evaluation board Contents FRDM-HB2001FEVM ..........1 Important notice ..........2 Getting started ............ 3 Kit contents/packing list ........3 Jump start ............3 Required equipment .......... 3 System requirements .........3 Getting to know the hardware ......4 Board overview ..........4 Board features ...........
