NXP Semiconductors Freedom FRDM-K32L3A6 User Manual

NXP Semiconductors
User's Guide

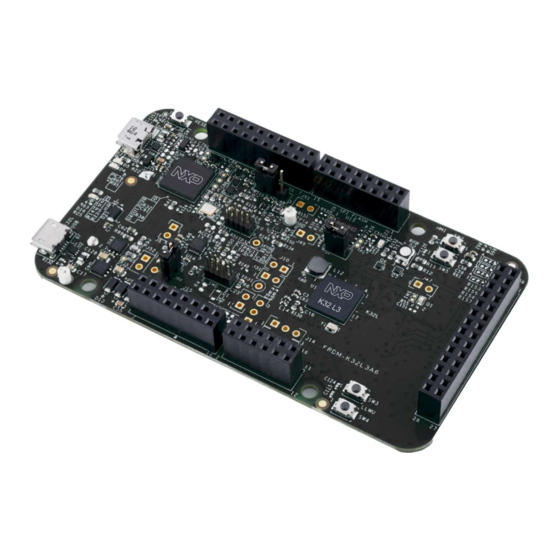

FRDM-K32L3A6 Freedom Development
Board

1. Introduction

This guide describes the hardware for the FRDM-
K32L3A6 Freedom Development Board. The FRDM-
K32L3A6 freedom development board is a small, low-
power, and cost-effective evaluation and development
board for application prototyping and demonstration of the
K32 L3 family of devices. These evaluation boards offer
easy-to-use mass-storage-device mode flash programmer,
a virtual serial port, and standard programming and run-
control capabilities.
The K32L3A6 is an ultra-low power solution for
embedded products requiring extended battery life.
© 2017 NXP B.V.
Arrow.com.
Downloaded from
Document Number: FRDMK32L3A6ZUG
Contents
1. Introduction ........................................................................ 1
2 Overview and description ................................................... 2
2.1 Overview ................................................................. 2
2.2 Feature description .................................................. 3
2.3 OpenSDA serial and debug ..................................... 5
3 Functional description ........................................................ 6
3.1 Clocks ..................................................................... 6
3.2 Power management ................................................. 6
3.3 Universal Serial Bus (USB) .................................... 8
3.4 Secure Digital Host Controller (SDHC) .................. 9
3.5 Serial flash memory ................................................ 9
3.6 Accelerometer + Magnetometer Combo Sensor .... 10
3.7 Visible light sensor ................................................ 11
3.8 User application LEDs .......................................... 12
3.9 User buttons .......................................................... 12
4 Headers and jumpers ........................................................ 14
4.1 Arduino compatible I/O headers ........................... 14
4.2 Jumper table .......................................................... 24
5 References ........................................................................ 26
6 Appendix A ...................................................................... 26
7 Revision history ............................................................... 26
Rev. B0, 09/2019
