CTA PAD-WDM Instruction Manual

Removing the Mount Stand from the Mounting Base
Twist the mount stand
off of the base
Slide off the plate.
Remove the plate off of the Mounting Once the wedges of the Mount Stand
Base and twist the Mount Stand clockwise. align with the grooves of the Mounting
Base, lift to remove the Mount Stand
from the Mounting Base.
Installing the Mount Stand to the Mounting Base
Note: You want the base of
the Mounting Stand to twist,
not just the Mounting Stand itself.
Align the wedges of the Mount Stand with the
Slide the plate onto the Mounting Base.
grooves of the Mounting Base and set the Mount
Stand into the Mounting Base. Then, twist the Mount
Stand to your left until you feel resistance and hold it.
Adjusting the Mount
By twisting the nut that attaches the mount to the
stand, you can adjust how loose or tight the
rotation mechanic is for the mount.
Pull on the tab to
cover the hole.
Slide on the plate.
Once the Mount Stand is removed, slide
the plate back on and pull the tab to
extend a circular cover for the hole.
Note: The plate will only
completely slide on if the
Mount Stand has been
thoroughly twisted into place.
Once the Mounting Stand is
installed (as shown above), you
may load your tablet.
If you plan on using the Mounting Stand without installing the Mounting Base
to a surface, please be careful adjusting the arm extension. Overextension of
the arm or weight imbalances with heavier tablets will cause the product and
your device to fall over, resulting in possible damage.

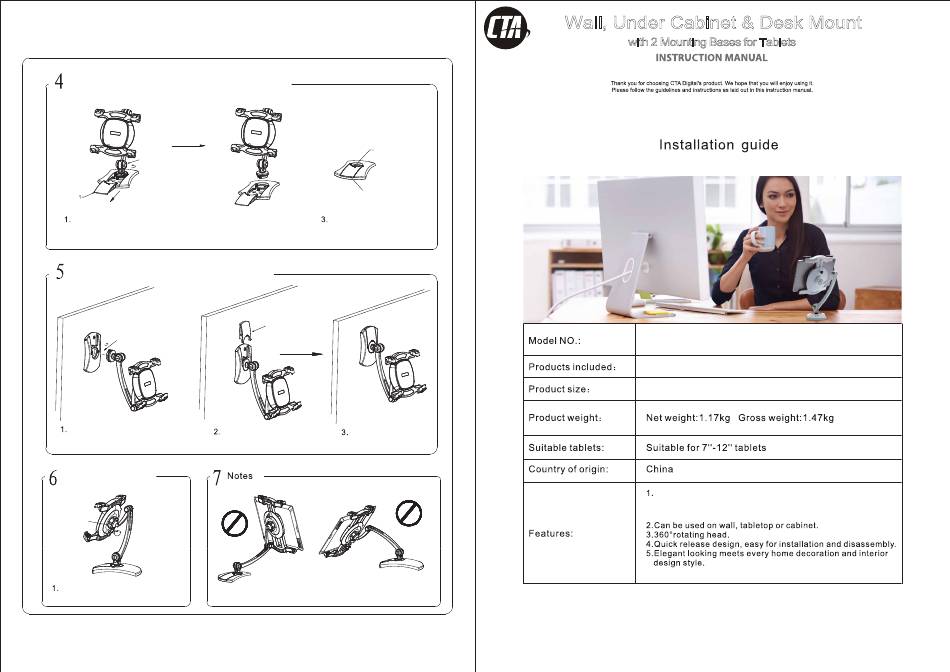

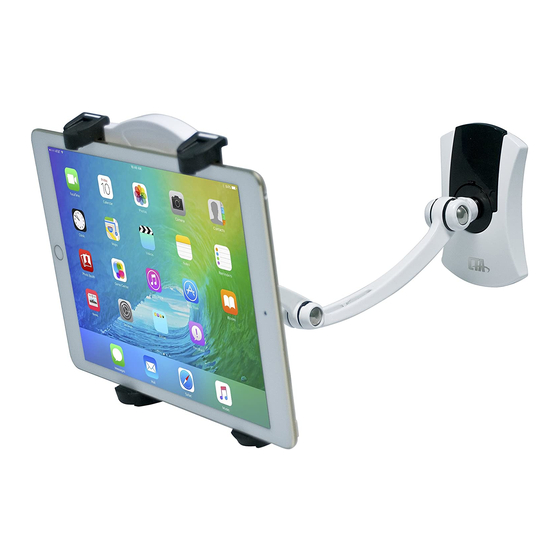

Wall, Under Cabinet & Desk Mount
with 2 Mounting Bases for Tablets
PAD-WDM
PAD-WDM
(1) Mount Stand (2) Mounting Bases (6) Screws (6) Anchors
Maximum Height: 16.38"
Compatible with tablets ranging 4 – 9 inches
in width, such as the Samsung Galaxy Tab S,
iPad Mini 4 or Google Nexus 9
