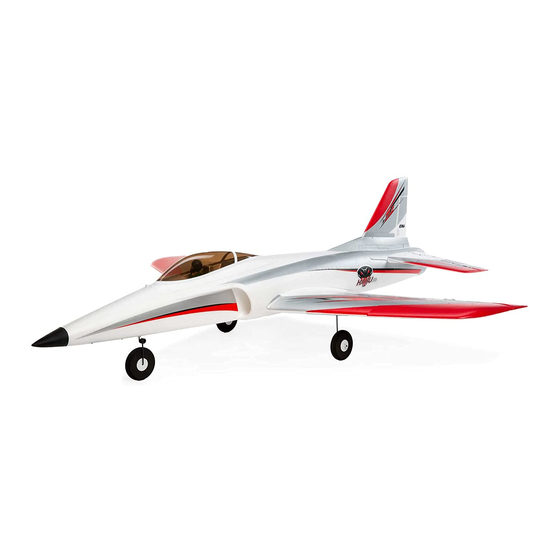

Horizon Hobby E-Flite Habu STS Instruction Manual

Horizon Hobby E-Flite Habu STS Instruction Manual

70mm edf rtf basic
Hide thumbs Also See for E-Flite Habu STS:

Advertisement

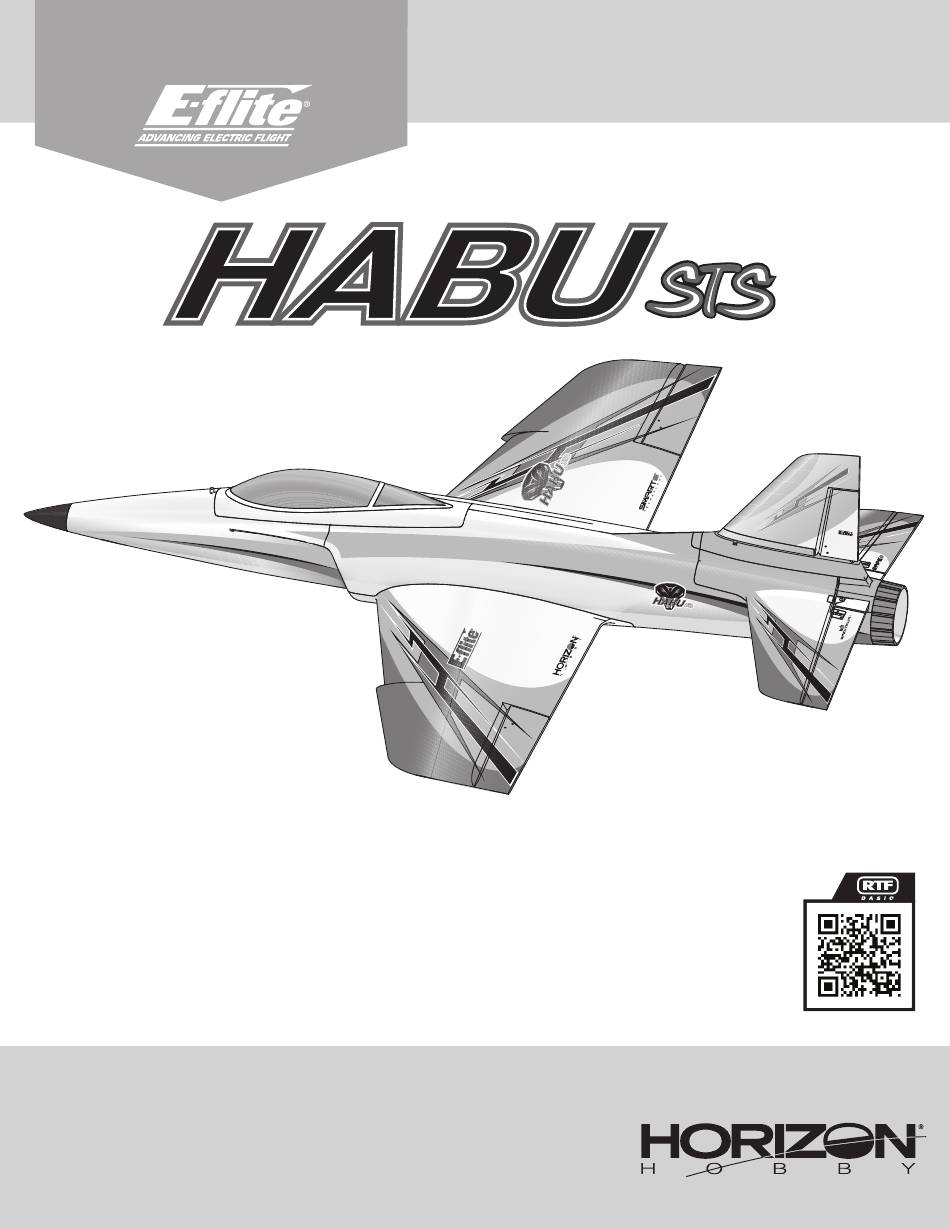

Instruction Manual
Scan the QR code and select the Manuals and Support quick links from the
product page for the most up-to-date manual information.
Bedienungsanleitung
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Manuel d'utilisation
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
Manuale di Istruzioni
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
EFL015001
337506
Created 03/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-Flite Habu STS and is the answer not in the manual?

Questions and answers

Summary of Contents for Horizon Hobby E-Flite Habu STS

  • Page 1 Instruction Manual Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Bedienungsanleitung Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher. Manuel d’utilisation Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la Manuale di Istruzioni...
  • Page 2 This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance.
  • Page 3: Table Of Contents

    Registration Specifications Wingspan 40.5" (1033mm) Register your product today to join our mailing list and keep Length 45" (1140mm) up to date with product updates, offers and E-Flite news. ® Without Battery: 2.9lbs (1316g) Weight With Recommended 3S 4000mAh Flight Battery: 3.4lbs (1550g) Included Equipment Transmitter...
  • Page 4: Aircraft Components

    Aircraft Components Typical Control Components Control Horn Servo Arm Retaining Sleeve Pushrod Servo Clevis Nose Gear Assembly Nose Gear Servo (SPMSA382) Canopy/Hatch Flight Battery Flight Controller Receiver (Rx) Main Landing Gear Electronic Speed Control (ESC) Aileron Servo (SPMSA381) Aileron Servo (SPMSA381) Motor Electric Ducted Fan (EDF) Unit Aileron...
  • Page 5: Aircraft Assembly

    Aircraft Assembly We recommend reading each section of this manual before proceeding with assembly per the steps outlined. We also recommend watching the entire assembly video by scanning this QR code or using this URL: M3 x 16mm (2) www.horizonhobby.cc/HabuSTSassembly. M3 x 25mm (2) Assembly Video Wing Installation...
  • Page 6 Main Gear Installation We recommend watching the “Main Gear Installation” chapter/section of the assembly video by scanning this QR code or using this URL: www.horizonhobby.cc/HabuSTSassembly. Assembly Video 1. Insert a main gear strut (A) into the hole in either the right or left landing gear plate on the bottom of the wing.
  • Page 7 Vertical Stabilizer Installation We recommend watching the “Vertical Stabilizer Installation” chapter/section of the assembly video by scanning this QR code or using this URL: www.horizonhobby.cc/HabuSTSassembly. Assembly Video 1. Manually position the rudder servo arm to point to the right side of the aircraft, as shown.
  • Page 8: Spektrum Dxs Transmitter

    Spektrum DXS Transmitter Install the Transmitter Batteries 1. Remove the battery cover. 2. Install the included four AA batteries, noting proper polarity. 3. Reinstall the battery cover. Low Battery Alarm When the transmitter battery voltage drops below 4.7 volts, an alarm sounds and the voltage LEDs flash.
  • Page 9: Flight Battery Installation, Safe System And Electronic Speed Control (Esc) Arming

    Flight Battery Voltage Indicator The included DXS transmitter is equipped with a flight battery voltage indicator feature that works with compatible Smart technology-equipped receivers, flight controllers and telemetry-capable ESCs. This Smart technology feature gives a visual representation of the approximate flight battery voltage/power remaining via the four LED indicators on the transmitter.
  • Page 10: Center Of Gravity (Cg)

    Center of Gravity (CG) We recommend watching the “Center of Gravity” chapter/ section of the assembly video by scanning this QR code or using this URL: www.horizonhobby.cc/HabuSTSassembly. 80 mm back from the leading edge at the wing root Assembly Video CAUTION: Never fly the aircraft without ensuring the center of gravity is within the acceptable range.
  • Page 11: Control Direction Test

    DXS transmitter included with the RTF Basic version to learn and practice the basics of flying. Featuring six popular Horizon Hobby trainer aircraft -- including the Habu STS 70mm EDF jet -- and built-in Virtual Flight Instructor...
  • Page 12: Choose A Flying Field

    HOLD attempt to fly. Refer to the Warranty and Service Contact Information table at the end of the this manual to contact Horizon Hobby product support. 7. When the range check is successfully completed, release the bind button to exit range check mode.
  • Page 13: Flight Control

    Flight Control IMPORTANT: Even though SAFE technology is a very helpful tool, the aircraft still needs to be flown manually. If incorrect input is given at lower altitudes or at slower speeds, the aircraft can crash. Study these control inputs and the aircraft Elevator/ Throttle/ response to each carefully before attempting your first flight.
  • Page 14: Sensor Assisted Flight Envelope (Safe) Technology Flight Modes

    Sensor Assisted Flight Envelope (SAFE) Technology Flight Modes At any time during a flight you can switch between Beginner, Intermediate and Flight Mode Switch Experienced flight modes or use panic recovery to get your aircraft to a safe flying (switch B) attitude.
  • Page 15: Preflight Checklist

    Preflight Checklist Find a safe open area to fly. Perform a radio system range test. Charge the flight battery. Plan flight for flying field conditions. Set a flight time for: Install a fully charged flight battery in the aircraft. 4-6 minutes using a 3000mAh 3S battery pack. Make sure all linkages move freely.
  • Page 16 Landing 1. Reduce the throttle to around 50% to slow the airspeed. 2. Fly the aircraft downwind past the end of the runway. 3. Turn the aircraft into the wind and line the aircraft up with the runway center line. Wind 4.
  • Page 17: Trimming The Aircraft

    Trimming the Aircraft Adjusting Trim in Flight Aircraft Drift Trim Required If your aircraft does not fly straight and level at half throttle with the sticks at neutral, fly into the wind and adjust the trim sliders as indicated in the table until the aircraft maintains a reasonably straight and level flight path.
  • Page 18: Post Flight

    Once properly bound, the receiver and Flight Controller transmitter will retain their bind for future flights. If you encounter problems, refer to the troubleshooting guide. If necessary, contact the appropriate Horizon Hobby product support office. Bind Button HOLD HOLD...
  • Page 19: Flight Training

    Flight Training To the new pilot: This aircraft is easy to fly and helps you apply beginner skills to flying; however, we recommend you get help from a qualified flight instructor for your first radio Trainer Button controlled flights. Some model flying clubs provide flight training at their flying fields.
  • Page 20: Optional Landing Assist Sensor (Las) Upgrade

    Optional Landing Assist Sensor (LAS) Upgrade The Habu STS is upgradable with the addition of the optional LAS module (SPMA3180, not included) this allows the advanced SAFE features to be combined with a Landing Assist Sensor (LAS) for smoother gentler landings. IMPORTANT: For best results when using LAS, land on grass surfaces or a light colored surface, such as light colored concrete.
  • Page 21: Optional Transmitter Setup

    Optional Transmitter Setup To use a Spektrum transmitter other than the included DXS, use the setup table NX Series Transmitter Setup which corresponds to your transmitter series, DX, NX or iX series, to program the 1. Power ON your transmitter, click on scroll wheel, roll to System Setup and transmitter.
  • Page 22: Service And Repairs

    Smart Technology Electronic Speed Control (ESC) The Habu STS is equipped with an exclusive Smart technology electronic speed control that can provide a variety of real-time power system related telemetry data RPM: while you fly, including motor RPM, current, battery voltage and more to compatible Spektrum AirWare equipped transmitters.
  • Page 23 Factory Settings for the Control Horns and Servo Arms Elevator Ailerons Rudder Nose Gear The illustration shows recommended hole settings in the servo arms and control horns.
  • Page 24: As3X ® System Trouble Shooting Guide

    AS3X System Trouble Shooting Guide ® Problem Possible Cause Solution If you need to adjust the trim more than 8 clicks, return the trim to neutral Trim is not at neutral and manually adjust the clevis to center the trim Trim change when flight mode is switched Sub-Trim is not at neutral Do not use Sub-Trim.
  • Page 25: Replacement Parts

    Replacement Parts Optional Parts Part # Description Part # Description EFL01551 Fuselage, Painted: Habu STS SPMA3180 Landing Assist Sensor (LAS) EFL01552 Wing, Painted: Habu STS SPMR6775 NX6 6 Ch Transmitter Only EFL01553 Horizontal Stabilizer: Habu STS SPMX40004S30 4000mAh 4S 14.8V Smart 30C; IC3 EFL01554 Landing Gear Set: Habu STS SPMXC1080...
  • Page 26: Important Federal Aviation Administration (Faa) Information

    Important Federal Aviation Administration (FAA) Information Use the QR code below to learn more about the Recreational UAS Safety Test If your model aircraft weighs more than .55lbs or 250 grams, you are required by (TRUST), as was introduced by the 2018 FAA Reauthorization Bill. This free test is the FAA to register as a recreational flyer and apply your registration number to the required by the FAA for all recreational flyers in the United States.
  • Page 27: Limited Warranty

    Product, (iv) attempted service by anyone other Service Request submission process found on our website or call Horizon to obtain a than a Horizon Hobby authorized service center, (v) Product not purchased from an au- Return Merchandise Authorization (RMA) number. Pack the Product securely using a thorized Horizon dealer, (vi) Product not compliant with applicable technical regulations, shipping carton.
  • Page 28: Fcc Information

    Compliance Information for the European Union EU Compliance Statement: EU Manufacturer of Record: EFL Habu STS EDF RTF Basic (EFL015001): Hereby, Horizon Hobby, Horizon Hobby, LLC LLC declares that the device is in compliance with the following: EU 2904 Research Road Radio Equipment Directive 2014/53/EU;...
  • Page 29 ©2022 Horizon Hobby, LLC. E-flite, Plug-N-Play, Bind-N-Fly, BNF, the BNF logo, DSM, DSM2, DSMX, Spektrum AirWare, EC3, IC3, AS3X, SAFE, the SAFE logo, ModelMatch, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
