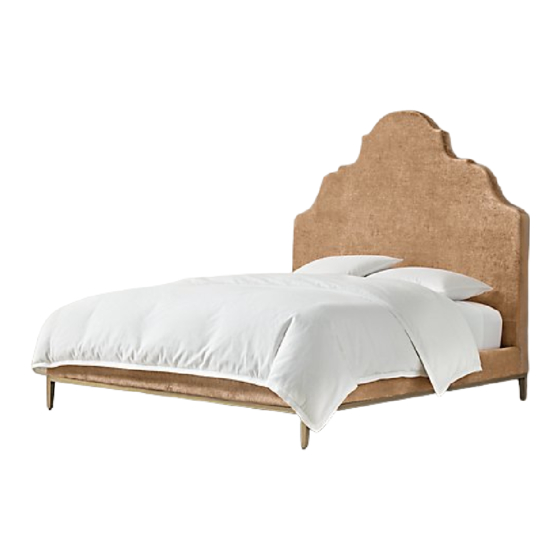

CAMILLA ARCHED QUEEN BED - ASSEMBLY INSTRUCTIONS

PARTS INCLUDED

A [1] Headboard
B [2] Side Rail
C [1] Footboard
D [1] Slat Roll
E [1] Center Support Slat
F [1] Center Support Slat Foot (with adjustable glide)

TOOLS NEEDED

Phillips-head Screwdriver (not included)
ASSEMBLY INSTRUCTIONS
Bed must be assembled by at least two people.
Please read instructions carefully before assembling bed.
Use the above parts and hardware list to identify each component.
Keep all packing materials until assembly is complete to avoid loss of smaller parts.
1. Stand the Headboard (A) upright and attach Side Rails (B),
attach the Footboard (C), then tighten with Allen Head Bolt (2) & Allen Key (6), as shown in Diagram I.
2.
Lock the Headboard (A) & Footboard (C) with Thread Rod (8), Curved Washers (9), Lock Washers (10) and
Nuts (11), then tighten with Spanner Wrench (12), as shown in Diangram II.
3.
Attach the Center Support Slat Foot (F) to the Center Support Slat (E), as shown in Diagram III.
4.
tighten with Allen Head Bolt (4) & Allen Key (1), as shown in Diagram IV.
5.
Place the Slat Roll (D) into the cleats on the inside of the Side Rails (B).
Screw the ends of the slats to the cleats using Screws (5), as shown in Diagram V.

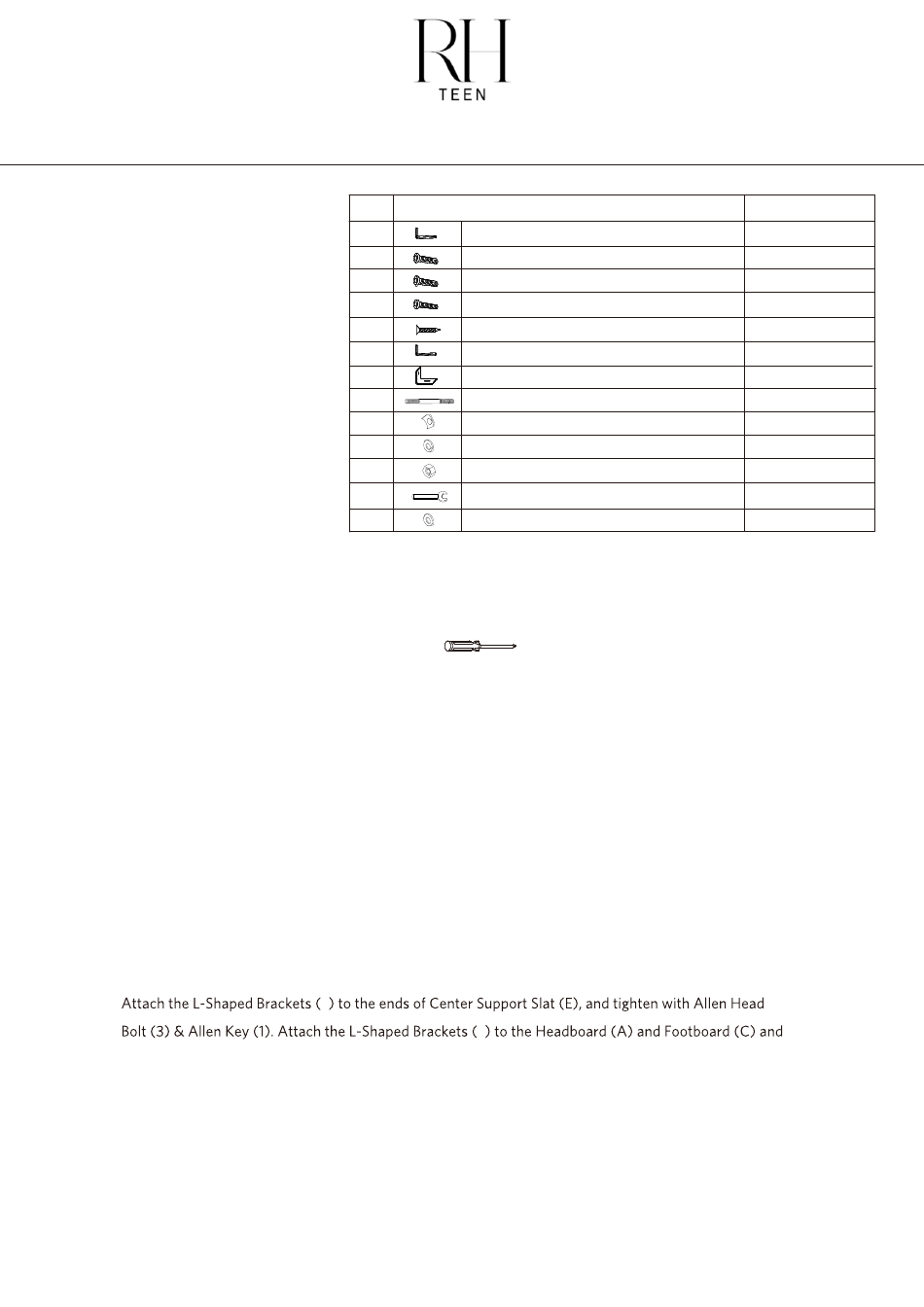

NO.
1
Allen Head Bolt (0.6cm Dia x1.5cm Length)
2
3 Allen Head Bolt (0.6cm Dia x 3cm Length)
4 Allen Head Bolt (0.8cm Dia x 3cm Length)
5
6
7
8
Thread Rod (0.8cm Diax11.5cm
9
10
11
12
13
7
7
Page 1 of 2
DESCRIPTION
Allen Key (0.5cm Dia)
Screw (4cm)
Allen Key
(0.4cm Dia)
L-Shaped Bracket
Curved Washer
Lock Washer
Nut
Spanner Wrench
Washer
repeat the same proceduce to
Qty
1 Pc
8 Pcs
2 Pcs
2 Pcs
32Pcs
1 Pc
2 Pcs
) 4 Pcs
Length
4 Pcs
4 Pcs
4 Pcs
1 Pc
2 Pcs
