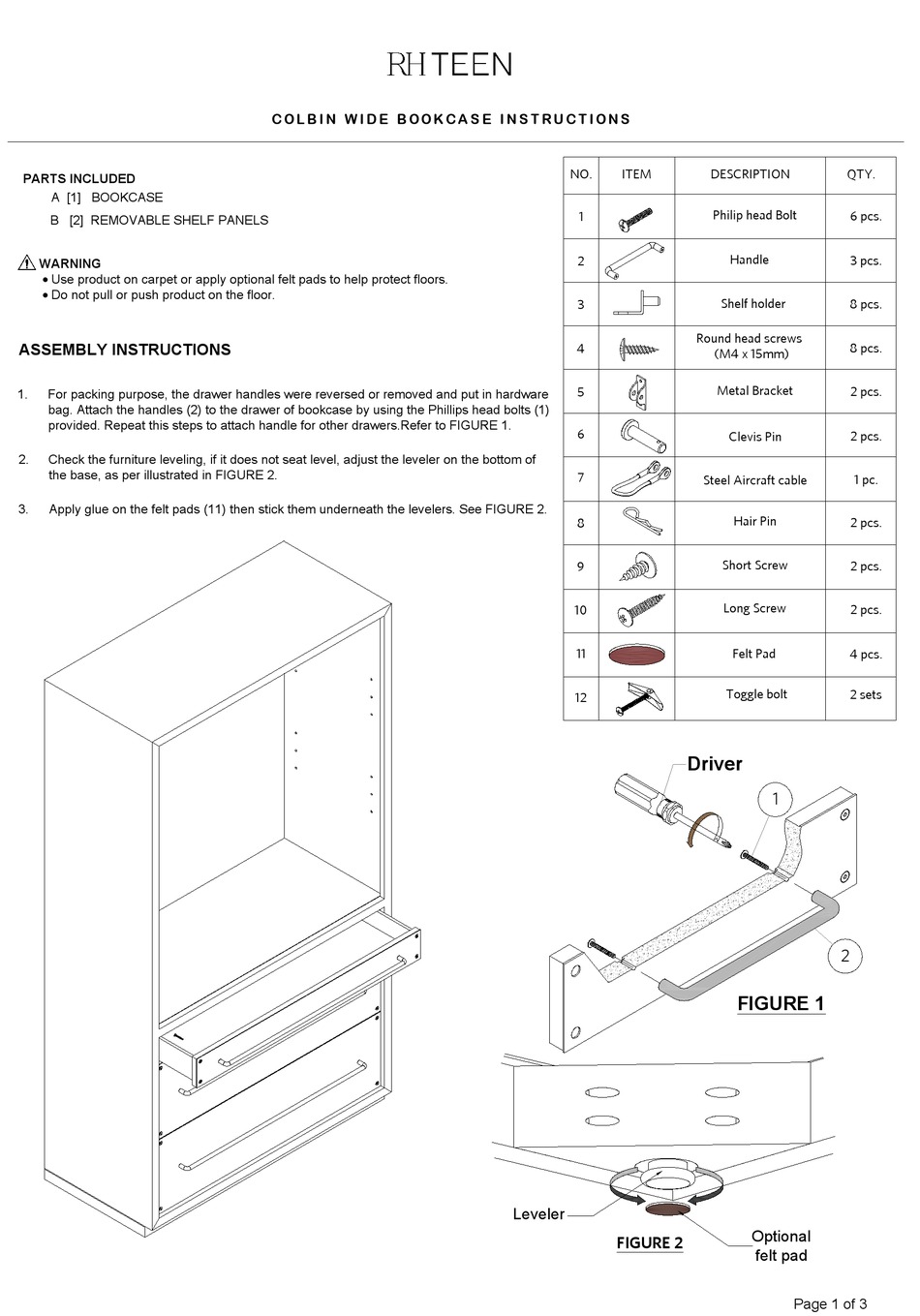

RH Teen COLBIN WIDE BOOKCASE Instructions

PARTS INCLUDED
A [1] BOOKCASE
B [2] REMOVABLE SHELF PANELS
WARNING

Use product on carpet or apply optional felt pads to help protect floors.

Do not pull or push product on the floor.
ASSEMBLY INSTRUCTIONS
1. For packing purpose, the drawer handles were reversed or removed and put in hardware
bag. Attach the handles (2) to the drawer of bookcase by using the Phillips head bolts (1)
provided. Repeat this steps to attach handle for other drawers.Refer to FIGURE 1.
2. Check the furniture leveling, if it does not seat level, adjust the leveler on the bottom of
the base, as per illustrated in FIGURE 2.
3. Apply glue on the felt pads (11) then stick them underneath the levelers. See FIGURE 2.
C O L B I N W I D E B O O K C A S E I N S T R U C T I O N S
NO. ITEM
1
2
3
4
5
6
7
8
9
10
11
12
Leveler
FIGURE 2
DESCRIPTION QTY.
Philip head Bolt
6 pcs.
Handle
3 pcs.
Shelf holder
8 pcs.
Round head screws
8 pcs.
(M4 x 15mm)
Metal Bracket
2 pcs.
Clevis Pin 2 pcs.
Steel Aircraft cable 1 pc.
Hair Pin
2 pcs.
Short Screw
2 pcs.
Long Screw
2 pcs.
Felt Pad
4 pcs.
Toggle bolt
2 sets
Driver
1
2
FIGURE 1
Optional
felt pad
Page 1 of 3
