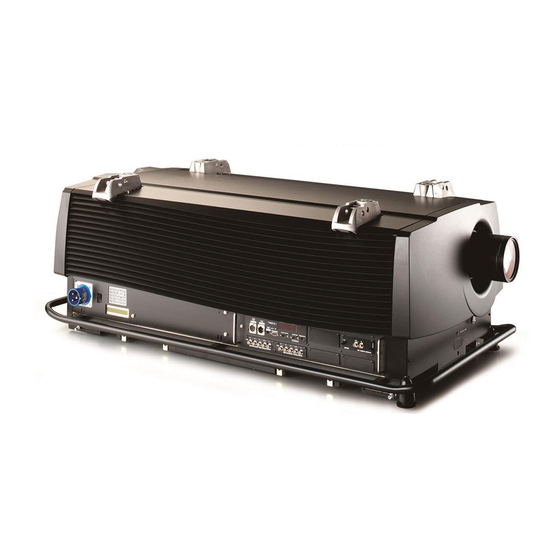

BARCO PROJECTION SYSTEMS
OWNER'S MANUAL
ELM
R12
R9001490
Rev. :
03
Art. No. :
R5976072

Advertisement

Table of Contents
loading

Related Manuals for Barco ELM R12

Summary of Contents for Barco ELM R12

  • Page 1 BARCO PROJECTION SYSTEMS R9001490 OWNER'S MANUAL Date : Rev. : Art. No. : 29082000 R5976072 Downloaded from ProjectorsManual.com Manuals...
  • Page 2 All rights reserved. Trademarks are the rights of their respective owners. BARCO n.v./Projection Systems Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visite Barco at the web : http://www.barco.com Printed in Belgium Downloaded from ProjectorsManual.com Manuals...

  • Page 3: Table Of Contents

    Table of Contents TABLE OF CONTENTS TABLE OF CONTENTS ......................I-1 SAFETY INSTRUCTION RELATED TO ELM PROJECTORS ........... 1-1 Warnings ................................ 1-1 Federal Communication Commission ......................1-1 Note ................................1-1 PACKAGING AND DIMENSIONS ..................2-1 Projector Packaging ............................2-1 Lamp Packaging ............................. 2-2 Lens Packaging ..............................
  • Page 4 Table of Contents CONNECTIONS ........................4-1 Power Connection to Projector ........................4-1 Input Source Connection ..........................4-3 Video/S-video Input Module ..........................4-7 RGB Analog Input Module..........................4-9 Component Input Module..........................4-11 RGB3S / RG3sB Input Module........................4-12 HD SDI Digital Input (slot 5 &...
  • Page 5 Table of Contents START UP OF THE ADJUSTMENT MODE ................ 6-1 Adjustment Mode ............................6-1 RANDOM ACCESS ADJUSTMENT MODE ................ 7-1 Random Access Mode ........................... 7-1 Picture Service ............................... 7-2 Load File ................................. 7-3 Edit File ................................7-4 Rename a file ..............................7-6 Copy a file ..............................
  • Page 6 Table of Contents Geometry ..............................7-13 Shift ................................7-13 Side Keystone .............................. 7-14 Size ................................7-14 Blanking ............................... 7-15 Aspect Ratio ..............................7-16 Options ................................. 7-16 INSTALLATION MODE ......................8-1 Installation Mode ............................8-1 Input Slots ..............................8-1 800 Peripheral ..............................8-2 Configuration ..............................
  • Page 7 Change Password ............................9-3 Change Language ............................9-5 Change Projector Address ..........................9-5 Serial Communication ............................ 9-5 Lamp ................................9-7 BARCO logo ..............................9-7 Preset Input Balance ............................9-8 Add-Ins ................................9-8 I2C diagnosis..............................9-9 PROGRAMMABLE FUNCTION KEYS ................10-1 Programmable Function Keys ........................

  • Page 8: Table Of Contents

    Table of Contents Downloaded from ProjectorsManual.com Manuals...

  • Page 9: Safety Instruction Related To Elm Projectors

    To prevent personel injury The customer should never attempt to disassemble the lamp casing or to dispose of the lamp casing other than by returning it to BARCO. To prevent injuries and physical damage, always read this manual and all labels on the system before inserting the lamp casing or connecting to the wall outlet, adjusting the projector.
  • Page 10 Safety 5976072 BARCOELM R12 05052000 Downloaded from ProjectorsManual.com Manuals...

  • Page 11: Packaging And Dimensions

    Packaging and Dimensions PACKAGING AND DIMENSIONS Projector Packaging Way of Packaging Flightcase Carton To unpack : Pull To open 3 7 9 Hint Contents of the complete unit (box) : 5976072 BARCOELM R12 07012000 Downloaded from ProjectorsManual.com Manuals...

  • Page 12: Lamp Packaging

    Packaging and Dimensions Lamp Packaging Way of Packaging Warning : Lens Packaging Way of Packaging Projector Case Dimensions FRONT VIEW Protects sides while turning over the projector Shaft for lifting Dual stack interlocking AIR OUT AIR IN Adjustable feet fork-lift slots (nominal) IR-receiver (both in front and at the rear...

  • Page 13: Side View

    Packaging and Dimensions SIDE VIEW 1420 190,5 Fasteners left and right Dual stack Interlocking 1314 TOP VIEW AIR OUT Zone needed for Side Panel removal (Both Left AND Right) Mains Input & Local Keypad Digital & Analog Inputs Power Switch &...
  • Page 14 Packaging and Dimensions 5976072 BARCOELM R12 07012000 Downloaded from ProjectorsManual.com Manuals...

  • Page 15: Installation Guidelines

    Installation Guidelines INSTALLATION GUIDELINES Installation Guidelines Ambient Temperature Conditions Humidity Conditions Environment Environment condition check clean air well Special care for Laser beams Which screen type? Downloaded from ProjectorsManual.com Manuals...

  • Page 16: Projector Configurations

    Installation Guidelines For more information about screens, contact your local screen supplier. What image size? How big should the image be? Projector Configurations Which configuration can be used. Front/Ceiling Rear/Ceiling Image 1 Rear/Table Front/Table Positioning the Projector Definitions of the Abbreviation on drawings Downloaded from ProjectorsManual.com Manuals...
  • Page 17 Installation Guidelines Table/Top side facing ceiling Table/Top side facing floor Projector SIDE VIEW SIDE VIEW Projector Screen Optical axis projection lens Screen Optical axis projection lens Floor Floor CD = SH/2 + B + A - 554mm CD = SH/2 + B - A Screen Screen TOP VIEW...

  • Page 18: Installation Of The Lamp Casing

    Installation Guidelines Warning on Rotating the Projector Image 6 Image 6a Safety Area around the Projector AIR IN IR OUT Safety area for air in & out Image 7 Installation of the Lamp Casing Lamp Casing Warnings Downloaded from ProjectorsManual.com Manuals...
  • Page 19 Installation Guidelines Installing the projection lamp. Image 8 Image 9 Image 10 Image 11 Image 12 Downloaded from ProjectorsManual.com Manuals...
  • Page 20 Installation Guidelines Image 13 When transporting the projector : Re-adjusting the lamp position in the lamp casing Image 14 Downloaded from ProjectorsManual.com Manuals...

  • Page 21: Lenses

    Installation Guidelines Lenses Which Lens has to be selected. Available lenses Lens formulas to calculate the projector distance Downloaded from ProjectorsManual.com Manuals...

  • Page 22: Battery Installation In The Rcu

    Installation Guidelines Installing the Projection Lens é ê Cleaning the lens Battery installation in the RCU. How is the battery delivered ? How to install ? Downloaded from ProjectorsManual.com Manuals...
  • Page 23 Installation Guidelines 3 1 0 a .D R W Image 15 Downloaded from ProjectorsManual.com Manuals...

  • Page 24: Stacking Two Projectors

    Installation Guidelines Stacking two Projectors Warning Image 16 Image 17 Downloaded from ProjectorsManual.com Manuals...

  • Page 25: Rigging Points And Accessories

    Installation Guidelines Rigging points and Accessories. Optional Profile Sections Image 18 Fork lift Supports Image 19 Downloaded from ProjectorsManual.com Manuals...

  • Page 26: Connections

    Connections CONNECTIONS Power Connection to Projector AC Power (mains) cord connection Use the supplied power cord to connect the projector to the wall outlet. Plug the female power connector (IEC309 2p+G 32A/250V plug) into the blue male connector on the side of the projector. The power input is auto-ranging from 230 VAC.

  • Page 27: Lamp Runtime Warning

    When OK (ENTER) is pressed to go on, the warning will be repeated every 30 min. The total lifetime of the lamp for a safe operation is 500 hours max. Do not use it longer. Always replace with a same type of lamp. Call a BARCO authorized service technician for lamp replacement. Lamp Runtime Warning Using a lamp for more than 500 hours is dangerous as the lamp could explode.

  • Page 28: Input Source Connection

    Connections Input Source Connection Input facilities Green Operation Diagnostic Code IR-Rec eiver Red Stand-by Two way Hardwired hardwired remote remote O U T O U T CTRL 3 CTRL 2 Sync OK Har dwired remote RS232/422 IN RS232/422 OUT COMM PORT TRIGGER OUT CTRL 1 T 9 DÃ9 DB DU 6 G ÃDI Q V U...

  • Page 29: Input Module Insertion Into The Projector

    Connections Input module insertion into the projector To insert a module in one of the free slots, handle as follow : Power down the projector and disconnect the power cord from the wall outlet. Remove the dummy plate covering the chosen input slot by turning out both screws. Slide the input module in the free slot.
  • Page 30 Slot 1 has RGB analog input terminals (BNC) with separate Horizontal and Vertical sync (RGBHV) or with composite sync input (RGBS). Always use an interface when a computer and local monitor have to be connected to the projector. Range of interfaces made by BARCO. Universal analog interface.
  • Page 31 Connections Possible indication : RGB-SS [CS or HS&VS] = separate sync is composite sync or horizontal and vertical sync. RGB-SS [3LSS or CV] = separate sync is composite tri-level sync or composite video. Fixed 5-Input Slot (slot 2) Slot 2 has 5 BNC input terminals. Green Operation Diagnostic Code IR-Rec eiver...

  • Page 32: Video/S-Video Input Module

    Connections Possible indication : RGB-SS [CS or HS&VS] = RGB analog signals, separate sync is composite sync or horizontal and vertical sync. RGB-SS [3LSS or CV] = RGB analog signals, separate sync is composite tri-level sync or composite video. RGB-SOG [SOG or 3LSOG] = RGB analog signals, sync on green is composite sync or composite tri-level sync.
  • Page 33 Connections How to set the input priority ? Press ADJUST or ENTER key to start up the Adjustment mode. Push the cursor key é or ê to select Installation (menu 1) Press ENTER. Push the cursor key é or ê to select Input Slots (menu 2) Press ENTER.

  • Page 34: Rgb Analog Input Module

    Connections RGB Analog Input Module. What can be connected to these inputs ? RGB analog input terminals with separate Horizontal and Vertical sync inputs(RGB-HV), with Composite sync input(RGB-S) or with Sync signals on green(RGsB). Remark Always use an interface when a computer and local monitor have to be connected to the projector.
  • Page 35 Connections INSTALLATION ADJUSTMENT MODE INPUT SLOTS INPUT SLOTS Slot Module type [Config] Select a path from below : 800 PERIPHERAL CONFIGURATION 1. RGB-SS [CV] 2. RGB-SOG OSD COLOR RANDOM ACCESS 3. Video [Video] INTERNAL PATTERNS INSTALLATION NO SIGNAL 4. Component Video SERVICE LENS 5.

  • Page 36: Component Input Module

    Connections Component Input Module. What can be connected to these inputs ? Connect your component signals (Y-luma, R-Y and B-Y), e.g. a professional VCR to the Component input module. R -Y B -Y 8 P H Q P I @ I UÃW D9 @ P ÃDI Q V U Sync Blue - luma Luma...

  • Page 37: Rgb3S / Rg3Sb Input Module

    Connections Factory preset : J8 'separate sync' and J9 'normal sync'. Ay‚h‡vtÂ…Á ‚Ãsy‚h‡v tÃvƒˆ ‡ Non-Floating Floating T’pÆryrp‡v‚ T ’  p   Ã` T r ƒ h …h ‡r Æ ’  p I ‚ … € h yÃT ’  p U …vyr‰ryÃT’p RGB3S / RG3sB Input Module.
  • Page 38 Connections All input signals are always 75 ohm terminated, even in the "not selected" mode. How to select the RGB3S input : Key in the corresponding slot number on the RCU or the local keypad. Indication on the input slot menu : RGB3L-SS = RGB with separate Tri level sync.

  • Page 39: Hd Sdi Digital Input (Slot 5 & 6)

    Connections Serial Digital Input (slot 5 & 6) What can be connected to this input ? This input is full compatibility with digital Betacam, or other digital video sources. This avoids the need for analog video processing anywhere in the video production chain and guarantees the ultimate image quality. An active loop-through of the SDI input signal is provided for monitoring or for double and or triple stacking applications.

  • Page 40: Communication Connections

    Note : When a RCVDS05 is connected to the projector, the SDI input is available by keying in 85 or 86 on the RCU. Communication Connections Available communication connections : RS232/422 connection between projector and computer. Communication port for communication with BARCO peripherals. Trigger output RS232 Connections RS 232/422 input and RS232/422 output of the projector.

  • Page 41: Trigger Output

    Connections Connecting a VS05 to the projector The VS05 can switch up to 5 Composite Video sources, 3 Super Video sources and 1 RGB analog or component video source to the projector. In addition, the audio signal proper to the source, can be switched to an audio amplifier. Order number : R9827890 For more information about the use of the VS05, consult the VS05 owner's manual.

  • Page 42: Getting Started

    Getting Started GETTING STARTED Remote Control & Local Keypad Functionality (;,7 (17(5 67%< 3$86( 7(;7 )5((= +(/3 3+$6( 6+$531(66 7,17 EXIT &2/25 STANDBY ENTER %5,*+71(66 TEXT PAUSE &2175$67 TINT SHARPN BRIGHTN &2175$67 PHASE COLOR 3 2a 5976072 BARCOELM R12 17012000 Downloaded from ProjectorsManual.com Manuals...
  • Page 43 Getting Started Terminology Barco key : ADJ. STBY PAUSE Help : Digit buttons Picture controls PHASE 10 TEXT 11 FREEZ 12 ENTER 13 EXIT 14 Cursor Keys '+' and '-' keys '+' and '-' keys 15 RC operating indication 5976072 BARCOELM R12 17012000...

  • Page 44: Operating The Projector

    Getting Started Operating the Projector Switching on (;,7 ( 17(5 67%< 3$86( 7( ;7 )5((= +( /3 3+$6( 6+$531 (66 7,17 &2/25 STANDBY EXIT %5,* +71(66 ENTER &2175$67 TEXT PAUSE SHARPN TINT BRIGHTN &2175$67 PHASE COLOR 32 a Lamp Run Time Indication REMAINING LAMP RUN TIME 30 h WARNING...

  • Page 45: Quick Set Up Adjustments

    Getting Started Lamp Light Output Indication ENTER WARNING Lamp run time is 400 hours. The light output of the lamp is less than 50% of its initial value. It is advisable to replace the lamp before damage occurs. <ENTER> to confirm Switching to Stand-by.

  • Page 46: Quick Lens Adjustment

    Getting Started Quick Lens Adjustment é ê ç è EXIT ENTER LENS ADJUSTMENT ZOOM/FOCUS ZOOM with éor ê FOCUS with çor è <ENTER> to Shift <EXIT> to return ENTER é ê ç è EXIT ENTER LENS ADJUSTMENT SHIFT SHIFT with éor ê, çor è <ENTER>...

  • Page 47: Using The Rcu

    Getting Started Quick On Screen Color change ENTER é ê ENTER é ê ENTER é ê ENTER ADJUSTMENT MODE INSTALLATION OSD COLOR HIGHLIGHTED ITEM Select a path from below : INPUT SLOTS 800 PERIPHERALS CONFIGURATION GREEN RANDOM ACCESS OSD COLOR YELLOW INSTALLATION NO SIGNAL...
  • Page 48 Getting Started Hardwired Remote Input Diagnostic Code IR-Rec eiver Green Operation Red Stand-by Two way hardwired Hardwired remote remote O U T O UT CTRL 3 CTRL 2 Sy nc OK Hardwired remote RS232/422 IN RS232/422 OUT COMM PORT TRIGGER OUT CTRL 1 T 9 DÃ9 DB DU6 GÃDI Q V U T 9 DÃ9 DB DU6 G ÃDI Q VU...

  • Page 49: Projector Address

    Getting Started Directly to the IR Sensors IR sensor IR sensor Side of projector Table Rear of projector Front of projector 45° 45° 45° 45° 45° 45° E X I T ( 1 7 (5 A D D R ) 5 ( (= S T B Y M U T E TEX T...

  • Page 50: Controling The Projector

    Getting Started Display the Projector Address on the Screen ADDRESS PROJECTOR ADDRESS How to Program an Address into the RCU ? ADDRESS Controling the Projector Input Selection Picture Contols Brightness Control Contrast Control Color Saturation Tint Control Sharpness Control. 5976072 BARCOELM R12 17012000 Downloaded from ProjectorsManual.com Manuals...
  • Page 51 Getting Started Phase Control The Pause key. The Stand-by key. 5-10 5976072 BARCOELM R12 17012000 Downloaded from ProjectorsManual.com Manuals...

  • Page 52: Start Up Of The Adjustment Mode

    Start up of the Adjustment Mode START UP OF THE ADJUSTMENT MODE Adjustment Mode Start up ADJUST ENTER ENTER EXIT ADJUST ADJUSTMENT MODE Select a path from below : RANDOM ACCESS INSTALLATION SERVICE Source 01 Select with é or ê then <ENTER>...
  • Page 53 Start up of the Adjustment Mode EXIT Error Invalid password <EXIT> to return 0 0 0 0 Remark Setting Up the personalised Passwords Menus on Local LCD Display 5976072 BARCOELM R12 17012000 Downloaded from ProjectorsManual.com Manuals...

  • Page 54: Random Access Adjustment Mode

    Random Access Adjustment Mode RANDOM ACCESS ADJUSTMENT MODE Random Access Mode Starting up ENTER ADJUSTMENT MODE Select a path from below : RANDOM ACCESS INSTALLATION SERVICE Source 01 Select with é or ê then <ENTER> <EXIT> to return. Overview Flowchart 5976072 BARCOELM R12 17012000 Downloaded from ProjectorsManual.com Manuals...

  • Page 55: Picture Service

    Random Access Adjustment Mode Picture Service Connecting a new Source. Start up the File Service. é ê ENTER EXIT ADJUST RANDOM ACCESS FILE SERVICE ADJUSTMENT MODE LOAD FILE SERVICE EDIT PICTURE TUNING RENAME GEOMETRY COPY DELETE OPTIONS Select with é or ê Select with é...

  • Page 56: Load File

    Random Access Adjustment Mode Load File Start up the Load File. é ê ENTER è ç ENTER FILE SERVICE LOAD FILE FILTER LIST [All] LOAD Filename Resolution EDIT ----------------------------------------------------- RENAME Video525.s01 1 675x240i COPY Video525.c01 1 675x240i DELETE Video525.c02 1 675x240i OPTIONS -----------------------------------------------------...

  • Page 57: Edit File

    Random Access Adjustment Mode Edit File What can be done with the Edit File menu ? How to start up the EDIT menu ? é ê ENTER ENTER FILE SERVICE EDIT FILE LOAD Filename Resolution EDIT ----------------------------------------------------- RENAME Video525.s01 1 675x240i COPY Video525.c01 1...

  • Page 58: How To Find The Correct Values For The Displayed Item

    Random Access Adjustment Mode How to find the correct values for the displayed item? Caution : Do not adjust these settings on an active file, they are used to identify the input source file. Read AMDS Options EDIT FILE OPTIONS Source number Clamp position [leading]...

  • Page 59: Rename A File

    Random Access Adjustment Mode ENTER ENTER ENTER EXIT CONFIRM EDIT FILE Save changes to file xga.c30? <ENTER> to confirm <EXIT> to return ENTER EXIT Rename a file Start Up. é ê ENTER é ê ENTER RENAME FILE RENAME FILE FILE SERVICE Filename Resolution Frome file name :...

  • Page 60: Copy A File

    Random Access Adjustment Mode How to change the characters ? ç è é ê ENTER EXIT RENAME FILE Frome file name : Video525.s01 To file name : demo.c10 Select with ç or è Reprogram with é or ê or numeric keys <ENTER>...

  • Page 61: Delete

    Random Access Adjustment Mode Delete Start Up é ê ENTER é ê ENTER ENTER EXIT FILE SERVICE DELETE FILE CONFIRM DELETE FILE LOAD Filename Resolution EDIT ----------------------------------------------------- Delete file: RENAME Video525.s01 1 675x240i Video525.c01? COPY Video525.c01 1 675x240i DELETE Video525.c02 1 675x240i OPTIONS [ALL]...

  • Page 62: Picture Tuning

    Random Access Adjustment Mode Picture Tuning Start Up é ê ENTER PICTURE TUNING RANDOM ACCESS ADJUSTMENT MODE CTI [ON] COLOR TEMPERATURE FILE SERVICE GAMMA PICTURE TUNING DECODING [EBU] GEOMETRY DYNAMIC COLOR DEPTH NOISE REDUCTION INPUT BALANCE Select with é or ê Select with é...

  • Page 63: Color Temperature

    Random Access Adjustment Mode Color Temperature Start Up é ê ENTER PICTURE TUNING COLOR TEMPERATURE CTI [ON] PROJECTOR WHITE COLOR TEMPARATURE COMPUTER 9300K GAMMA VIDEO 6500K DECODING [EBU] FILM 5400K DYNAMIC COLOR DEPTH BROADCAST 3200K NOISE REDUCTION INPUT BALANCE CUSTOM BALANCE Select with é...

  • Page 64: Decoding Ebu/Ire

    Random Access Adjustment Mode How to change the Gamma Value ? é ê ENTER ç è EXIT PICTURE TUNING GAMMA = 2.2 CTI [ON] COLOR TEMPERATURE GAMMA menu 3 DECODING [EBU] DYNAMIC COLOR DEPTH NOISE REDUCTION INPUT BALANCE Select with é or ê then <ENTER>...

  • Page 65: Noise Reduction

    Random Access Adjustment Mode Noise Reduction Purpose : To change the noise reduction value : é ê ENTER ç è EXIT PICTURE TUNING NOISE REDUCTION CTI [ON] COLOR TEMPERATURE GAMMA menu 2 DECODING [EBU] DYNAMIC COLOR DEPTH NOISE REDUCTION INPUT BALANCE Select with é...

  • Page 66: Geometry

    Random Access Adjustment Mode Geometry To start up the Geometry functions : é ê ENTER RANDOM ACCESS GEOMETRY ADJUSTMENT MODE SHIFT FILE SERVICE SIZE PICTURE TUNING SIDE KEYSTONE GEOMETRY BLANKING OPTIONS Select with é or ê Select with é or ê then <ENTER>...

  • Page 67: Side Keystone

    Random Access Adjustment Mode Size What can be done ? To start up the size adjustment : é ê ENTER é ê ç è GEOMETRY Fixed sides SHIFT Horizontal size SIZE adjustment SIDE KEYSTONE BLANKING ASPEC RATIO [4:3] OPTIONS Select with then <ENTER>...

  • Page 68: Blanking

    Random Access Adjustment Mode Blanking What can be done ? Available Blanking Adjustment. Top blanking Right blanking Left blanking Bottom blanking Adjusting the blanking. é ê ENTER é ê ENTER BLANKING GEOMETRY SHIFT BOTTOM SIZE LEFT SIDE KEYSTONE RIGHT BLANKING ASPEC RATIO [4:3] OPTIONS Select with é...

  • Page 69: Aspect Ratio

    Random Access Adjustment Mode Aspect Ratio What can be done? Setting Up the Aspect Ratio. é ê ENTER GEOMETRY SHIFT SIZE SIDE KEYSTONE BLANKING ASPEC RATIO [4:3] OPTIONS Select with é or ê then <ENTER> <EXIT> to return. menu 1 Options Which Options are available within the Geometry menu ? Changing the Geometry Options.

  • Page 70: Installation Mode

    Installation Mode INSTALLATION MODE Installation Mode Start Up é ê ENTER ADJUSTMENT MODE INSTALLATION Select a path from below : INPUT SLOTS 800 PERIPHERAL CONFIGURATION RANDOM ACCESS OSD COLOR INSTALLATION INTERNAL PATTERNS SERVICE NO SIGNAL LENS Source 01 QUICK ACCESS KEYS Select with é...

  • Page 71: 800 Peripheral

    Installation Mode What if a switcher is connected to the projector ? +800 peripheral 800 Peripheral What can be installed ? Defining the Output module of the RCVDS05. é ê ENTER é ê ENTER INSTALLATION 800 PERIPHERAL INPUT SLOTS 800 PERIPHERAL OUTPUT MODULE [STANDARD] CONFIGURATION INFRARED [PPM]...

  • Page 72: Configuration

    Installation Mode Configuration What can be done ? Set up the Correct Configuration é ê ENTER é ê ENTER INSTALLATION INPUT SLOTS 800 PERIPHERAL CONFIGURATION OSD COLOR INTERNAL PATTERNS NO SIGNAL LENS QUICK ACCESS KEYS MENU POSITION [DEFAULT] Select with é or ê then <ENTER>...

  • Page 73: Changing The Background Color

    Installation Mode Changing the Background Color é ê ENTER é ê ENTER NO SIGNAL INSTALLATION COLOR [Blue] INPUT SLOTS SHUTDOWN [Off] 800 PERIPHERAL CONFIGURATION Shutdown time : 5 min OSD COLOR INTERNAL PATTERNS NO SIGNAL LENS QUICK ACCESS KEYS MENU POSITION [DEFAULT] Select with é...

  • Page 74: Internal Patterns

    Installation Mode Internal Patterns What can be done with these internal patterns ? How to select an internal pattern ? é ê ENTER é ê ENTER INTERNAL PATTERNS INSTALLATION INPUT SLOTS OUTLINE 800 PERIPHERAL HATCH CONFIGURATION COLOR BARS MULTIBURST OSD COLOR CHECKER BOARD INTERNAL PATTERNS NO SIGNAL...
  • Page 75 Installation Mode Zoom/Focus/Shift/Tilt How to Zoom/Focus ? é ê é ê ç è EXIT ENTER LENS ADJUSTMENT ZOOM/FOCUS SHIFT TILT BRIDGE OPTIONS LENS Select with é or ê LENS ADJUSTMENT ZOOM/FOCUS then <ENTER> ZOOM with éor ê <EXIT> to return. FOCUS with çor è...

  • Page 76: Quick Access Keys

    Installation Mode Bridge up or down é ê ENTER é ê LENS ADJUSTMENT BRIDGE Open with é ZOOM/FOCUS Close with ê SHIFT <EXIT> to return TILT BRIDGE OPTIONS menu 2 Select with é or ê then <ENTER> <EXIT> to return. menu 1 Options é...

  • Page 77: Menu Position

    Installation Mode Menu Position What can be done ? How to set up? é ê ENTER INSTALLATION INPUT SLOTS 800 PERIPHERAL CONFIGURATION OSD COLOR INTERNAL PATTERNS NO SIGNAL LENS QUICK ACCESS KEYS MENU POSITION [DEFAULT] Select with é or ê then <ENTER>...

  • Page 78: Service Mode

    If the desired item is not in the list of the displayed menu, select more with the cursor key and push ENTER to display the other items in the service menu. SERVICE CHANGE PASSWORD CHANGE LANGUAGE BARCO ELM R12 IDENTIFICATION Enter new password ENGLISH CHANGE PASSWORD Proj. address : 001...

  • Page 79: Identification

    How to display the Identification screen ? Push the cursor key é or ê to highlight 'Identification' (menu 1). Press ENTER to display the Identification screen (menu 2. SERVICE BARCO ELM R12 IDENTIFICATION CHANGE PASSWORD Proj. address : 001 CHANGE LANGUAGE Soft.

  • Page 80: Change Password

    Service Mode - Projector Run Time : gives the total run time since the first start up. All projectors leave the factory with a run time of approximately 24 hours. - Projector Serial number : indicates the fabrication number of the projector. This number can be useful when calling for technical assistance.

  • Page 81: How To Change The Password

    CHANGE PASSWORD OWNER 0000 CHANGE LANGUAGE USER 0000 Adjustment mode Y Y Y Y CHANGE PROJ. ADDRESS GUEST 0000 Barco logo SERIAL COMMUNICATION Change Proj. Address Y Y - LAMP ACCESS CONTROL LIST MORE... Select with é or ê then <ENTER>...

  • Page 82: Change Language

    Service Mode Change Language Start Up Push the cursor key é or ê to highlight 'Change Language' (menu 1). Press ENTER to display the language selection menu (menu 2). Available languages : English SERVICE CHANGE LANGUAGE IDENTIFICATION English CHANGE PASSWORD CHANGE LANGUAGE CHANGE PROJ.

  • Page 83: Rs422 Termination

    Service Mode Setting up the Baud rate To change the baud rate, handle as follow : Push the cursor key é or ê to highlight 'Baudrate' (menu 1). The actual baud rate will be displayed. Press ENTER to toggle between the available baudrates. Default : 9600 SERIAL COMMUNICATION PROJECTOR ADDRESS 001...

  • Page 84: Lamp

    Push the cursor key é or ê to highlight 'BARCO logo' (menu 1). Press ENTER to select. The BARCO logo menu will be displayed on the screen (menu 2. Within this menu, three toggle settings and a shift control are available.

  • Page 85: Preset Input Balance

    OFF : no key on the RCU is used to display the BARCO logo. TEXT : the TEXT key on the RCU is used to display or to remove the BARCO logo with one single push on this key (only in operational : mode).

  • Page 86: I2C Diagnosis

    When the entered key is correct, the indication 'Software : not activated' will change in 'activated'. Press ENTER to confirm. SERVICE ADD-INS INSTALL ADD-INS LIGHT SENSOR LIGHT SENSOR [INACTIVE] BARCO LOGO RESET INPUT BALANCE Key : xxxxxxxxxxxxxxxx ADD-INS I2C DIAGNOSIS Hardware : OK Software : Not activated MORE...
  • Page 87 Service Mode 9-10 5976072 BARCOELM R12 05052000 Downloaded from ProjectorsManual.com Manuals...

  • Page 88: Programmable Function Keys

    4. The function key is available in the operational mode. CONFIRM QUICK ACCESS <F1> will be used to quickly access this menu. <ENTER> to confirm <EXIT> to cancel. menu 1 10-1 5976070 BARCO ELM R12 05052000 Downloaded from ProjectorsManual.com Manuals...
  • Page 89 Programmable Function Keys 10-2 5976070 BARCO ELM R12 05052000 Downloaded from ProjectorsManual.com Manuals...

  • Page 90: Standard Source Set Up Files

    Appendix A : Standard Source Set Up Files STANDARD SOURCE SET UP FILES Downloaded from ProjectorsManual.com Manuals...
  • Page 91 Appendix A : Standard Source Set Up Files Downloaded from ProjectorsManual.com Manuals...

  • Page 92: Index

    Index INDEX Symbols 5976072 BARCOELM R12 17102000 Downloaded from ProjectorsManual.com Manuals...
  • Page 93 Index See also 5976072 BARCOELM R12 17102000 Downloaded from ProjectorsManual.com Manuals...
