Summary of Contents for Barco MGP D5

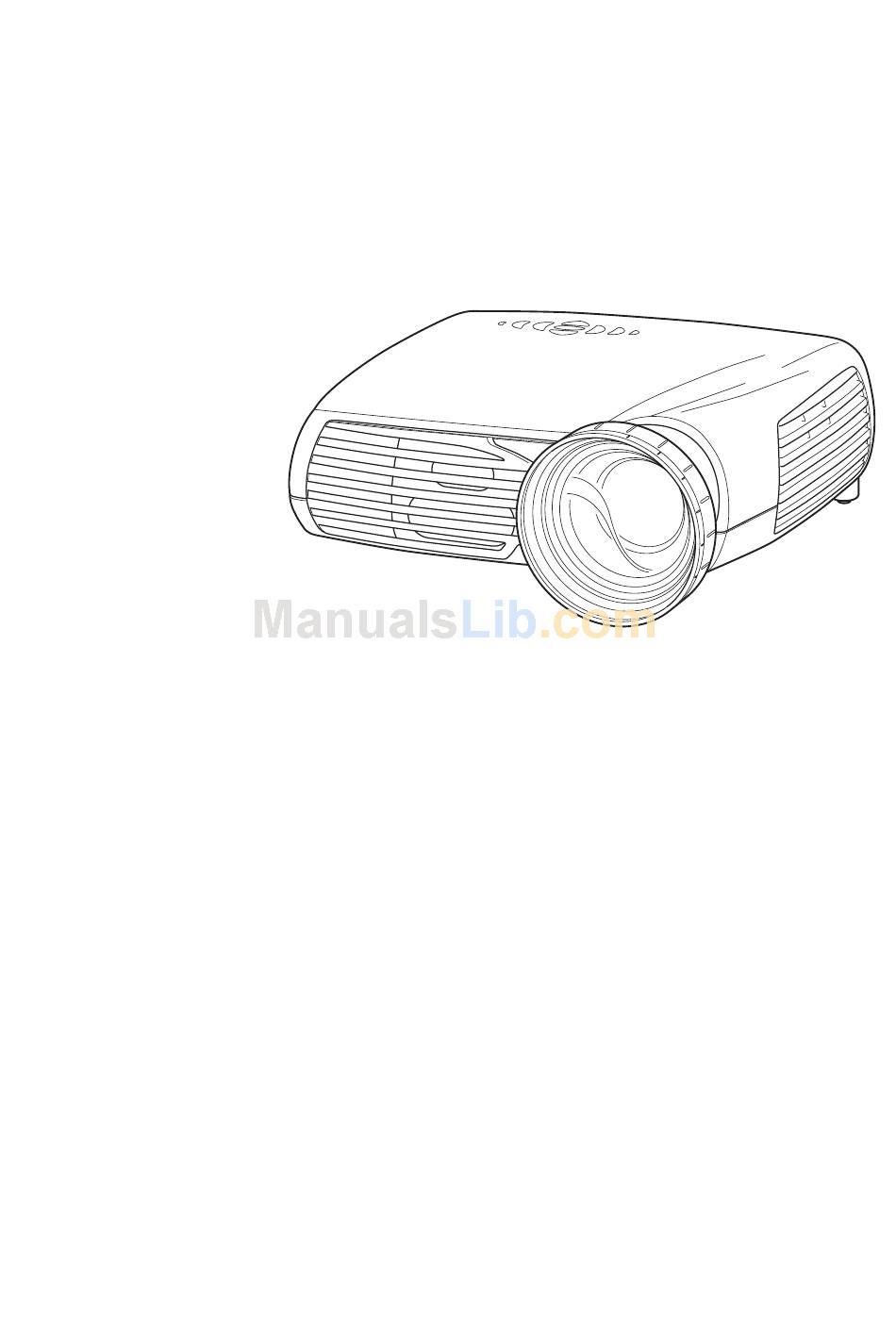

  • Page 1 MGP D5 User Guide...
  • Page 2 B4100515 - 00 October 2004 www.barco.com...

  • Page 3: Table Of Contents

    CEILING MOUNT (option) ... 21 USING THE PROJECTOR... 23 MENU SYSTEM ... 25 MOUSE CONTROL ... 37 RS 232 AND LAN CONTROL ... 38 TROUBLESHOOTING... 39 MAINTENANCE... 41 LAMP CHANGE... 43 SERVICE INFORMATION... 46 TECHNICAL DATA... 47 DECLARATIONS... 54 MGP D5 TABLE OF CONTENTS...

  • Page 4: Introduction

    INTRODUCTION INTRODUCTION This digital projector is designed with the latest state-of-the-art technologies in illumination, imaging, optics, electronics, thermal and industrial design in order to serve traditional as well as novel imaging applications across a variety of markets, offering features such as: •...

  • Page 5: Safety & Warnings

    Refer all repairs to qualified personnel only. Make sure that no objects enter into the vents and openings of the set. Do not spill any liquids on the projector or into the vents or openings of the unit. Always remove lens cap before switching on the projector. If the lens cap is not removed, it may melt due to the high energy light emitted through the lens.
  • Page 6 SAFETY & WARNINGS Only place the projector on a stable surface, or mount it securely using an approved ceiling-mount. Do not drop the projector. Always operate the projector horizontally, within the range of the adjustable rear feet. Operating the unit in other positions may reduce lamp life significantly, and may lead to overheating, resulting in malfunctioning.
  • Page 7 It is very important that lamps containing mercury are treated properly to minimize potential health hazards. The UHP™ lamp, like any other high brightness projector lamp, is under high-pressure when operating. While the lamp and the projector are carefully designed to minimize the probability of lamp rupture, the lamp may break while operating and small amounts of mercury vapor may be emitted from the projector.

  • Page 8: Remote Control Warning

    Remote control complies with applicable requirements of EN 60 825-1: 1994 + A11 LASER RADIATION WARNING CAUTION: Laser radiation. Do not stare into the beam. Laser diode: Wavelength 570 mm, max. output 1 mW. Class II laser product. User Guide MGP D5...

  • Page 9: Overview

    User Guide OVERVIEW Focus ring Zoom ring IR sensor Ventilation Keypad Connector panel Power connector Lamp house Adjustable foot Foot release Security lock Ceiling mount MGP D5 OVERVIEW...

  • Page 10: Keypad

    KEYPAD SOURCE MENU AUTO POWER Switches the projector between on and standby modes. Press firmly (1 sec) to switch on. Press firmly (1 sec) twice to switch off. AUTO Adjusting the projector to display a correct image, including position, width, height, contrast, brightness and overall stability.
  • Page 11 User Guide VOLUME Use the two arrow keys to adjust the sound volume. STATUS This is an indicator light, not a key. Do not push. It indicates the current projector status. See STATUS chapter for detail. MGP D5 KEYPAD...

  • Page 12: Status

    Please wait. The yellow light will flash a period after power cord is connected (10-15 sec.), and a period after going to standby mode while lamp is cooling down (approximately 45 sec.). The projector may not be turned on again until the light has turned to permanent yellow. PERMANENT RED LIGHT Lamp life has expired.

  • Page 13: Remote Control

    User Guide REMOTE CONTROL The remote control allows flexible access to the projector settings, either through direct keys, or through the menu system. The remote control can be used to emulate the computer mouse through the USB interface. POWER Switches the projector between on and standby modes.
  • Page 14 COLOR Adjusts the color of the image from pale to saturated VOLUME Adjusts the sound volume ASPECT Cycles through the aspect ratios available with the current source MENU Toggles the menu system on and off User Guide MGP D5...
  • Page 15 CAUTION! Do not point laser beam at peo- ple. Do not stare into laser beam. ARROW KEYS Use the four arrow keys as alternatives to the trackball for menu navigation SELECT Select option in menu. Same function as LEFT/SELECT above. MGP D5 REMOTE CONTROL...

  • Page 16: Connector Panel

    VGA - Analog RGB 1-2: The standard analog computer graphics interface. RS 232 control in-out: Allows for wired remote control and monitoring of many projector functions used in installation environments. The secondary output connector allows for daisy-chaining, enabling both individual and global control and monitoring of multiple projectors.
  • Page 17 User Guide USB - interface: Allows for computer mouse control. LAN: Provides access to control and monitoring over a Local Area Network. M Mains power connector: Use only three-prong, grounded power cord. MGP D5 CONNECTOR PANEL...

  • Page 18: Set Up Video

    In addition, the DVI-D input can be used with video sources (DVD player fitted with an HDCP a pure digital connection. Connect the power cord. compliant DVI or HDMI connector) for User Guide MGP D5...

  • Page 19: Setup Computer

    User Guide SETUP COMPUTER Before setting-up, switch off all equipment. The projector may be connected to up to three computer sources simultaneously, using the VGA and DVI inputs. The VGA interface is analog and may cause some noise in the projected image, depending on the signal quality from the VGA graphics card in the computer.

  • Page 20: Image Adjustments

    You may compensate this effect by the KEYSTONE correction control on the keypad or remote control. To get an image level with the screen, turn the rear feet (E) to the right position. User Guide MGP D5...

  • Page 21: Ceiling Mount (Option)

    CEILING MOUNT KIT Please refer to the “MSP-BAR034” installation instructions included in the ceiling mount kit package. The projector is provided with 3 threaded inserts (L) to attach the UPA interface bracket of the ceiling mount kit. CEILING MOUNT COVER...
  • Page 22 CEILING MOUNT (option) User Guide MGP D5...

  • Page 23: Using The Projector

    If no source is active, searching messages will appear on the screen. If no source is active for a long time, the projector will go in standby mode if DPMS (power save) is set to ON in the SET UP sub menu.
  • Page 24 The STATUS indicator will turn from green to flashing yellow, then yellow when switched off. You may not switch the unit on while the STATUS indicator is flashing yellow. Please wait until the indicator is permanent yellow. User Guide MGP D5...

  • Page 25: Menu System

    Basic picture controls dynamic Allows additional control over the projected image. advanced Advanced picture controls set up General projector controls utilities System controls and information control RS232 and LAN configurations MGP D5 MENU SYSTEM picture dynamic advanced setup utilities control...

  • Page 26: Picture Sub Menu

    YPbPr (progressive) brightness contrast color space SMPT sharpness aspect YPbPr (interlaced) brightness contrast color tint sharpness aspect brightness contrast sharpness aspect fill 16:9 REC601 REC709 fill 16:9 fill 16:9 Not available in DICOM mode fill aspect ratio User Guide MGP D5...
  • Page 27 In video applications, this may produce more noise in the projected image. A lower setting will soften the image, looking more smeared out, and reducing the overall noise. MGP D5 Not available in DICOM mode fill aspect ratio MENU SYSTEM...

  • Page 28: Lamp Power

    Reducing lamp power for maximum lamp life and reduced power consumption lamp power Allows for continuously adjustable lamp power for easier calibration of multiple-screen set-ups. Not available in DICOM mode computer 2 27 hrs User Guide MGP D5...

  • Page 29: Lamp Runtime

    User Guide lamp runtime The total time the lamp has been operating since the projector was produced or the lamp was replaced, if the lamp counter was reset after replacement. DICOM Allows to select a DICOM display function, which optimizes the projector to the DICOM standard.
  • Page 30 7300 9300 custom NTSC SECAM -> Always “custom” in DICOM mode 7300 9300 custom -> Not available in DICOM mode press -> Always “custom” in DICOM mode 7300 9300 custom -> Not available in DICOM mode User Guide MGP D5...
  • Page 31 Select between video types; DVD and VCR. The DVD setting is normally used and will yield well defined video images. custom brightness Allows for individual user control of red, green and blue brightness. custom contrast Allows for individual user control of red, green and blue contrast. MGP D5 MENU SYSTEM...
  • Page 32 Important: you must perform the full auto image function on a good test pattern. Otherwise, the image may not be correctly adjusted. Therefore, to perform the full auto image function correctly, run the calibration wizard in the TheaterWatch software application. User Guide MGP D5...

  • Page 33: Set Up Sub Menu

    Activate/deactivate DPMS (Display Power Management Signalling). When DPMS is on, the projector will switch off following the powering off or disconnection of the signal source. The projector will switch back on when the signal source is reactivated. source scan Switches source scan on and off. With source scan on, the projector will search for another source if the current source is disconnected or switched off.

  • Page 34: Utilities Sub Menu

    Requires composite sync connected to the composite video input. UTILITIES SUB MENU FOR ALL system information OSD timeout OSD background opaque reset lamp reset service menu test image press seconds translucent press press press hide show User Guide MGP D5...

  • Page 35: Osd Timeout

    OSD background Select background mode, whether transparent or opaque. reset Resets the projector to its basic settings. All parameters available in the various menus are reset to their factory values. lamp reset Reset lamp after lamp change. Do not reset lamp counter unless the lamp has been replaced with an original new lamp.

  • Page 36: Control Sub Menu

    RS232 Fixed baudrate Mode Selects between RS232, RIMI (internal) and LAN control modes. The projector can be controlled by only one of the modes at a time. RS232 address For use when daisy-chaining several units. Select auto or fixed address. Only one address scheme is allowed per daisy-chain.

  • Page 37: Mouse Control

    Ensure that the PC has an operating system that supports USB (Windows™ 98 2nd edition or newer). As long as the menu system on the projector is not activated, the tracker ball on the remote control will now emulate the mouse movements.

  • Page 38: Rs 232 And Lan Control

    RS 232 AND LAN CONTROL RS 232 AND LAN CONTROL RS 232 You may control and monitor the projector remotely through the serial RS232 control interface. The RS232 protocol is a binary protocol where each command is a series of 32 bytes in one packet. The protocol allows for both SET and GET operations.

  • Page 39: Troubleshooting

    Source scan off: Check SOURCE SCAN in the SET UP sub menu. If setting is OFF, the projector will not search for the next active source, but will remain with the current source selected.

  • Page 40: Unsharp Image

    Source resolution is different from projectors native resolution: The projector will automatically scale and resize the input format to its native resolution. Use a different scaling factor in the PICTURE sub menu, ASPECT. You may also adjust the SHARPNESS.

  • Page 41: Maintenance

    Refer service and repair to qualified personnel only. The projector is using a lamp that has a limited life time. Please refer to the LAMP CHANGE section below for further details. Only the exterior of the unit may be cleaned. Use a damp cloth.

  • Page 42: Heavy Duty And Continous Use

    MAINTENANCE HEAVY DUTY AND CONTINOUS USE The projector contains moving parts (such as cooling fans) that have limited life-expectancies. When the projector has been used for 7 500 hours, and when the unit is applied to mission-critical use, it is recommended that the projector is given preventive maintenance by a qualified service person.

  • Page 43: Lamp Change

    Change the lamp when lifetime expires. Always replace lamp with the same type and rating. Always disconnect the power cord and wait until the projector has cooled down (60 minutes) before opening the lamp cover (B). Release the screw (A).
  • Page 44 LAMP CHANGE Remove the lamp house (E). Replace with a new lamp in reverse order. Replace the lamp house (E) and tighten the screws (C). Fold the handle (D) in place. User Guide MGP D5...
  • Page 45 WARNING Be careful not to touch the protective glass when replacing the lamp house, this may cause the protective glass to overheat and break while in use. MGP D5 LAMP CHANGE system information press OSD timeout seconds...

  • Page 46: Service Information

    Please check that the projector as well as the video and computer sources are all switched on. Cables and cords may break over time. Try to change cables and cords, in case there is a bad or intermittent connection.

  • Page 47: Technical Data

    Video Compatibility Aspect Ratio Bandwidth Brightness Contrast Zoom lens Lamp MGP D5 1400 x 1050 (native) SXGA+ Single chip DLP™ technology by Texas Instruments LVDS DMD™ with DarkChip2™ technology UXGA, SXGA+, SXGA, XGA, SVGA, VGA PC, MAC, SGI and other workstations...
  • Page 48 90-260 VAC, 50-60 Hz, 350W CE, FCC A, CSA(C,US) 0-40°C / 32-104°F, 0-1500 m / 0-4950 ft 0-35°C / 32-95°F, 1500-3000 m / 4950- 9900 ft -20 - 60°C / -4 - 140°F 20-90% RH, non-condensing User Guide MGP D5...
  • Page 49 User Guide Humidity storage Specifications subject to change without prior notice. All values may vary up to +/- 20%. MGP D5 10-95% RH, non-condensing TECHNICAL DATA...
  • Page 50 TECHNICAL DATA User Guide MGP D5...
  • Page 51 STEM GREEN: G/Y SHIELD: GND B/Pb PHONO/RCA FEMALE STEM BLUE: B/Pb SHIELD: GND R/Pr PHONO/RCA FEMALE STEM RED: R/Pr SHIELD: GND MGP D5 TECHNICAL DATA S-Video 4 PIN MINI DIN FEMALE Luma Chroma Composite Video PHONO/RCA FEMALE STEM YELLOW: Composite...
  • Page 52 Analog G in Analog B in AGND AGND Analog R GND in Analog G GND in Analog B GND in Reserved 10 Sync GND in 11 AGND 12 DDC/SDA 13 H Sync in 14 V Sync in 15 DDC/SCL MGP D5...
  • Page 53 Audio in 1 Black 3.5 mm mini jack TIP: R STIM: L RING: GND DIGITAL USB -Data +Data MGP D5 TECHNICAL DATA RS-232 out 9 PIN DSUB MALE RC in 3.5 mm stereo mini jack TIP: 5V DC RING: SIGNAL STEM: GND...

  • Page 54: Declarations

    The typical use is in a conference room, meeting room or auditorium. CANADA This Class A digital apparatus complies with Canadian ICES-003. CCet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. User Guide MGP D5...
