Nauticam C100IS-F Instruction Manual

For canon ef 100mm f2.8l macro is usm

Current as of 09/05/2022

INSTRUCTION MANUAL

For C100IS-F for Canon EF 100mm

f2.8L Macro IS USM

PN# 19523

This manual applies to product shipped

from September, 2022, serial number from

A512953 onwards;

FORWORD

Thank you for your purchase of a NAUTICAM

product.

At NAUTICAM, we pride ourselves in the ability to

recognize the requirements of professional as well

as amateur underwater photographers and fulfill

them through the innovative designs of our

products. We strive to achieve a high level of user-

friendliness by allowing stress-free installation and

easy operation of all important functions of the

camera.

Each product is individually inspected and water

pressure tested to ensure optimum quality.

Please read this manual carefully before using the

product, this will maximize its performance as well

as its lifetime.

Table of Contents

Need help?

Do you have a question about the C100IS-F and is the answer not in the manual?

Page 1 A512953 onwards; FORWORD Thank you for your purchase of a NAUTICAM product. At NAUTICAM, we pride ourselves in the ability to recognize the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products.
Page 2 NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with and/or placed within our products. NAUTICAM accepts no liability for any loss of captured images or the inability to capture images even if it is due to the malfunctioning of our products.

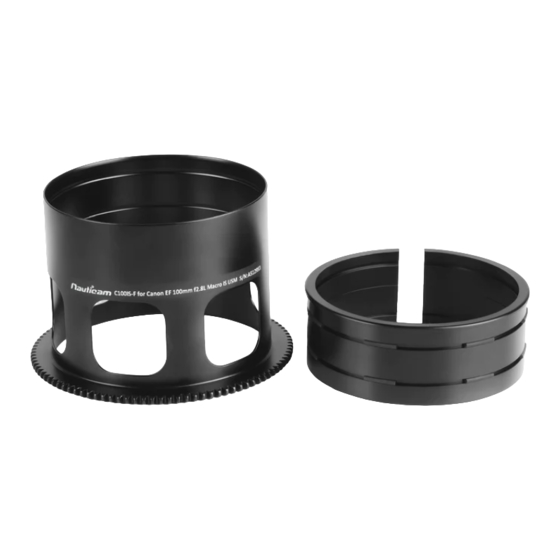

Page 3 IDENTIFICATION OF PARTS Plastic C-ring C100IS-F Focus Gear Spare Rubber grips...
Page 4 For Old version of 19523 (A512953 before), the rubber ring on the lens should be removed before insert the plastic C-ring. 2 Insert the C100IS-F Focus Gear on the plastic C-ring until it reaches the flange of the plastic C-ring.
Page 5 CONTROL THE GEAR 1. The C100IS-F Focus Gear can be controlled by zoom/focus knob of the housing. After mount the camera and lens (with gear installed) on the housing, confirm that the zoom/focus knob operates correctly.
Page 6 SPECIFICATIONS #19523 C100IS-F for Canon EF 100mm f2.8L Macro IS USM Dimensions: DIA102.0mm × 67.9mm Type: Focus gear Canon EF 100mm f2.8L Compatible lens: Macro IS USM Remark: Nauticam supports only e-manuals. Please download corresponding product manuals on google drive https://bit.ly/Nauticammanual, or contact us for e-...
