Nauticam C2870f3.5II-F Instruction Manual

19566 19 566
19 19 566 566
C2870f3.5II- - - - F Focus Gear for C2870f3.5II C2870f3.5II C2870f3.5II
Canon EF 28- - - - 70mm f/3.5 Canon EF 28
Canon EF 28 Canon EF 28
Instruction Manual
F F F F
OREWORD OREWORD OREWORD OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the
requirements of professional as well as amateur underwater
photographers and fulfill them through the innovative designs of our
products. We strive to achieve a high level of user-friendliness by
allowing stress-free installation and easy operation of all important
functions of the camera.
Please read this manual carefully before using the product, this will
maximize its performance as well as its lifetime.
W W W W
ARRANTY ARRANTY
ARRANTY ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for
consumer use. This warranty only applies to products purchased from
authorized NAUTICAM dealers and does not extend beyond the original
retail purchaser.
To return your product for service, please contact your regional
authorized service center(s). Please note that this warranty only applies
when the product is purchased in the territory where the service center is
located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the
inability to capture images even if it is due to the malfunctioning of our
products.
Unauthorized modifications and/or repairs of our products will
automatically invalidate the warranty.

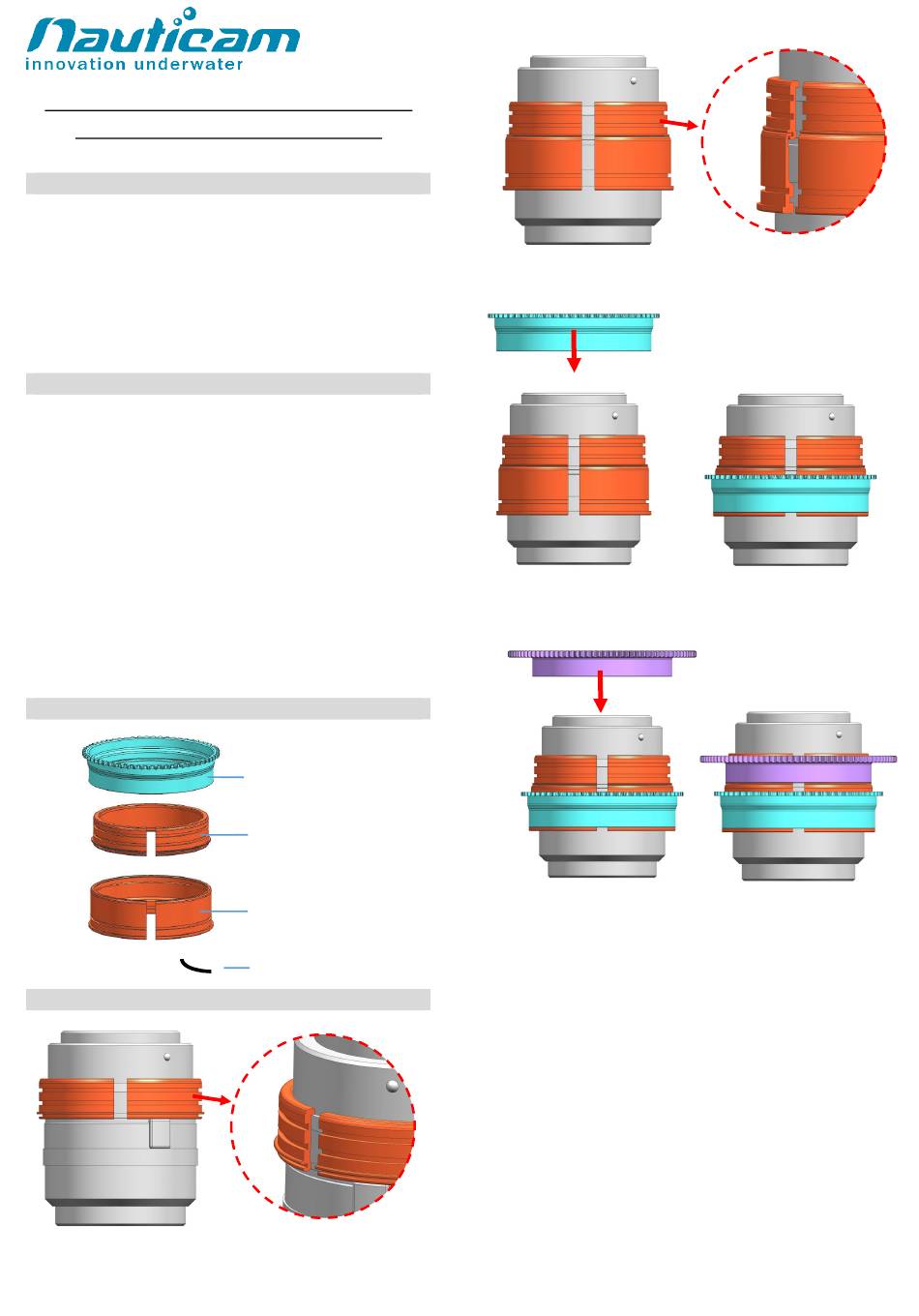

I I I I P P P P
DENTIFICATION OF DENTIFICATION OF DENTIFICATION OF DENTIFICATION OF ARTS ARTS ARTS ARTS
6x
M M M M G G G G
OUNTING THE OUNTING THE OUNTING THE OUNTING THE EAR ON A LENS EAR ON A LENS EAR ON A LENS EAR ON A LENS
1. Insert the plastic C-ring for Zoom as shown and place it over the
lens
F Focus Gear for F Focus Gear for F Focus Gear for
70mm f/3.5- - - - 4.5 II 4.5 II
70mm f/3.5 70mm f/3.5 4.5 II 4.5 II
C2870f3.5II-F Focus Gear
Plastic C-ring for Zoom
Plastic C-ring for Focus
Spare Rubber grips
2. Insert the plastic C-ring for Focus as shown and place it over the
lens then lock the zoom c-ring as shown.
,
3. Insert the C2870f3.5II-F Focus gear on the plastic C-ring for
Focus until it reaches the flange of the plastic C-ring.
4. Insert the #19557 #19557 C2870f3.5II-Z Zoom gear on the plastic C-ring
#19557 #19557
for Zoom until it reaches the flange of the plastic C-ring.
If ONLY #19557 is required to use with this lens, please refer to
#19557 C2870f3.5II-Z Zoom Gear manual.
5. To remove the C2870f3.5II-F Focus gear, reverse the above steps.
The tightness between the C2870f3.5II-F Focus gear and the
lens can be adjusted by removing or adding rubber grips on
either sides of the plastic C-ring, spare rubber grips are included
in the package.
Current as of 2020-04-03
