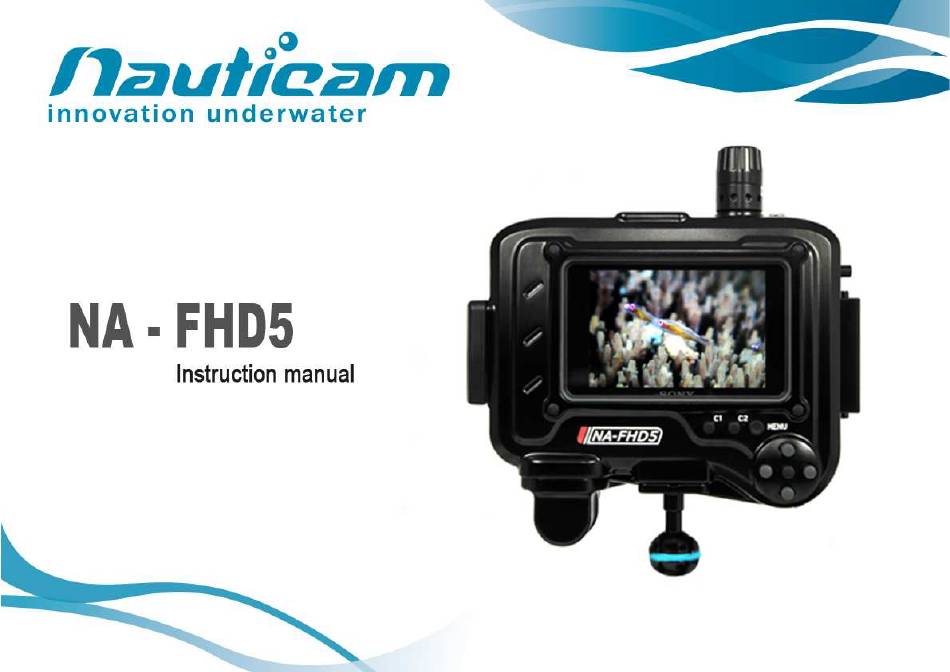

Nauticam NA-FHD5 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NA-FHD5 and is the answer not in the manual?

Questions and answers

Related Manuals for Nauticam NA-FHD5

Summary of Contents for Nauticam NA-FHD5

  • Page 2 ORWARD Thank you for your purchase of a NAUTICAM housing. At NAUTICAM, we pride ourselves in the ability to recognise the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.

  • Page 3: Table Of Contents

    ABLE OF ONTENTS Warranty ……………………………………………………………………………………………………………. Precautions ………………………………………………………………………………………………………… Package Contents ………………………………………………………………………………………………. Specifications …………………………………………………………………………………………………….. Identification of Parts ………………………………………………………………………………………… Opening and Locking the Housing ……………………………………………………………………… Preparation of the Housing ………………………………………………………………………………… Installing the Monitor ………………………………………………………………………………………… Connecting to the Camera Housing ……………………………………………………………………. Care and Maintenance ………………………………………………………………………………………. Optional Accessories …………………………………………………………………………………………..

  • Page 4: Warranty

    NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with and/or placed within our products. NAUTICAM accepts no liability for any loss of captured images or the inability to capture images even if it is due to the malfunctioning of our products.

  • Page 5: Precautions

    O-ring(s). • Do not use lubricants from other brands with the silicone rubber O-ring on this housing, only use the lubricant provided by NAUTICAM. • Discontinue use immediately should you notice any leakage.
  • Page 6 • Do not open the product in a wet or sandy environment. Protect the interior from moisture and debris in order to prevent malfunction or leakage. • Do not store the product in an environment of high humidity. • Do not leave the housing and the monitor in direct sunlight for prolonged periods. •...

  • Page 7: Package Contents

    ACKAGE ONTENTS • NA-FHD5 Housing • HDMI cable (A-D) in 0.75m length (pre-installed) • Standard HDMI bulkhead with M16 thread • HDMI (D-C) cable in 190mm length • HDMI (D-D) cable in 200mm length • M16 Vacuum Valve (pre-installed) •...

  • Page 8: Specifications

    PECIFICATIONS Housing body: Aluminium alloy Construction Surface treatment: Hard anodised Display window: Abrasion resistant polycarbonate Width: 208mm Dimensions Height: 178mm Depth: 97mm Weight Approx. 1.50kg Buoyancy About neutral Depth rating 100 metres...

  • Page 9: Identification Of Parts

    DENTIFICATION OF ARTS Vacuum Valve Threaded holes for ball mount Moisture alarm window Threaded holes for On/Standby button monitor hood (4x) Up selection button Left selection button C1 custom button Zoom/Select button C2 custom button Right selection button Menu button Down selection button...
  • Page 10 Ball mount Sacrificial zinc anode HDMI cable Cable cap Housing lock Housing lock safety button...

  • Page 11: Opening And Locking The Housing

    PENING AND OCKING THE OUSING To open the housing: 1. Press the housing lock safety 2. Turn the housing lock anti- button. clockwise for 270°, until the lock reaches the “Open” position as shown.
  • Page 12 To lock the housing: 3. Close the housing while the 4. Turn the housing lock clockwise housing lock is in the “Open” for 270°, until the lock reaches position. the “lock” position as shown. Confirm that the white indicator line on the safety button is visible.

  • Page 13: Preparation Of The Housing

    REPARATION OF THE OUSING 1. After verifying that the main O-ring is in 4. Setting up the moisture alarm: good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the front part of the housing is free from any foreign material;...
  • Page 14 2. Switch the alarm on. The LED 3. Test the alarm by connecting the light will flash blue once and turn two wires near the bottom of the blue for five seconds indicating housing with a damp cotton bud; the battery is normal. Then it the alarm should start giving out a goes into flashing blue light repeating “beep”...
  • Page 15 To build up vacuum: 3. After the target vacuum level is Press to release reached, i.e. steady green light. Attention: After the target vacuum level is reached, attach the cap back to the vacuum valve. 4. It is recommended to leave the housing for at least 20mins to ensure it is sealed.
  • Page 16 Caution: Please DO NOT attempt to go over 5. Please ensure that the cap is attached back to the vacuum valve before going the designated vacuum level, i.e. stopasdas underwater. asd a pumping when the LED turn green. Excessive vacuum level may lead to the 6.
  • Page 17 LED status identification: On start up: LED indicator Status Flash “Blue” light once Indicates a 2nd generation PCB Steady "Blue" light Battery is normal, goes into flashing "Blue" light standby mode after 5 seconds. "Blue" and "Red" lights Battery low. Replace battery as soon as possible. Goes alternating into standby mode after 5 seconds.
  • Page 18 After start up: LED indicator Status Flashing "Blue" light Standby mode. The moisture alarm is active, and the system is ready for vacuum indication whenever a vacuum is detected. Flashing "Red" light with Moisture is detected. beeping sound Flashing "Yellow" light Some vacuum is detected, target vacuum level is not reached.

  • Page 19: Installing The Monitor

    NSTALLING THE ONITOR To install the monitor into to the housing: 1. Turn the two locking levers in 2. Connect the HDMI cable with "L" the direction as shown. connector to the monitor’s HDMI in socket as shown above.
  • Page 20 Various Power Sources The following batteries are compatible with NA-FHD5 housing. • NP-FW50 (up to 60 min. • NP-FM500H (up to 120 min. • NP-FV50 (up to 50 min. • NP-FV70 (up to 130 min. • NP-FV100a (up to 300 min.

  • Page 21: Connecting To The Camera Housing

    Connect ONNECTING TO THE AMERA OUSING For installing the standard HDMI bulkhead with M16 thread or M16 SDI bulkhead: 2. Tighten the HDMI or HD-SDI 1. Unscrew the M16 plug from the bulkhead with a spanner. threaded hole with a coin.
  • Page 22 3. Connect the HDMI /HD-SDI cable 4. Connect the HDMI / HD-SDI to the HDMI /HD-SDI bulkhead. cable to the camera's HDMI / HD-SDI socket.
  • Page 23 For installing the custom HDMI bulkhead to use with extension: 1. Unscrew the M16 plug from the 2. Tighten the socket extension to accessory port with a coin. the camera housing with a spanner.
  • Page 24 3. Insert the HDMI cable through 4. Connect the HDMI cable to the the threaded hole from inside of HDMI bulkhead. the housing.
  • Page 25 5. Tighten the HDMI bulkhead by 6. Connect the HDMI cable to the turning the threaded ring on the camera's HDMI connector. socket extension.
  • Page 26 To connect the monitor housing to HDMI / SDI bulkhead: 1. Unscrew the cap off the HDMI 2. Unscrew the cap off the HDMI /SDI bulkhead. /HD-SDI cable.
  • Page 27 3. Align and plug the HDMI /HD-SDI cable in the HDMI /HD-SDI bulkhead. Tighten the connection by turning the threaded ring on the HDMI /HD-SDI cable.

  • Page 28: Care And Maintenance

    O-ring with the provided lubricant before reinstalling it in the groove. A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. • Replace the main O-ring annually. It is recommended that you ship the housing to our...

  • Page 29: Optional Accessories

    PTIONAL CCESSORIES P.N. 17918 FHD5 Monitor hood for NA-...
