Holtek HT48RA5 Technical Document page 11

Watchdog Timer - WDT
The WDT clock source is implemented by a dedicated
RC oscillator (WDT oscillator), instruction clock (system
clock divided by 4), determines the ROM code option.
This timer is designed to prevent a software malfunction
or sequence from jumping to an unknown location with
unpredictable results. The Watchdog Timer can be dis-
abled by ROM code option. If the Watchdog Timer is dis-
abled, all the executions related to the WDT result in no
operation.
Once the internal WDT oscillator (RC oscillator with a
period of 90ms@3V normally) is selected, it is first di-
vided by 256 (8-stage) to get the nominal time-out pe-
riod of 23ms@3V. This time-out period may vary with
temperatures, VDD and process variations. By invoking
the WDT prescaler, longer time-out periods can be real-
ized. Writing data to WS2, WS1, WS0 (bit 2,1,0 of the
WDTS) can give different time-out periods. If WS2,
WS1, and WS0 are all equal to 1, the division ratio is up
to 1:128, and the maximum time-out period is 2.9s@3V
seconds. If the WDT oscillator is disabled, the WDT
clock may still come from the instruction clock and oper-
ates in the same manner except that in the HALT state
the WDT may stop counting and lose its protecting pur-
pose. In this situation the logic can only be restarted by
external logic. The high nibble and bit 3 of the WDTS are
reserved for user¢s defined flags, which can be used to
indicate some specified status.
If the device operates in a noisy environment, using the
on-chip RC oscillator (WDT OSC) is strongly recom-
mended, since the HALT will stop the system clock.
WS2 WS1 WS0
0 0 0
0 0 1
0 1 0
0 1 1
1 0 0
1 0 1
1 1 0
1 1 1
WDTS Register
S y s t e m C l o c k / 4
W D T
O S C
Rev. 1.40
The WDT overflow under normal operation will initialize
²chip reset² and set the status bit ²TO². But in the HALT
mode, the overflow will initialize a ²warm reset² and only
the program counter and SP are reset to zero. To clear
the contents of WDT (including the WDT prescaler),
three methods are adopted; external reset (a low level to
RES), software instruction and a ²HALT² instruction.
The software instruction include ²CLR WDT² and the
other set ²CLR WDT1² and ²CLR WDT2². Of these two
types of instruction, only one can be active depending
on the ROM code option ²CLR WDT² times selection
option. If the ²CLR WDT² is selected (i.e. ²CLR WDT²
times equal one), any execution of the ²CLR WDT² in-
struction will clear the WDT. In the case that ²CLR
WDT1² and ²CLR WDT2² are chosen (i.e. ²CLR WDT²
times equal two), these two instructions must be exe-
cuted to clear the WDT; otherwise, the WDT may reset
the chip as a result of time-out.
Power Down Operation - HALT
The HALT mode is initialized by the ²HALT² instruction
and results in the following...
·
The system oscillator will be turned off but the WDT
oscillator remains running (if the WDT oscillator is se-
lected).
·
The contents of the on chip RAM and registers remain
unchanged.
·
WDT and WDT prescaler will be cleared and re-
counted again (if the WDT clock is from the WDT os-
cillator).
·
All of the I/O ports maintain their original status.
·
The PDF flag is set and the TO flag is cleared.
Division Ratio
The system can leave the HALT mode by means of an
1:1
external reset, an interrupt, an external falling edge sig-
1:2
nal on port A or a WDT overflow. An external reset
1:4
causes a device initialization and the WDT overflow per-
forms a ²warm reset². After the TO and PDF flags are
1:8
examined, the reason for chip reset can be determined.
1:16
The PDF flag is cleared by system power-up or execut-
1:32
ing the ²CLR WDT² instruction and is set when execut-
1:64
ing the ²HALT² instruction. The TO flag is set if the WDT
1:128
time-out occurs, and causes a wake-up that only resets
the program counter and SP; the others remain in their
original status.
R O M
C o d e
8 - b i t C o u n t e r
O p t i o n
S e l e c t

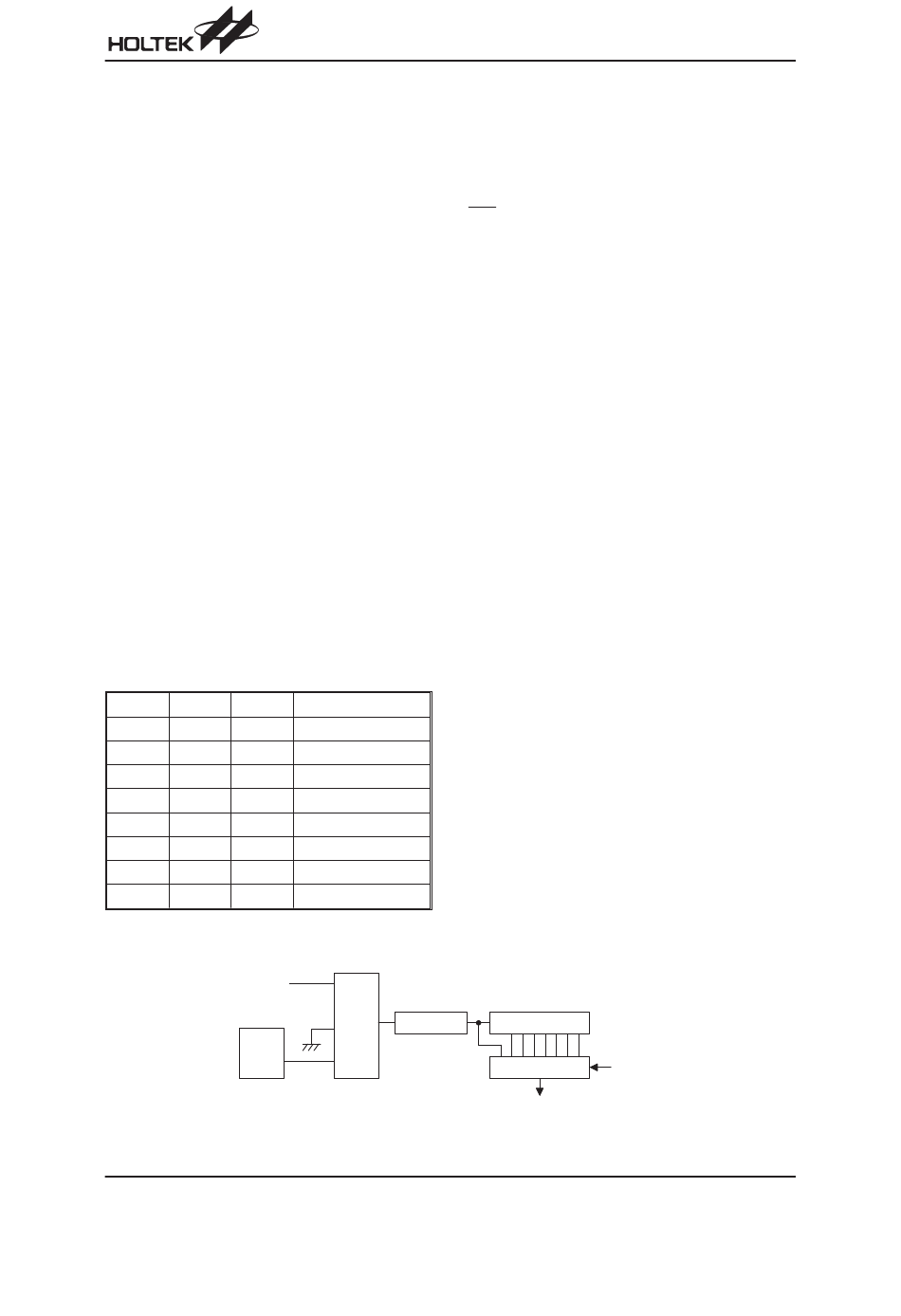

Watchdog Timer
11
HT48RA5/HT48CA5
W D T P r e s c a l e r
7 - b i t C o u n t e r
8 - t o - 1 M U X
W S 0 ~ W S 2
W D T T i m e - o u t
May 22, 2009
