ATEN CS74U,CS72U - 4/2-Port USB KVM Switch Manual

Package Contents

CS72U / CS74U 2/4-Port USB KVM Switch
2 Custom KVM Cable sets (CS72U)
4 Custom KVM Cable sets (CS74U)

1 User Guide

Requirements

Console

  • A VGA compatible monitor capable of the highest possible resolution
  • A USB mouse
  • A USB keyboard
  • Microphone and Speakers (Optional)
    Note: Use a keyboard that supports your operating system (OS). For example: use a Mac keyboard when you are working on a Mac OS, and use Sun keyboard when you are working on a Sun OS.

Computers
The following equipment must be available on each computer:

  • A VGA port
    Note: The quality of the display is affected by the quality of the VGA display card. For best results, we recommend you purchase a high quality product.
  • Audio Ports (Optional)
  • Type A USB ports

Cables
The quality of the display is affected by the quality and length of the cables. Please use the cables provided in the package to have the best quality.

Hardware Review

Overview - Front View Overview - Rear View

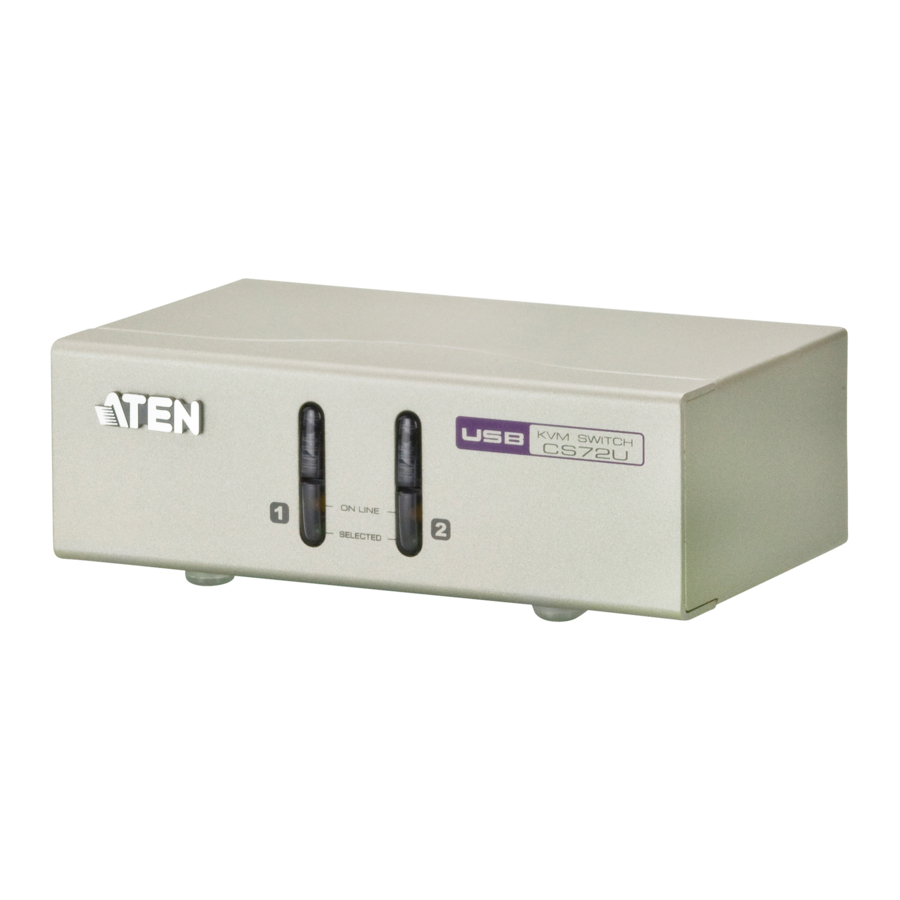

CS72U/CS74U Front View

  1. Port Selection Pushbuttons
  2. Port LEDs

CS72U/CS74U Rear View

  1. Console Keyboard, Mouse and Audio Ports
  2. Power Jack (optional)
  3. Console Monitor Port
  4. KVM Port Section

Installation

Installation

warningTo prevent damage to your installation from power surges or static electricity, it is important that all connected devices are properly grounded.

Cable Connections
To set up your CS72U / CS74U installation, refer to the installation diagram (the numbers in the diagrams correspond to the steps), and do the following:

  1. Plug your keyboard, mouse, speakers and microphone into the console USB speaker and microphone ports located on the unit's rear panel.
  2. Plug your console monitor into the VGA console port located in the unit's rear panel and power on the monitor.
  3. Using the custom KVM cable set (provided with this package), plug the custom SPHD connector into any available socket in the KVM port section of the switch
  4. At the other end of the cable, plug the USB, audio and VGA connectors into their respective ports on the computer.
  5. If you fi nd the power is insuffi cient, please use an external power adapter. Please contact your dealer to purchase the correct one for your model.
  6. Turn on the power to the computers.

Operation

The CS72U / CS74U features a convenient method to access the computers through Manual switching – which involves pressing the port selection pushbuttons located on the unit's front panel.

For manual port selection:
Press and release a port selection pushbutton to bring the KVM focus to the computer attached to its corresponding port. The Port LED lights bright green.

Note: Do not connect a KVM Extender to the KVM Switch to extend the distance as doing this deteriorates the video quality.

The full CS72U/CS74U user manual is available for download from the ATEN website (www.aten.com)

Specifications

Function CS72U CS74U
Computer Connections 2 4
Port Selection Front Panel Pushbuttons
Connectors Console Ports Keyboard 1 x USB Type A Female (Black)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (Black)
Microphone 1 x mini stereo Jack Female (Pink)
Speaker 1 x mini stereo Jack Female (Green)
KVM Ports

2 x SPHD-18

Female (Green)

4 x SPHD-18

Female (Green)

Power 1 x DC Jack (Spare)
LEDs On Line 2 (Orange) 4 (Orange)
Selected 2 (Green) 4 (Green)
Switches Selected 2 x Pushbuttons 4 x Pushbuttons
Video 2048 x 1536 @ 60 Hz; DDC2B
Power Consumption DC5V, 0.5W
Environment Operating Temp. 0–50ºC
Storage Temp. -20–60ºC
Humidity 0–80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.45 kg 0.64 kg
Dimensions (L x W x H) 13.00 x 7.45 x 4.20 cm 20.00 x 7.45 x 4.20 cm

FCC Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna;
  • Increase the separation between the equipment and receiver;
  • Connect the equipment into an outlet on a circuit different from that which the receiver is connected;
  • Consult the dealer/an experienced radio/television technician for help.

Online Registration
International:
http://support.aten.com

North America:
http://www.aten-usa.com/product_registration

Technical Phone Support
International:
886-2-86926959

North America:
1-888-999-ATEN Ext: 4988

United Kingdom:
44-8-4481-58923

All information, documentation, and specifi cations contained in this media are subject to change without prior notifi cation by the manufacturer. Please visit our website to fi nd the most up to date version.

© Copyright 2019 ATEN® International Co., Ltd.
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners.

This product is RoHS compliant.
