- Page 1 2-Port USB DisplayPort KVM Switch USER MANUAL CS782DP...
-
Page 2: Emc Information
EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Online Registration
Telephone Support International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 1-949-428-1111 Technical Support For international online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For North American technical support: Email Support support@aten-usa.com... -
Page 4: Package Contents
Copyright © 2020 ATEN International Co., Ltd. Manual Date: 2020-11-05 - Manual Part No. PAPE-1375-AT5G ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners. - 4 -... - Page 5 Overview The CS782DP takes a giant step forward from prior digital- interfaced KVM models by offering DisplayPort functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), a rich bass experience for 2.1 surround systems and a firmware upgrade function that allows you to keep up with latest available versions.
- Page 6 Features One DisplayPort video console controls two USB computers DisplayPort 1.2 compliant, HDCP compliant Computer selection via remote port selector, hotkeys, and USB mouse Multiplatform support – Windows, Mac, Sun, Linux Supports MST (Multi-Stream Transport) , enabling multiple monitors to be used via a single DisplayPort connector ...
- Page 7 Note: 1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice. 2. MST (Multi-Stream Transport) requires either monitors capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain.
-
Page 8: System Requirements

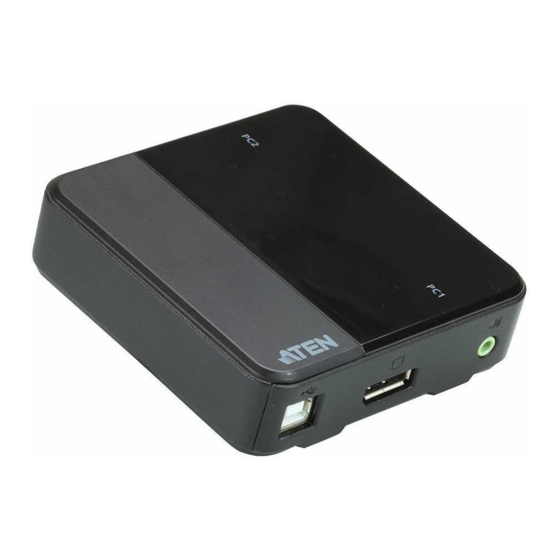

System Requirements Console A DisplayPort monitor capable of the highest resolution that you will be using on any computer in the installation A USB Keyboard and a USB Mouse Speakers (optional) Computers The following equipment must be installed on each computer that is to be connected to the system: ... - Page 9 Components CS782DP Console Port Computer Port 1 Computer Port 2 Component Description Console Audio Port Your console speakers plug in here. Console Monitor Port Your console DisplayPort monitor plugs in here. Console Keyboard Port Your console USB keyboard plugs in here. Console Mouse Port Your console USB mouse plugs in here.
-
Page 10: Installation
Installation 1. Make sure that the power to any device that you connect to the installation has been turned off. You must unplug the power cords of any computers that have the Keyboard Power On function. 2. To prevent damage to your installation from power surges or static electricity. -
Page 11: Installation Diagram
Note: By default, the switch links to the first computer that is powered on. The total cable length from the PC to monitor (including KVM) cannot exceed 3 meters. Choosing high quality cables helps to ensure that 4K resolutions can be reached. -
Page 12: Operation
Operation The CS782DP provides three convenient methods of selecting computers: Manual – click the pushbutton on the Remote Port Selector; Mouse – click the mouse’s scroll wheel; and Hotkey – enter combinations from the keyboard. Note: Wait a few seconds for the output device to stabilize and display the input source’s video content before switching to another one. -
Page 13: Hotkey Port Selection
Hotkey Port Selection All hotkey operations begin by tapping the Scroll Lock key twice. To toggle the KVM and Audio focus between the two ports, tap Scroll Lock twice and then press Enter. See the Hotkey Summary Table, page 14, for full details. Note: If using [Scroll Lock] conflicts with other programs, [Ctrl] can be used instead. -
Page 14: Hotkey Summary Table
Hotkey Summary Table Combination Function [Scroll [Enter] Toggles the KVM and Audio focus between the two ports. If the Lock] KVM and Audio focus are on different ports, only the KVM focus [Scroll switches. Lock] + [k] [Enter] Only toggles the KVM focus. [s] [Enter] Only toggles the Audio focus. -
Page 15: Scan Interval Table
Scan Interval Table Scan Interval Scan Interval 3 secs. 10 secs. 5 secs. (default) 20 secs. Keyboard Emulation PC Keyboard Mac Keyboard PC Keyboard Sun Keyboard [Shift] Shift [Ctrl] [T] Stop [Ctrl] Ctrl [Ctrl] [F2] Again [Ctrl] [F3] Props [Ctrl] [1] [Ctrl] [F4] Undo [Ctrl] [2]... -
Page 16: The Firmware Upgrade Utility
To upgrade the CS782DP’s firmware, do the following: 1. From a computer that is not part of your KVM installation, download the latest Firmware Upgrade package for the CS782DP from our Internet support site (www.aten.com). 2. There are two ways to complete this step ... -
Page 17: Upgrade Failed
Upgrade Failed If the Upgrade Succeeded screen doesn’t appear, it means that the upgrade failed to complete successfully, in which case you should do the following: 1. Disconnect the USB connectors on the KVM cables from the computer. 2. Press and hold the Remote Port Selector’s pushbutton. While you are still holding the pushbutton, reconnect the KVM cable’s USB connectors to the computer. -
Page 18: Specifications
Specifications Function CS782DP Computer Connections Port Selection Hotkey, Mouse, Remote Port Selector Connectors Console Ports 2 x USB Type A Female (Black) 1 x DisplayPort Female (Black) 1 x 3.5mm Audio Jack Female (Green) KVM Ports 2 x USB Type B Female (White) 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) -
Page 19: Factory Default Hotkey Settings
Factory Default Hotkey Settings Setting Default Port Switching [Scroll Lock] [Scroll Lock] Auto Scan Interval 5 seconds Keyboard Operating Platform PC Compatible Mouse Emulation Mouse Port-Switching Power on Detection Enabled - 19 -... -
Page 20: Limited Hardware Warranty
What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is defective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
