ATEN US234, US434, US3324, US3344 - 2x4 / 4x4 USB 3.1 Gen1 Peripheral Sharing Switch Manual

Hardware Review

US234 / US3324 Package Contents
1 USB 3.1 Gen Peripheral Sharing Switch
2 USB 3.1 Gen 1 Type-B to Type-A Cables 1.2M
1 USB 3.1 Gen 1 Type-B to Type-C Cable 1.8M (US3324 only)
1 Remote Port Selector
1 User Instructions

US434 / US3344 Package Contents
1 USB 3.1 Gen 1 Peripheral Sharing Switch
2 USB 3.1 Gen 1 Type-B to Type-A Cables 1.2M
2 USB 3.1 Gen 1 Type-B to Type-A Cables 1.8M
2 USB 3.1 Gen 1 Type-B to Type-C Cables 1.8M (US3344 only)
1 Remote Port Selector
1 User Instructions

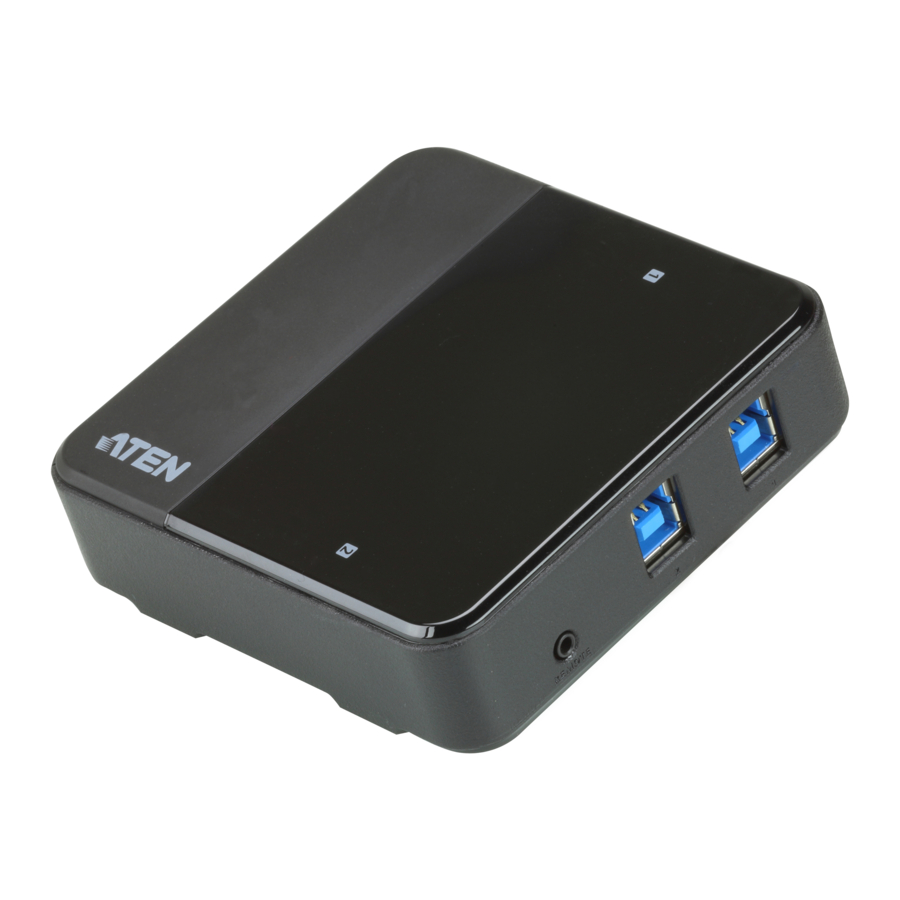

US234 / US434 / US3324 / US3344 Front, Top and Rear View

1. Console Indicator LED
2. USB 3.1 Gen 1 Device Ports
3. Micro USB Power Input
4. Remote Port Selector
5. PC Ports
6. Remote Port Selector Jack

Hardware Installation

1. Plug the USB 3.1 Gen 1 Type-A or Type-C end of the included USB cables into your computers (US234 / US3324: up to 2 computers; US434 / US3344: up to 4 computers) and plug the USB 3.1 Gen1 Type-B end of the included USB cables into the back of the US234 / US434 / US3324 / US3344.
2. Plug your USB peripheral devices into the US234 / US434 / US3324 / US3344.

   *Note: The US434 / US3344 is pictured above. The US234 / US3324 only has 2 PC ports.

3. Plug the Remote Port Selector into the Remote Port Selector jack on the US234 / US434 / US3324 / US3344.
4. Switch from one computer to another by pressing the Remote Port Selector.
   The Console Indicator LED will light to indicate which computer is connected.
5. (Optional) Connect the Micro USB Power Input port to a power source to support applications with higher power requirements.

Support and Documentation Notice

All information, documentation, firmware, software utilities, and specifications contained in this package are subject to change without prior notification by the manufacturer.

To reduce the environmental impact of our products, ATEN documentation and software can be found online at http://www.aten.com/download/

Technical Support

www.aten.com/support

Scan for more information
