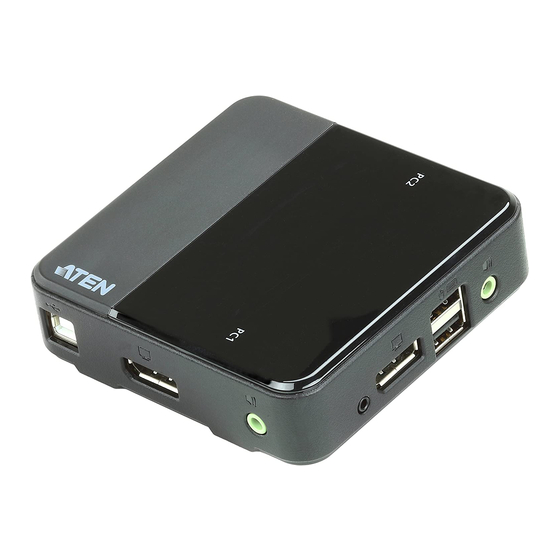

ATEN CS782DP User Manual

2-port usb displayport kvm switch
Hide thumbs Also See for CS782DP:
Table of Contents

Advertisement

Quick Links

Download this manual
CS782DP
2-Port USB DisplayPort
KVM Switch
User Manual
© Copyright 2022 ATEN
®
International Co. Ltd.
ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All
rights reserved. All other trademarks are the property of their respective owners.
Part No. PAPE-1375-AT5G
Released: 04/2022

Advertisement

Table of Contents
loading

Related Manuals for ATEN CS782DP

Summary of Contents for ATEN CS782DP

  • Page 1 User Manual © Copyright 2022 ATEN ® International Co. Ltd. ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners. Part No. PAPE-1375-AT5G Released: 04/2022...

  • Page 2: Compliance Statements

    Compliance Statements FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 Industry Canada Statement This Class A digital apparatus complies with Canadian ICES- 003. RoHS This product is RoHS compliant. - 3 -...
  • Page 4 Telephone Support International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 1-949-428-1111 Technical Support  For international online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com  For North American technical support: Email Support support@aten-usa.com...

  • Page 5: Package Contents

    Check to make sure that all the components are in working order. If you encounter any problem, please contact your dealer. The CS782DP 2-Port USB DisplayPort KVM Switch package contains the following items:  1 CS782DP 2-Port USB DisplayPort KVM Switch ...
  • Page 6 USB mouse to change ports. Finally, the CS782DP's new Power on detection feature means that if one of the computers is powered off, the CS782DP will automatically switch to the other computer if powered-on. Featuring an unbeatable combination of DisplayPort functionality, USB 2.0 peripheral sharing convenience and...
  • Page 7 DisplayPort connector  Compatible with widescreen LCD monitors  Power on detection – if either of the computers is powered off, the CS782DP will automatically switch to the other computer  Audio-enabled – full bass response provides a rich experience for 2.1 channel surround sound systems...
  • Page 8 2. Mac / Sun keyboards work only with their own computers. 6. This feature may require an extra power adapter to be connected to the USB hub and that the CS782DP’s Mouse Emulation Mode be disabled. - 8 -...

  • Page 9: System Requirements

     USB Type-A port  Speaker port (optional) Cables Two DisplayPort cables, two USB 2.0 cables and two 3.5mm audio jack cables included with the CS782DP package Operating Systems Supported operating systems are shown in the table, below: Version Windows 2000 / XP / Vista / 7 / 8 / 8.1 / 10...
  • Page 10 Components CS782DP Console Port Computer Port 1 Computer Port 2 Component Description console audio Your console speakers plug in here. port console monitor Your console DisplayPort monitor port plugs in here. console keyboard Your console USB keyboard plugs in port here.
  • Page 11 Component Description port LEDs The port LEDs indicate status. The LED lights on to indicate that the computer attached to the corresponding port is selected and has the KVM focus. The LED flashes to indicate that the computer attached to its corresponding port is being scanned by the Auto Scan function.

  • Page 12: Installation

    (122 °F). 1. Plug your keyboard and mouse into the console keyboard / mouse ports located on the front side of the CS782DP. The ports are labeled with icons with the mouse port on the top and the keyboard port on the bottom.
  • Page 13  The total cable length from the PC to monitor (including KVM) cannot exceed 3 meters.  Choosing high quality cables helps to ensure that 4K resolutions can be reached.  Make sure the computers and devices that the CS782DP connects to are also properly grounded. - 13 -...
  • Page 14 Installation Diagram PC 1 Console PC 2 - 14 -...

  • Page 15: Operation

    Operation The CS782DP provides three convenient methods of selecting computers: Manual – click the pushbutton on the Remote Port Selector; Mouse – click the mouse’s scroll wheel; and Hotkey – enter combinations from the keyboard. Note: Wait a few seconds for the output device to stabilize and display the input source’s video content before switching...
  • Page 16 Hotkey Port Selection All hotkey operations begin by tapping the Scroll Lock key twice. To toggle the KVM and Audio focus between the two ports, tap Scroll Lock twice and then press Enter. See the Hotkey Summary Table, page 16, for full details. Note: If using [Scroll Lock] conflicts with other programs, [Ctrl] can be used instead.
  • Page 17 Combination Function [a] [Enter] Starts Auto Scan. The KVM focus cycles from port to port at n second intervals. Note: Replace n with a number between 1 and 4 (see Scan Interval Table below). To exit Auto Scan, press [Esc] or [Spacebar].
  • Page 18 Combination Function [F4] Lists current switch settings. [Enter] To see a list of current switch settings, do the following: 1. Open a text editor or word processor and place the cursor in the page window. 2. Invoke hotkey. 3. Press [F4] and [Enter] to display the settings in the text editor or word processor.

  • Page 19: Keyboard Emulation

    Scan Interval Table Scan Interval Scan Interval 3 secs. 10 secs. 5 secs. (default) 20 secs. Keyboard Emulation PC Key- PC Key- Mac Keyboard Sun Keyboard board board [Shift] Shift [Ctrl] [T] Stop [Ctrl] Ctrl [Ctrl] [F2] Again [Ctrl] [F3] Props [Ctrl] [1] [Ctrl] [F4]...
  • Page 20 PC Key- PC Key- Mac Keyboard Sun Keyboard board board [Ctrl] [H] Help [Ctrl] Compose  Note: When using key combinations, press and release the first key (Ctrl), then press and release the activation key. - 20 -...

  • Page 21: The Firmware Upgrade Utility

    USB port on the computer you have downloaded the Firmware Upgrade package to. Then, use the keyboard connected to the CS782DP to key in the following hotkeys: "u""p""g""r""a""d""e". 3. The CS782DP now enters Firmware Upgrade Mode. The two Ports LEDs flash together to indicate that the unit is in Firmware Upgrade Mode.
  • Page 22 7. Select your device. Its description appears in the Device Description panel. Click Next to perform the upgrade. As the upgrade proceeds, status messages appear in the Status Messages panel, and the progress towards completion is shown in the Progress bar. 8.

  • Page 23: Upgrade Failed

    2. Press and hold the Remote Port Selector’s pushbutton. While you are still holding the pushbutton, reconnect the KVM cable’s USB connectors to the computer. 3. Power on the CS782DP. Follow steps 3 to 9 on pages 16-17 again. Troubleshooting...
  • Page 24 Possible Symptom Action Cause Mouse port- Mouse does not This feature is only supported switching support this by USB 3-key scroll wheel function is function. mice. Mouse Enable mouse emulation. See responding. emulation is , page 18, for details. disabled. Cannot Keyboard is Switch to the alternate hotkey...

  • Page 25: Specifications

    Specifications Function CS782DP Computer Connections Port Selection Hotkey, Mouse, Remote Port Selector Connectors Console Ports 2 x USB Type A Female (Black) 1 x DisplayPort Female (Black) 1 x 3.5mm Audio Jack Female (Green) KVM Ports 2 x USB Type B Female...
  • Page 26 Function CS782DP Scan Interval 3, 5, 10, 20 seconds (Default: 5 secs.) Power Consumption DC 5V, 4W Environmental Operating 0–50ºC Temperature Storage -20–60ºC Temperature Humidity 0–80% RH, Non-condensing Physical Housing Plastic Properties Weight 0.12 kg Dimensions 9.37 x 9.30 x 2.68 cm...

  • Page 27: Factory Default Hotkey Settings

    Factory Default Hotkey Settings Setting Default Port Switching [Scroll Lock] [Scroll Lock] Auto Scan Interval 5 seconds Keyboard Operating Platform PC Compatible Mouse Emulation Mouse Port-Switching Power on Detection Enabled - 27 -...

  • Page 28: Limited Hardware Warranty

    What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or...
