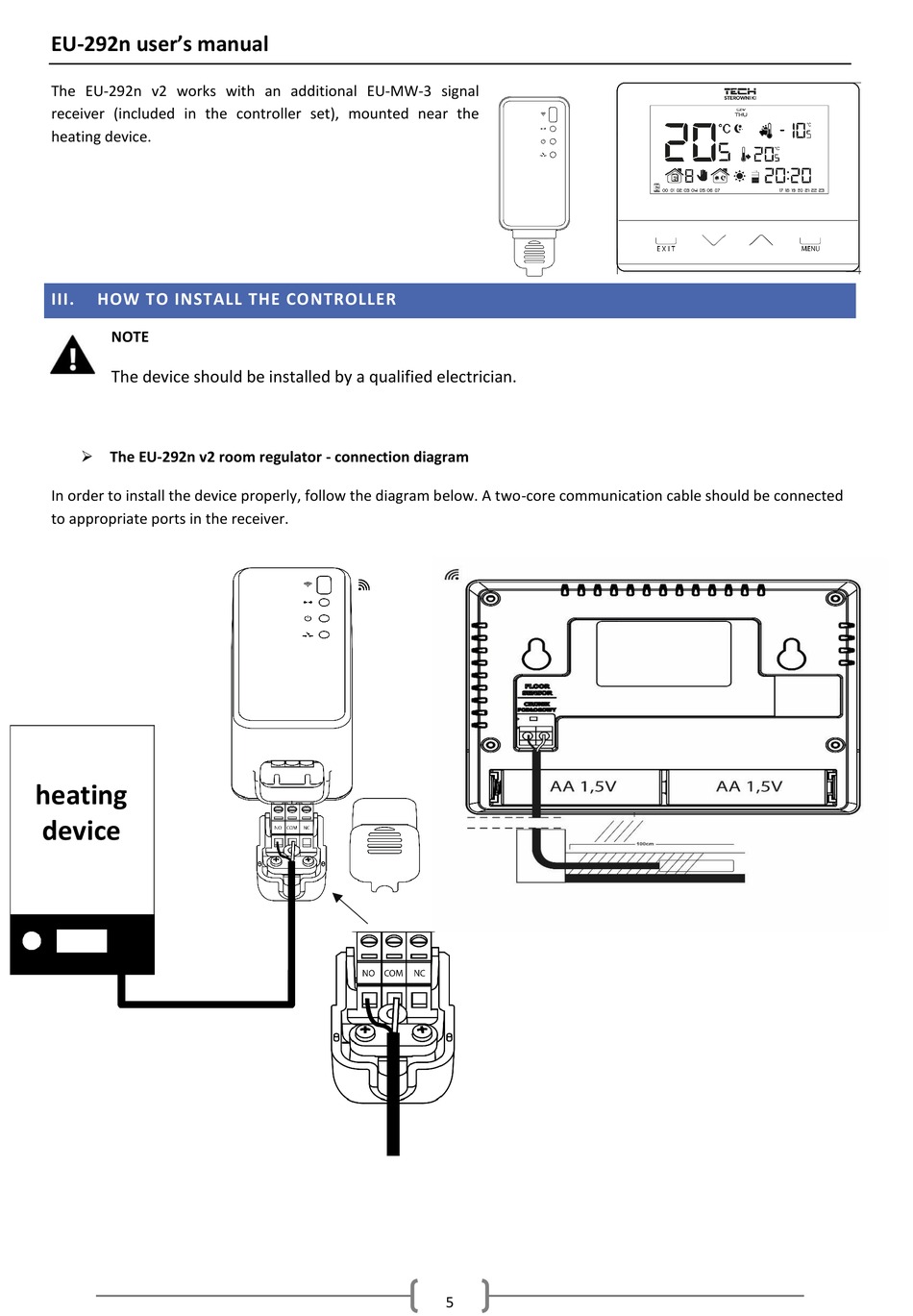

EU-292n user's manual
The EU-292n v2 works with an additional EU-MW-3 signal
receiver (included in the controller set), mounted near the
heating device.
III.
HOW TO INSTALL THE CONTROLLER
NOTE
The device should be installed by a qualified electrician.
The EU-292n v2 room regulator - connection diagram
In order to install the device properly, follow the diagram below. A two-core communication cable should be connected
to appropriate ports in the receiver.
heating
device
5
