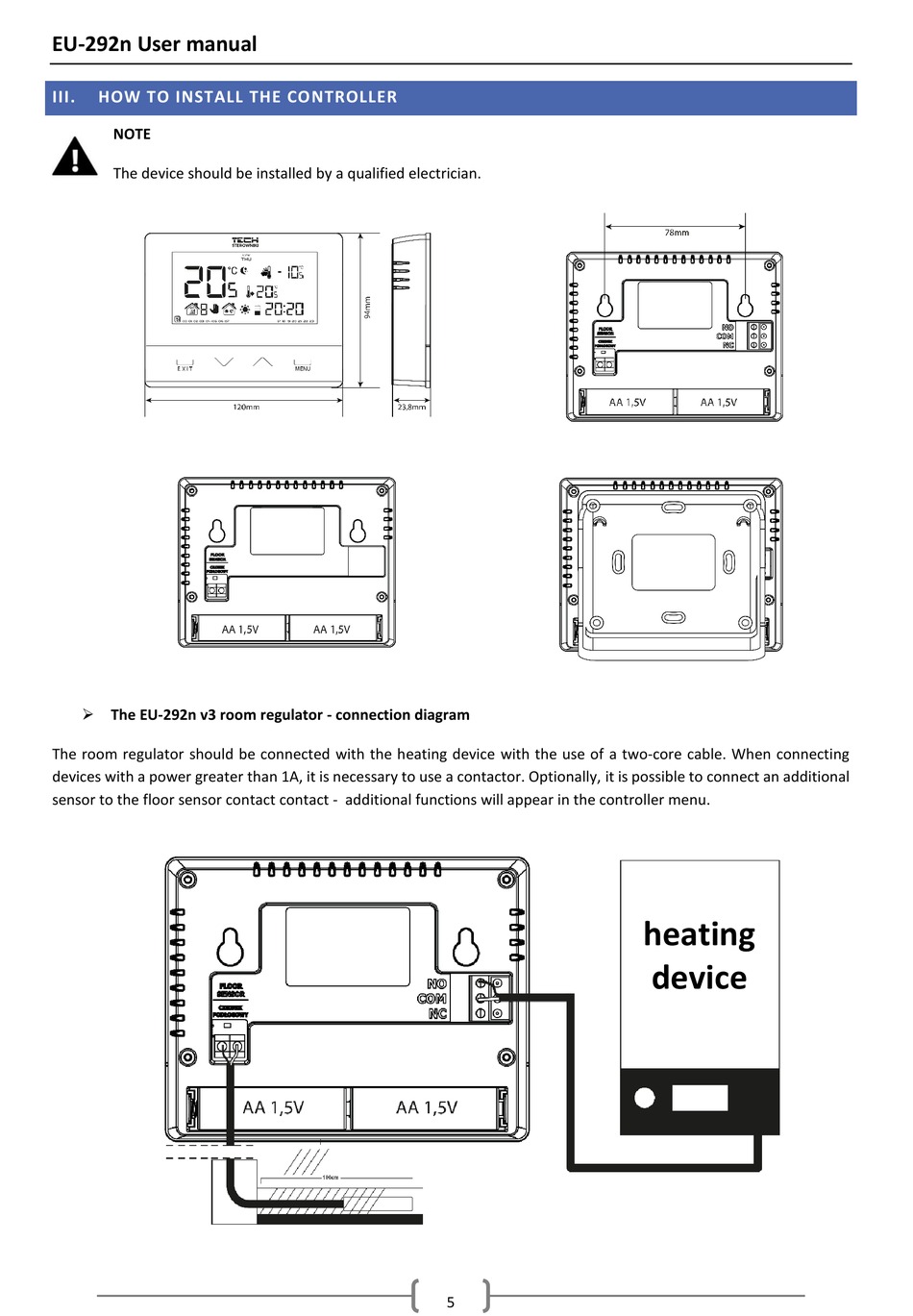

EU-292n User manual
III.
HOW TO INSTALL THE CONTROLLER
NOTE
The device should be installed by a qualified electrician.
The EU-292n v3 room regulator - connection diagram
The room regulator should be connected with the heating device with the use of a two-core cable. When connecting
devices with a power greater than 1A, it is necessary to use a contactor. Optionally, it is possible to connect an additional
sensor to the floor sensor contact contact - additional functions will appear in the controller menu.
5
heating
device
