TABLE OF CONTENTS Safety ....................................3 Device description ................................4 III. How to install the controller ............................5 Main screen description ..............................8 Controller functions ............................... 10 Operation modes ................................11 Language ..................................11 Time settings ................................11 Screen settings ................................11 Screensaver .................................. -
Page 3: Safety
SAFETY Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries or controller damage. The user’s manual should be stored in a safe place for further reference. -
Page 4: Device Description

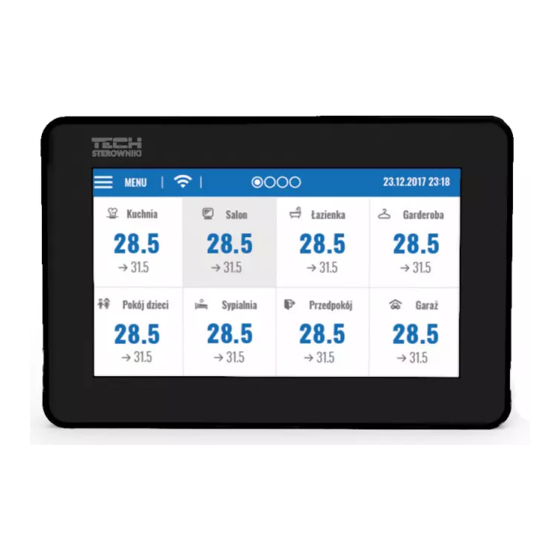

EU-M-9t control panel may be used to adjust the settings in other zones - pre-set temperature, floor heating. NOTE Only one EU-M-9t control panel may be installed in a heating system. The panel may control up to 32 heating zones. Controller functions and equipment: ... -
Page 5: How To Install The Controller
In order to mount the panel on the wall, screw the rear part of the housing onto the wall (1) and slide the device into to (2). The EU-M-9t panel works with an additional MZ-RS power supply (3) included in the set, mounted near the heating device. - Page 6 In order to mount another control panel, connect a four-core cable to appropriate ports using the diagram below. NOTE Make sure the wires are connected properly.
-
Page 8: Main Screen Description
MAIN SCREEN DESCRIPTION The touch screen enables convenient and intuitive operation of the controller. 1. Enter controller menu 2. WiFi signal strength 3. Question mark icon – tap here to open up a screen with current external temperature, contact status and pump status. - Page 9 9. Current zone temperature 10. Pre-set zone temperature EU-M-9t control panel is a master controller, which enables the user to change the pre-set zone parameters regardless of the regulator or room sensor used in the zone. In order to enter the settings of a given zone, tap on the zone status. The screen will show basic zone editing screen: 1.
-
Page 10: Controller Functions
CONTROLLER FUNCTIONS Normal mode Blok diagram – controller menu Eco mode Operations mode Holiday mode Language Comfort mode Download Time settings Clock Date Screen brightness Blank screen time Screen settings Screen blanking time Select animation Animation duration No screensaver Clock Screensaver Date Theme 1-3... -
Page 11: Operation Modes
NOTE It is possible to register up to four EU-L-9r external controllers to EU-M-9t panel. In order for the registration process to be successful, it is necessary to register the external controllers one by one. If the registration process is activated in more than one external controller at a time, it will end up in failure. -
Page 12: Protections
The website offers multiple tools for controlling your heating system. In order to take full advantage of the technology, create your own account:, once logged in, register the module. The EU-M-9t control panel in Wi-Fi →Registration generates a code which should be entered while registering the new module. -
Page 13: Home Tab
2. HOME TAB Home tab displays the main screen with tiles illustrating the current status of particular heating system devices. Tap on the tile to adjust the operation parameters Screenshot presenting an example tab with main menu parameters NOTE „No communication” message means that the communication with the temperature sensor in a given zone has been interrupted. - Page 14 Tap on Schedule icon to open up the schedule selection screen: Screenshot presenting weekly schedule choice Two types of weekly schedules are available in EU-M-9t controller: 1. Local schedule It is a weekly schedule assigned to a particular zone. Once the controller detects the room sensor, the schedule is assigned automatically to the zone.
-
Page 15: Zones Tab
After selecting the schedule select OK and move on to edit the weekly schedule settings: Screenshot showing the screen for editing the settings of the weekly schedule Editing enables the user to define two programs and select days when the programs will be active (e.g. from Monday to Friday and the weekend). -
Page 16: Menu Tab
4. MENU TAB In Menu tab, the user may activate one of four operation modes: normal, holiday, Eco or comfort. 5. STATISTIGS TAB Statistics tab enables the user to view the temperature values for different time periods e.g. 24h, a week or a month. It is also possible to view the statistics for the previous months. -
Page 17: Protections And Alarms
VII. PROTECTIONS AND ALARMS Alarm type Possible cause How to fix it Sensor damaged (room sen- Sensor short circuit or damage – Check the connection with the sor, floor sensor) sensor – Replace the sensor with a new one; if necessary contact the service staff. No communication with the - Out of range - Put the sensor/regulator in a... - Page 18 Alarm actuator STT-869 ERROR #1 – Calibration error - The limit switch sensor is damaged - Call the service staff 1 – Moving the screw to the mounting position took too much time ERROR #2 – Calibration error - The actuator has not been screwed to - Check if the controller has been 2 –...
-
Page 19: Technical Data
5°C ÷ 50°C EU Declaration of Conformity Hereby, we declare under our sole responsibility that EU-M-9t manufactured by TECH STEROWNIKI, head-quartered in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with Directive 2014/53/EU of the European parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC (EU OJ L 153 of 22.05.2014, p.62), Directive 2009/125/EC of... - Page 20 Wieprz, 15.10.2020...
