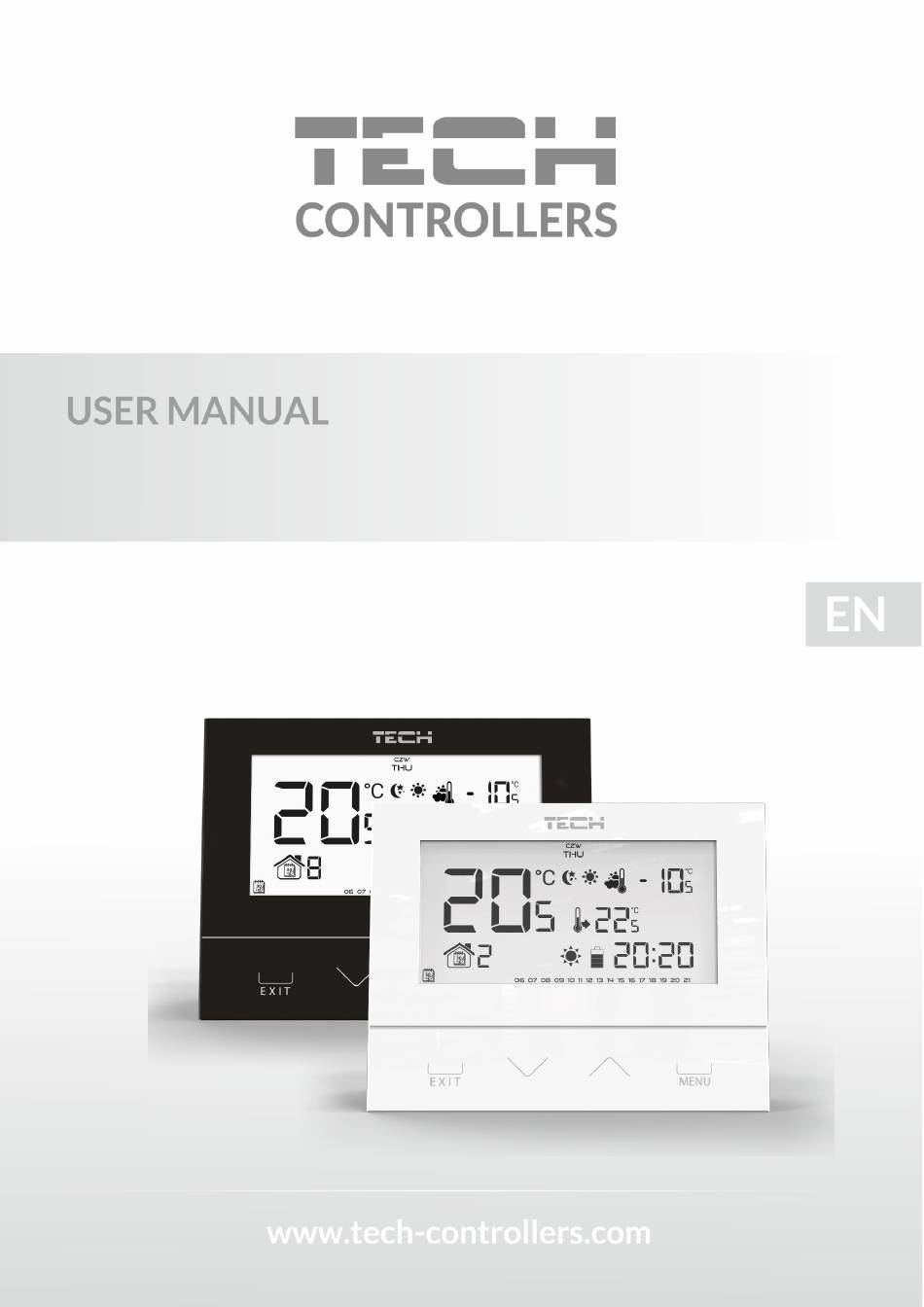

- Page 1 EU-292n user’s manual EU-292n v2...
-
Page 2: Table Of Contents
TECH TABLE OF CONTENTS Safety .................................... 3 Device description ................................ 4 III. How to install the controller ............................5 Wireless controller receiver ............................7 First start-up ................................. 8 How to use the controller ............................. 8 Principle of operation ............................... 8 Operation modes .............................. -
Page 3: Safety
EU-292n user’s manual SAFETY Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries or controller damage. The user’s manual should be stored in a safe place for further reference. -
Page 4: Device Description
TECH DEVICE DESCRIPTION The EU-292n v2 room regulator is intended for controlling the heating or cooling device (e.g. gas, oil or electric boiler or the boiler controller). Its main task is to maintain the pre-set temperature in the flat by sending a signal to the heating/cooling device (contact opening) when the desired temperature is reached. -
Page 5: How To Install The Controller
EU-292n user’s manual The EU-292n v2 works with an additional EU-MW-3 signal receiver (included in the controller set), mounted near the heating device. III. HOW TO INSTALL THE CONTROLLER NOTE The device should be installed by a qualified electrician. The EU-292n v2 room regulator - connection diagram In order to install the device properly, follow the diagram below. - Page 6 TECH heating device The EU-292n v2 regulator can be used as a wall-mountable panel or it can placed on any surface using a stand included in the set.
-
Page 7: Wireless Controller Receiver
Registration of the EU-MW-3 receiver: 1. Press the registration button on the EU-MW-3 receiver. 2. In order to register the relays, select the "Reg" function in the Menu of the EU-292n v2 regulator and hold the Menu button or press one of the buttons . -
Page 8: First Start-Up
TECH FIRST START-UP In order for the EU-292n v2 controller to operate correctly, follow these steps when starting the device for the first time: 1. Insert the batteries - in order to do it, remove the controller back cover. 2. If the room regulator is to control the floor heating system, connect an additional sensor to the floor sensor connector. - Page 9 EU-292n user’s manual Weekly control This mode enables the user to define the time when the pre-set comfort temperature and the pre-set economical temperature will apply. The user may set 9 different programs divided into three groups: PROGRAMS 1÷3 –...
-
Page 10: Main Screen View And Description
TECH Example 2 – manual mode activation in weekly control mode When Weekly control is active, the user changes the pre-set temperature by pressing one of the buttons which automatically activates manual mode. The controller returns to weekly control mode when, according to the weekly schedule, economical temperature changes into comfort temperature (or the other way round) or when the user presses EXIT. - Page 11 EU-292n user’s manual 1. Day of the week 2. An icon informing about current economical temperature (resulting from weekly control or day/night mode settings). 3. An icon informing about current comfort temperature (resulting from weekly control or day/night mode settings). 4.
-
Page 12: Controller Functions
TECH Parameter icons: Clock settings Floor sensor Day from... Comfort temperature Night from... Economical temperature Optimum start Hysteresis Button lock Temperature sensor calibration Weekly control settings 4. CONTROLLER FUNCTIONS The user navigates the menu structure using , EXIT and MENU. In order to edit particular parameters, press MENU. -
Page 13: Block Diagram - Main Menu
EU-292n user’s manual 4.1. BLOCK DIAGRAM - MAIN MENU Day of the week Clock settings Day from... Night from... Button lock Optimum start Automatic manual mode Weekly program Pre-set comfort temperature Pre-set economical temperature Pre-set temperature hysteresis Temperature sensor calibration Registration Floor sensor Maximum floor temperature*... -
Page 14: Clock Settings
TECH 4.3. CLOCK SETTINGS In order to set current time, press MENU until time setting panel is displayed on the screen. By pressing set the hour and minutes. Press MENU to confirm and move on to the next parameter or press EXIT to confirm and return to the main screen view. -
Page 15: Optimum Start
EU-292n user’s manual 4.7. OPTIMUM START Optimum start is an intelligent system controlling the heating/cooling process. It involves constant monitoring of the heating/cooling system efficiency and using the information to activate the heating/cooling in advance in order to reach the pre-set temperatures. Room temperature - Room temperature - OPTIMUM START OFF... -
Page 16: Weekly Program
TECH 4.9. WEEKLY PROGRAM This function is used to change the current weekly control program and edit the weekly programs. HOW TO CHANGE WEEKLY PROGRAM NUMBER When weekly control is enabled (see: VII.2. Operation modes) the current program is activated. In order to choose the program number, press MENU until weekly program settings appear on the screen. - Page 17 EU-292n user’s manual STEP 2 – SELECT DAYS OF THE WEEK If the user wants to edit programs 1÷3, there is no possibility of selecting particular days of the week as the setting applies to each day. If the user wants to edit programs 4÷6 , it is possible to edit the settings for weekdays and the weekend separately. Press MENU briefly in order to select.
-
Page 18: Pre-Set Comfort Temperature
TECH NOTE When the user finishes the editing process by pressing EXIT button, the controller returns to the main screen view and this program is selected as the current program. 4.10. PRE-SET COMFORT TEMPERATURE Pre-set comfort temperature is used in weekly control mode and day/night mode. -
Page 19: Registration
EU-292n user’s manual 4.14. REGISTRATION The description of the functions can be found in chapter IV. Wireless controller receiver . 4.15. FLOOR SENSOR Use one of the buttons to enable the floor sensor (ON) or disable it (OFF). To confirm, press the MENU button (confirm and go on to edit the next parameter) or press EXIT to confirm and return to the main screen view. -
Page 20: Service Menu
TECH 4.19. SERVICE MENU Certain controller functions are secured with a code. They can be found in the service menu. In order to introduce changes in the service menu settings, press MENU until Service menu settings screen opens up. Next, use the buttons to enter the code - 215. -
Page 21: Technical Data
EU-292n user’s manual VII. TECHNICAL DATA EU-292n v2 Power supply 2xAA 1,5V batteries Range of room temperature setting C ÷ 35 Accuracy of measurement ± 0,5 Operation frequency 868 MHz EU-MW-3 Supply voltage 230V ± 10% / 50Hz Operation temperature 5°C ÷... - Page 22 TECH Hereby, we declare under our sole responsibility that EU-292n v2 manufactured by TECH STEROWNIKI, head-quartered in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with Directive 2014/53/EU of the European parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the...
- Page 23 EU-292n user’s manual...
- Page 24 TECH...
