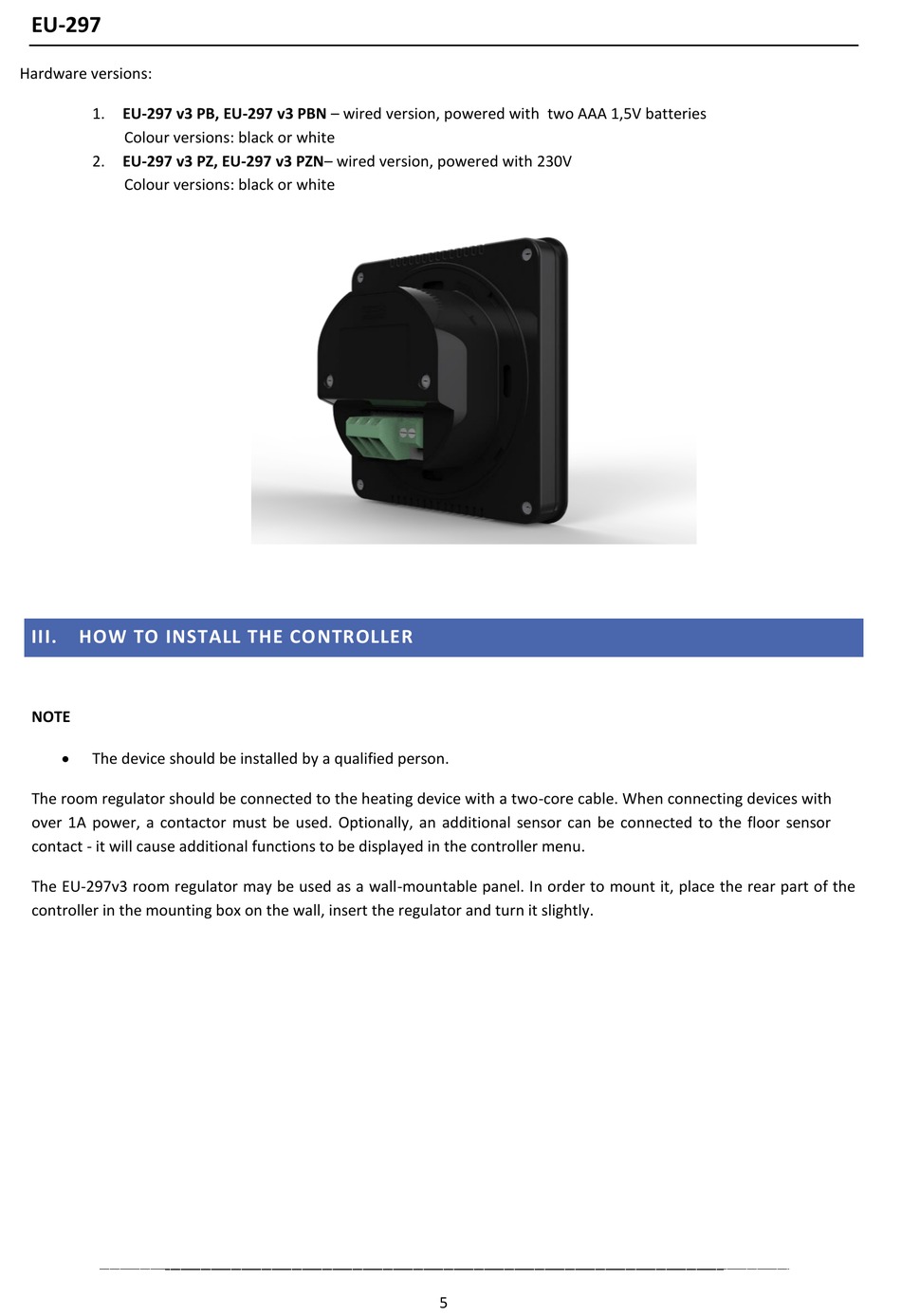

EU-297
Hardware versions:
1. EU-297 v3 PB, EU-297 v3 PBN – wired version, powered with two AAA 1,5V batteries
Colour versions: black or white
2. EU-297 v3 PZ, EU-297 v3 PZN– wired version, powered with 230V
Colour versions: black or white
III.
HOW TO INSTALL THE CONTROLLER
NOTE
The device should be installed by a qualified person.
The room regulator should be connected to the heating device with a two-core cable. When connecting devices with
over 1A power, a contactor must be used. Optionally, an additional sensor can be connected to the floor sensor
contact - it will cause additional functions to be displayed in the controller menu.
The EU-297v3 room regulator may be used as a wall-mountable panel. In order to mount it, place the rear part of the
controller in the mounting box on the wall, insert the regulator and turn it slightly.
5
