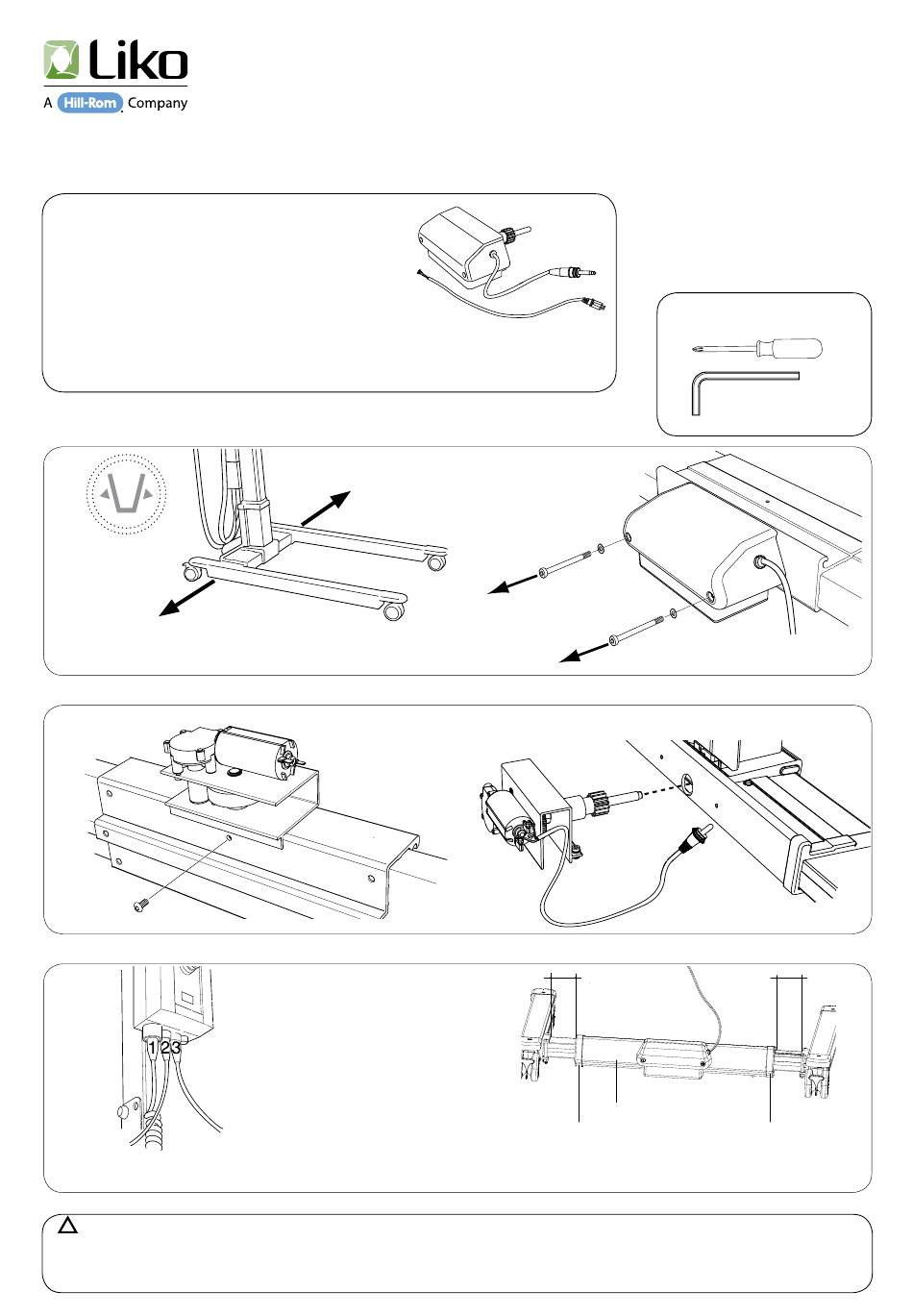

Hill-Rom Golvo 5.275 Assembly Instruction Manual

Hill-Rom Golvo 5.275 Assembly Instruction Manual

Motor for base width adjustment golvo, grey
Hide thumbs

Advertisement

Quick Links

Download this manual
Contains:
Motor for Base with Adjustment
Motor cable Mini Fit (for Golvo 8000/8008) 1
Fits:
Golvo 7000/7007 (all models)
Golvo 8000/8008 (all models)
Golvo 7000/7007 (all models):
1.
Adjust the width almost to the outer position.
Disconnect the motor cable from the control box
3.
5.
Assemble the Motor in reverse order.
Connect the cable for base motor to socket number 3.
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.
© Copyright Liko AB
Golvo™
Motor for Base width Adjustment Golvo, grey
Qty:
1
2.
4.
6.
After mounting: The distance A & B must be the same.
Note! The cover profiles (C) must be fixed to the
middle beam (D).
61
Motorpaket komplett Golvo, grå
Assembly Instruction
Monteringsanvisning
Prod. No. 20090059
A
D
C
5.274
3SE630216-05
2014-02-18
Tools required:
2,5 mm
4 mm
B
C
www.liko.com
www.liko.com
