Follett Symphony Plus 12 Series Installation Manual
Ice and water dispensers
Hide thumbs
Also See for Symphony Plus 12 Series:
- Installation, operation and service manual (60 pages) ,
- Installation manual (17 pages) ,
- Operation and service manual (56 pages)
Table of Contents
Advertisement
Quick Links
Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding
after-the-sale support. To ensure that this equipment delivers that same degree of service, review this guide carefully
before you begin your installation.
Should you have need technical help, please call our Technical Service group at (877) 612-5086 or (610) 252-7301.
Please have your model number, serial number and complete and detailed explanation of the problem when
contacting Technical Service.
Getting Started
After uncrating and removing all packing material. Inspect the equipment for concealed shipping damage. All freight
is to be inspected upon delivery. If visible signs of damage exist, please refuse delivery or sign your delivery receipt
"damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed
photos of the damage with the original packaging so that we may start the freight claim process.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com

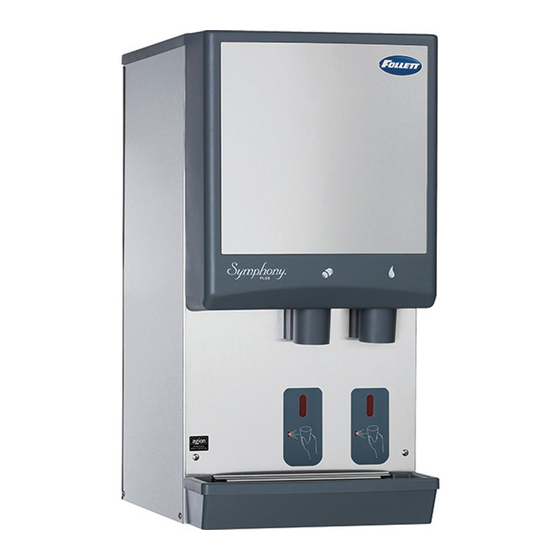

Symphony Plus
Ice and Water Dispensers
Please visit https://www.follettice.com/technicaldocuments
for the Operation and Service manual for your unit.
12 Series
™
R290, 230 V/50 Hz
Installation Guide
Installation and Service Videos:
www.follettice.com/servicevideolibrary
01518968R02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Follett Symphony Plus 12 Series
Summary of Contents for Follett Symphony Plus 12 Series
- Page 1 If visible signs of damage exist, please refuse delivery or sign your delivery receipt "damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed photos of the damage with the original packaging so that we may start the freight claim process.
- Page 2 § This appliance must not be cleaned by a water jet. § User maintence should not be done by children. § Follett recommends a Follett water filter system be installed in the ice machine inlet water line (standard capacity #00130229, high capacity #00978957, carbonless high capacity #01050442).
-
Page 3: Specifications
Specifications 22.625" (57.5 cm) air exhaust 32.00" (82.6 cm) 3/4" MPT drain 3/8" FPT water inlet intake 4.00" 18.00" 16.00" (10.2 cm) (45.8 cm) (40.7 cm) power cord 23.5" (59.7 cm) Front View Side View Rear View Electrical § 230 V, 50 Hz, 1 phase, 5.5A §... -
Page 4: Refrigeration Pressure Data
Refrigeration pressure data Air-Cooled ice machine capacity/24hrs Ambient Air Temperature F/C lbs. lbs. lbs. lbs. lbs. Compressor data Air-cooled Ambient air temperature 50 F/10 C 70 F/21.1 C 90 F/32.2 C 110 F/43.3C 230 V 230 V 230 V 230 V Amperage High-side pressure (PSIG) Low-side pressure (PSIG) -
Page 5: Installation
Installation Before you begin § All dispensers must be installed level in both directions to ensure proper operation. § Service and ventilation clearances: 6" (15.3 cm) on right side of dispenser, 6" (15.3 cm) at top for ventilation and 12" (30.5 cm) at top recommended for service. §... - Page 6 Follett recommends sanitizing the pressurized water lines prior to cleaning the ice machine/dispenser. Follett offers two kits: order P/N 01089572 when a Follett filter system with a pre-filter bowl is present, or P/N 01089580 when a Follett filter system is not present. Follow the instructions provided with the respective kits to sanitize the pressurized water lines immediately before cleaning the ice machine/dispenser.
-
Page 7: Semi-Annually (More Often If Conditions Dictate)
CAUTION! § Wear rubber gloves and safety goggles (or face shield) when handling SafeCLEAN Plus. § Use only Follett approved cleaners. § Do not use solvents, abrasive cleaners, metal scrapers or sharp objects to clean any part of the dispenser. - Page 8 § SafeCLEAN Plus ice machine cleaner SafeCLEAN Plus Solution: Follow the directions on the SafeCLEAN Plus packaging to mix 1 gal. (3.8 L) of Follett SafeCLEAN Plus solution. Use 100 F (38 C) water. Ice Machine and Dispenser Cleaning procedure Note: Check drains and drain cup to ensure they are open and flowing freely.
-
Page 9: Electrical System
Electrical system ATTENTION! To prevent circuit breaker overload, wait 15 minutes before restarting this unit. This allows the compressor to equalize and the evaporator to thaw. Normal control board operation The PC board indicator lights provide all the information necessary to determine the machine's status. Green indicator lights generally represent “go”... -
Page 10: Wiring Diagram - 230 V 50 Hz
Wiring diagram - 230 V 50 Hz E12CI414A R290, 230 V 50 Hz... - Page 11 E12CI414A R290, 230 V 50 Hz...
-
Page 12: Dispenser Troubleshooting
Dispenser troubleshooting CAUTION! § Disconnect power to unit before putting hands or arms in storage area or attempting any repair or service to equipment. Before calling for service 1. Check that no ice is in the dispenser bin area. 2. Check that congealed ice is not causing a jam. 3. - Page 13 Warranty Registration and Equipment Evaluation Thank you for purchasing Follett ® equipment. Our goal is to deliver high value products and services that earn your complete satisfaction by delivering high-value products and services backed by outstanding customer and technical support.
- Page 14 E12CI414A R290, 230 V 50 Hz...
- Page 15 E12CI414A R290, 230 V 50 Hz...
- Page 16 Dow Corning is a registered trademark of Dow Corning Corporation in the United States and other countries. SafeCLEAN, SaniSponge, SensorSAFE, and Symphony Plus are trademarks of Follett Products, LLC. Follett is a registered trademarks of Follett Products, LLC, registered in US.
