Symphony Plus
25 and 50 Series
™
Ice and Water Dispensers
C/E25CI425A, C/E50CI425A
Installation, Operation and Service Manual
Serial numbers below K39864
C/E25/50CI425A-SI Countertop
C/E25/50CI425A-LI Countertop Ice-only
Ice-only Dispenser with
Dispenser with Lever Dispensing
SensorSAFE™ Dispensing

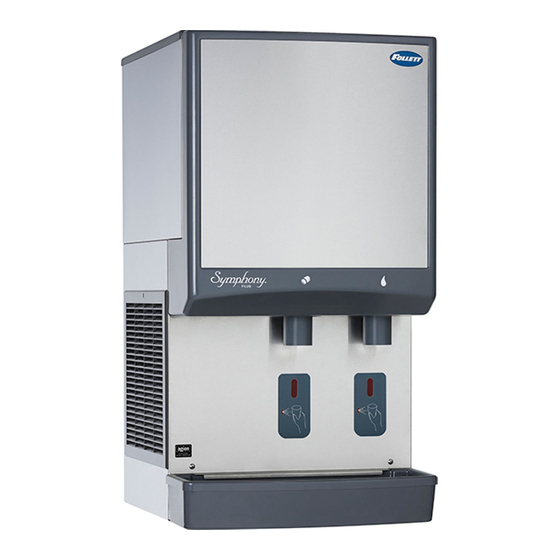

C/E25/50CI425A-S Countertop Dispenser
C/E25/50CI425A-L Countertop Dispenser
with SensorSAFE™ Dispensing
with Lever Dispensing
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Order parts online:
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
www.follettice.com
01083872R01
