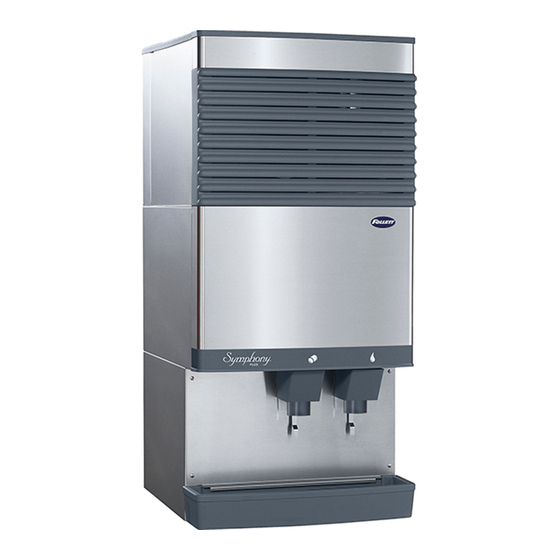

Follett Symphony Plus 110CT425A Installation, Operation And Service Manual
Ice and water dispensers
Hide thumbs
Also See for Symphony Plus 110CT425A:
- Operation and service manual (36 pages) ,
- Operation and service manual (36 pages)
Table of Contents
Advertisement
Quick Links

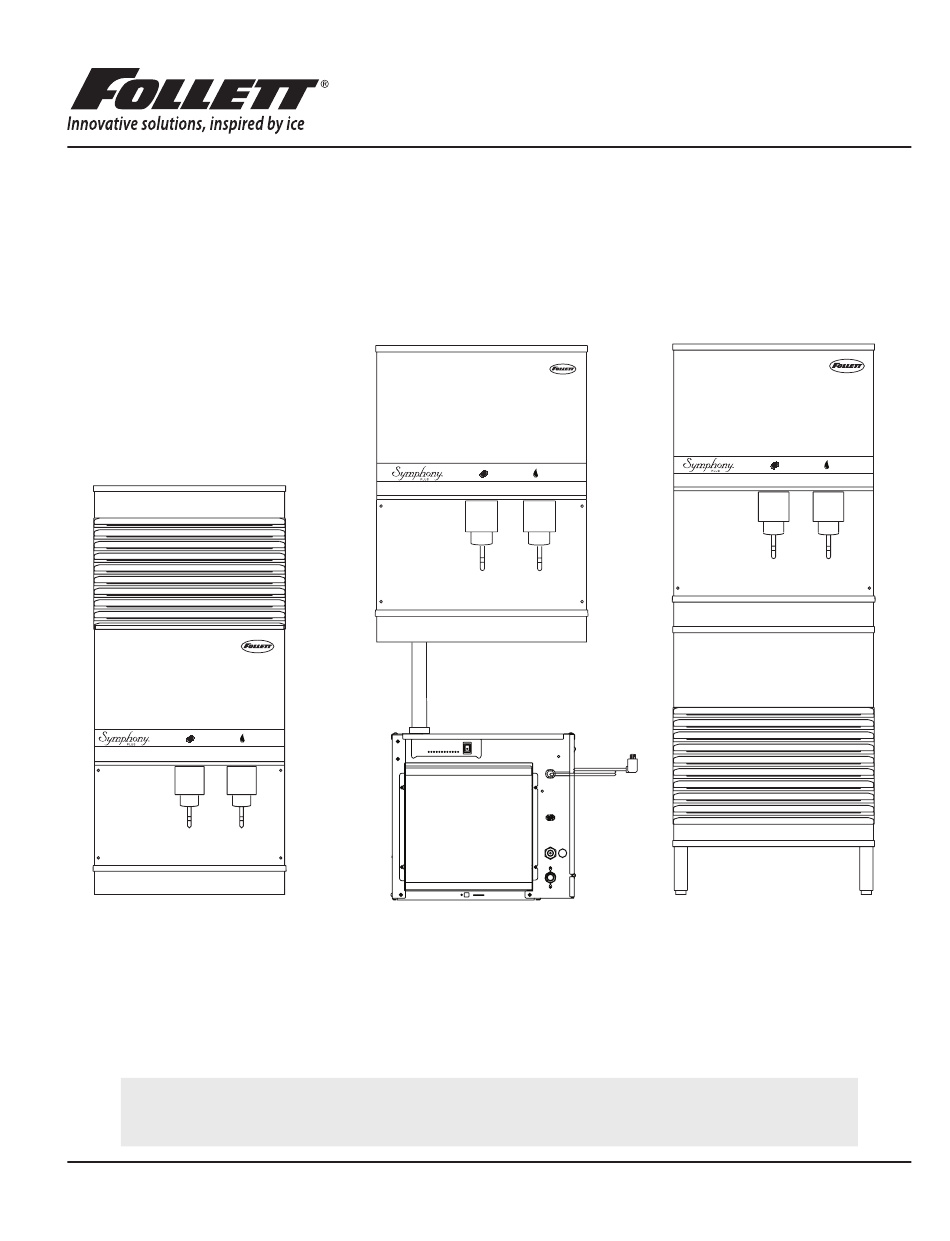

Symphony Plus
110 Series
™
Ice and Water Dispensers
Installation, Operation and Service Manual
Serial numbers below K39864
110CT425A/W
110CR425A/W
110FB425A/W
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Order parts online:
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
www.follettice.com
01033729R04
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Follett Symphony Plus 110CT425A
Summary of Contents for Follett Symphony Plus 110CT425A
- Page 1 Symphony Plus 110 Series ™ Ice and Water Dispensers Installation, Operation and Service Manual Serial numbers below K39864 110CT425A/W 110CR425A/W 110FB425A/W Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA Order parts online: Toll free (877) 612-5086 •...
-
Page 2: Table Of Contents
Welcome to Follett........ -
Page 3: Welcome To Follett
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage . If damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the filing of a claim, if necessary . -
Page 4: Specifications
Specifications Electrical § Models with RIDE ice machines (110CR425A/W) . Ice machine and dispenser require their own separate, dedicated circuit . Dispenser with Max. Dispenser without Max. ice machine circuit ice machine circuit Basic electrical: 115 V/60 Hz/1 phase 11 .0A 4 .0A §... -
Page 5: Ventilation Clearances
Ventilation clearances § No clearance required for countertop models with RIDE ice machine (110CR425A/W) . Note: 12" (30.5 cm) at top advised for service. § 6" (15 .2 cm) required at top (110CT425A/W) . Note: 6" (15.2 cm) at each side advised for service. §... - Page 6 Fig. 1 – Rear connections, freestanding models power cord NEMA 5-15 access panel 3/4" MPT drain 12.25 " (31.2 cm) 4.75 " (11.9 cm) 3/8" FPT condenser outlet location 3/8" FPT (water-cooled only) water inlet 3/8" FPT condenser outlet location 4.5 "...
-
Page 7: Installing Countertop Dispensers
(4) 3/8" holes in counter to anchor dispenser to counter (Fig. 2) . Follett countertop dispensers can have any or all utilities run directly through counter or out rear of dispenser. For dispensers with any utilities exiting through counter, make counter cut-out (Fig. - Page 8 Fig. 4 – Rear connections, countertop models CONDENSER INLET 3/8" NPT FEMALE WATER COOLED ONLY 8.22" (201 cm) CONDENSER OUTLET 3/8" NPT FEMALE 6.06" (15.5 cm) WATER COOLED ONLY POTABLE WATER INLET 3/8" NPT FEMALE DRAIN 3/4" NPT MALE 44.97" (114 cm) 41.97"...
-
Page 9: Installing Ride Ice Machines
Installing RIDE ice machines CAUTION! See Ice Machine Installation Manual (form #01062587) for critical installation instructions for RIDE ice machines . Failure to comply with these instructions will result in poor performance and void warranty . 1. Install RIDE ice machine following instructions in ice machine manual . 2. -
Page 10: Installing Top Mount Ice Machines
Installing top mount ice machines Models 110CT425A/W CAUTION! Dispensers with top mount ice machines cannot be mounted on legs . They must be bolted to counter . Use gloves when lifting ice machine to protect hands from sheet metal edges . See Ice Machine manual . 1. - Page 11 VENT 8. Connect molded drain tube to evaporator drain pan, purge solenoid and rear drain fitting . CLEANING CUP RESERVOIR FILL SOLENOID NOZZLE WATER SUPPLY WATER 3/8" FPT, 45-90 F (7-32 C) RESERVOIR 10-70 PSI (69-483 KPA) DRAIN PAN TO DRAIN CUP ➊...
-
Page 12: User Information
. Follett offers two kits: order P/N 01089572 when a Follett filter system with a pre-filter bowl is present, or P/N 01089580 when a Follett filter system is not present . Follow the instructions provided with the respective kits to sanitize the pressurized water lines immediately before cleaning/descaling and sanitizing the ice machine/dispenser . -
Page 13: Weekly
Recommended cleaning/descaling and sanitizing intervals* Symphony Plus Frequency Drain Line weekly Drain Pan/Drip Pan weekly Exterior, Water Station Tube as needed Condenser monthly (air-cooled only) Dispenser and Components semi-annually Ice Machine semi-annually Transport Tube semi-annually Ice Storage Area/Bin semi-annually Pressurized Water Sanitizing semi-annually * Ice machine and dispenser must be sanitized prior to start-up . -
Page 14: Semi-Annually (More Often If Conditions Dictate)
§ Do not use solvents, abrasive cleaners, metal scrapers or sharp objects to clean any part of the dispenser . Cleaning: Following manufacturer’s instructions, mix cleaning solution of 1 gal . (3 .8 L) 100 F (38 C) water and 7 oz (198 g) (one 7 oz packet) of Follett SafeCLEAN™ ice machine cleaner/descaler (P/N 00132001) . Sanitizing: Following manufacturer’s instructions, mix a sanitizing solution of 1 gal . -
Page 15: Dispenser Only
Sanitizing Procedure 8. Press CLEAN switch . The MAINTENANCE light and LOW WATER light will turn on . 9. Fill cleaning cup until sanitizing solution completely fills the reservoir . Place lid back on cup . Save remainder of sanitizing solution . 10. - Page 16 Sanitize dispenser 8. Wipe all above items with damp cloth wrung out in sanitizing solution to sanitize . Do not rinse . 9. Reinstall all parts and replace any panels removed prior to cleaning . 10. Pour 1 gal . (3 .8 L) of hot tap water into drain pan to flush drains . 11.
-
Page 17: Service
100CR/CT/FB Ice and Water Dispensers... -
Page 18: Wiring Diagram - Lever
Wiring diagram - Lever 118 WHITE INPUT 110 PURPLE 117 BLACK LOAD 117 BLACK 111 WHITE 114 WHITE 96 BLACK 44 RED 108 BLACK 109 BLACK 104 WHITE 98 BLACK 97 WHITE 104 WHITE 96 BLACK 95 GREEN 94 WHITE 93 BLACK 39 BLACK 38 BLACK... -
Page 19: Wiring Diagram - Sensorsafe
Wiring diagram - SensorSAFE 118 WHITE INPUT 110 PURPLE 117 BLACK LOAD 117 BLACK 118 WHITE 114 WHITE 116 PURPLE 108 BLACK 109 BLACK NEUTRAL 114 WHITE 104 WHITE 98 BLACK 97 WHITE 104 WHITE 102 WHITE 96 BLACK 95 GREEN 94 WHITE 93 BLACK 39 BLACK... -
Page 20: Dispenser Troubleshooting
Dispenser troubleshooting CAUTION! § Disconnect power to unit before putting hands or arms in storage area or attempting any repair or service to equipment . Before calling for service 1. Check that no ice is in the dispenser bin area . 2. -
Page 21: Sensorsafe Model Troubleshooting Guide
SensorSAFE model troubleshooting guide SensorSAFE Board LED Status ICE/ Problem Action Corrective Action Does not Check Check circuit breakers and power switch . dispense ice LEDs on the Restore power or replace defective switch . and/or water . SensorSAFE Press clean switch on lower left side of electrical control board . -
Page 22: Disassembly And Replacement Instructions
Disassembly and replacement instructions Dispense chute removal Fig. 6 1. Remove dispenser front cover . 2. Slide plastic dispense chute up and out to baffle remove . dispenser Dispense wheel and drive bar removal front 3.2mm (1/8") spacer 1. Remove all ice from storage area of dispenser . -
Page 23: Ice Transport Tube Replacement - Top Mount Units
Ice transport tube replacement – Top mount units Models 110CT425A/W CAUTION! § Use only tubing supplied by Follett Corporation . Tighten clamp screw 1.00" (2.54 cm) Ice transport tube replacement – Freestanding and RIDE models Models 110FB425A/W, 110CR425A/W CAUTION! § Correct installation of ice transport tube is critical to RIDE ice machine performance . Replacement ice transport tubes for RIDE ice machines must be insulated and run continuously from ice machine to dispenser with no dips or bends with a radius of less than 6"... -
Page 24: Thermostat Replacement
11. Slip supplied hose clamp onto tube and push tube onto exit port of evaporator . Do not twist hose when securing to evaporator. Note: Only use tubing supplied by Follett Corporation . 12. Fasten tube on port with hose clamp, ensure that clamp is positioned on evaporator side of nozzle flange . -
Page 25: Replacement Parts
Replacement parts Dispenser exterior Reference Description Part # Cover, top front, CT, ice and water 01072818 Cover, top front, CR/FB, ice and water 01072792 Cover, lower section, FB 502704 Cover, dispense chute 502681 Not shown Knurled screws, front cover 01085703 Drain pan 502705 Not shown... -
Page 26: Wheelmotor And Drive System
Wheelmotor and drive system Reference Description Part # Wheelmotor, 120 V, 60 Hz 501861 Washer, thrust 501026 Not shown Fan blade, wheelmotor 501607 Drive shaft (includes key and stud) 501619 Chain, pitch 54, link 502691 Sprocket, drive shaft, 35T 502692 Sprocket, wheelmotor, 10T 501019 Bearing, drive shaft... -
Page 27: Dispense Chute And Splash Panel (Models With Lever Dispensing)
Dispense chute and splash panel (models with lever dispensing) Reference Description Part # Tube, water station 502356 Cover, dispense chute 502681 Switch, dispense, ice, lever actuated (includes 501841) 501829 Switch, dispense, water, lever actuated (includes 501841) 502359 Lever, dispense 00976845 Chute, ice (with Agion antimicrobial product protection 01042787... -
Page 28: Dispense Chute And Splash Panel (Models With Sensorsafe Infrared Dispensing)
Dispense chute and splash panel (models with SensorSAFE infrared dispensing) Reference Description Part # Cover, dispense chute 502681 Chute, ice (with Agion antimicrobial product protection 01042787 ® Chute, water (with Agion) 01042795 Lens, sensor 502690 Splash panel (includes 2 of 502690) 01049162 Not shown Splash panel, SensorSAFE, ice only (includes 2 of 502690) -
Page 29: Electrical Components
Electrical components Reference Description Part # Thermostat, bin level 500514 Switch, dispenser power 502209 Switch, ice machine bin signal 502209 Control board, SensorSAFE 502242 Not shown Clean switch, SensorSAFE 502359 Not shown Boot, clean switch 501841 Relay, bin signal contact closure and level fill 501369 Timer, level fill 501601... -
Page 30: Hopper Components
Hopper components Reference Description Part # Baffle, ice 501802 Wheel, dispense (includes drive bar, rotating agitator, threaded bar & rod) 501493 Agitator, rotating 501494 Bracket, ice tube 502712 Screw 501100 Rod, threaded (includes knurled nut) 501612 Drive bar assembly (includes threaded rod and nut) 501617 Ice deflector/cap tube bracket (units with top mounted ice machine) 501616... -
Page 31: Ice Transport Tubing
Ice transport tubing Reference Description Part # Not shown Ice transport tube (RIDE units) - 10 ft 502522 Not shown Ice transport tube (RIDE units) - 20 ft 502523 Not shown Ice transport tube insulation (RIDE units only) - sold by the foot 501176 Not shown Ice transport tube assembly (50 FB units) -
Page 32: Dispenser Plumbing Connections
Dispenser plumbing connections TOP VIEW BOTTOM VIEW Reference Description Part # Not shown Valve, water shut-off 01035526 Drain tube assembly 01074285 Fitting, water inlet 01065275 Cup, cleaning 01065226 Drain pan 502705 Fitting, drain 00109728 Not shown Tee, water inlet, 1/4" 502923 Not shown Grille, drain pan... -
Page 33: Solenoid Dispense Assembly
Solenoid dispense assembly Reference # Description Part # Solenoid, dispense 501830 Cotter pin 502040 Linkage, solenoid (includes 502054 grommet) 502039 Block, dispense gate 502042 Grommet 502054 Splash pan, gate assembly 502045 Shoulder screw and washer 502038 Spring, gate assembly 501824 —... -
Page 34: Water Treatment Accessories For Symphony Plus Ice And Water Dispensers
Reference # Description Part # Standard capacity filter system Not shown Follett QC4-FL4S water filter system (includes FL4S primary cartridge and head, 00130229 coarse pre-filter and head, pressure gauge, flushing valve; assembled and installed on mounting bracket), one per ice machine... - Page 35 100CR/CT/FB Ice and Water Dispensers...
