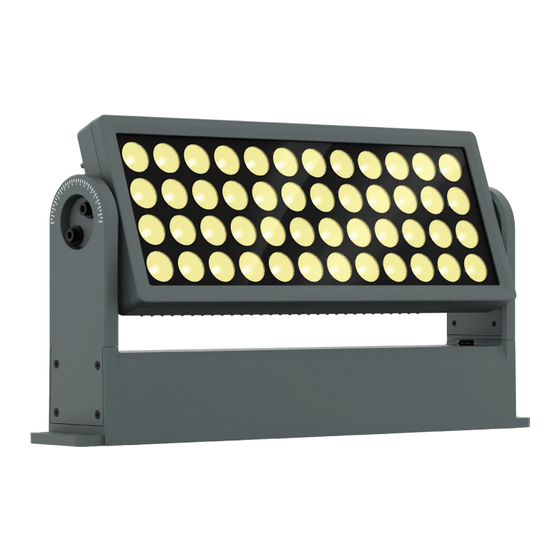

- Page 1 ArcPod 48VW 48x10W VW outdoor IP66 LED wash light for exterior installations USER MANUAL English version REV.01-08/22...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
-
Page 3: Table Of Contents
LENS (CODE S27QLENS10-15-25-45) ................18 LIGHT DIFFUSION FILTER (CODE A48QFILTER) ............19 BARN DOOR (CODE S48QBD - OPTIONAL) ..............20 11 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............21 VISUAL CHECK OF PRODUCT HOUSING ..............21 TROUBLESHOOTING ..................... 22 PROLIGHTS - ArcPod 48VW... -
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •... - Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 6 2. This device must accept any interference received, including interference that may cause undesired operation. Other approvals • The product meets the safety requirements of the certification procedures of the market in which it is placed and sold. PROLIGHTS - ArcPod 48VW...
-
Page 7: Packaging
• AWEXDC1L03: IP67 DMX extension cable for outdoor architectural projectors, L.03 m. • AWEXDC1L20: IP67 DMX extension cable for outdoor architectural projectors, L.20 m. • UPBOX1UP5: firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT. PROLIGHTS - ArcPod 48VW... -
Page 8: Technical Drawing
2 - TECHNICAL DRAWING 584 mm 93 mm 190 mm [23.0 in] [3.7 in] [7.5 in] Fig. 01 Weight: 14 kg - 30.86 lbs PROLIGHTS - ArcPod 48VW... -
Page 9: Installation
Do not use any type of clamp that does not completely encircle the structure when fastened. TILT movement: 130° Screws for unlock and lock the TILT (on both sides) Slots for fixing 584 mm 23.0 in 562 mm 22.1 in 8 mm 0.3 in Fig. 02 PROLIGHTS - ArcPod 48VW... -
Page 10: Product Overview
2. DMX IN (3-pole): 1 = GND, 2 = sign-, 3 = sign+. 3. DMX OUT (3-pole): 1 = GND, 2 = sign-, 3 = sign+. power output for connection of multiple units in series. 4. POWER OUT: Fig. 03 PROLIGHTS - ArcPod 48VW... -
Page 11: Connection To The Mains Supply
POWER POWER POWER POWER POWER POWER MAINS 230V NOTE: when not using the Power output connectors, you must seal the cable ends with the sup- plied caps. Fig. 05 - Example configuration (Output at 230 V) PROLIGHTS - ArcPod 48VW... -
Page 12: Dmx Connection
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX OUT DMX512 Controller Fig. 07 - Example 10 DMX channels configuration PROLIGHTS - ArcPod 48VW... -
Page 13: Dmx Addressing
WH. CAL. WW(000-255) 0x82EC WH. CAL CW(000-255) 0x8209 INVERT MAPPING (0:OFF; 1:ON) 0x8210 CURRENT HOURS(00000-65535) 0x82BE POWER CONSUMPTION(AC 220V) 0x82BF MAINTENANCE TIME(ALERT PERIOD:10-300) 0x82C0 MAINTENANCE TIME(ELAPSED TIME:00-ALERT PERIOD) 0x82C1 ERROR MESSAGES (???) 0x82C2 CLEAN ALL DATA(0:NO,1:YES) 0x82C3 PROLIGHTS - ArcPod 48VW... -
Page 14: Operation Via Datamaster
To choose the DMX mode. DMX_PERSONALITY 15CH To choose the dimmer curve. CURVE 0:LINEAR 1:S-CURVE 2:SQUARE LAW 3:INVERSE SQUARE LAW To choose the dimmer speed. 0:AUTO OUTPUT_RESPONSE_TIME 1:FAST 2:MEDUIM 3:SLOW Select PWM frequency. MODULATION_FREQUENCY 0:600Hz 1:1200Hz 2:2000Hz 3:4000Hz 4:6000Hz 5:25kHz PROLIGHTS - ArcPod 48VW... -
Page 15: Stand Alone Function
DMX line. On others units that will be connected to the same DMX line must NOT be setted the STAND ALONE, they will be "SLAVE" and they will follow the DMX of the MASTER. PROLIGHTS - ArcPod 48VW... -
Page 16: Dmx Charts
1 Ch 2 Ch 3 Ch 4 Ch 9 Ch 15 Ch DIMMER DIMMER WARM WHITE DIMMER DIMMER COLD WHITE DIMMER FINE DIMMER FINE DIMMER FADE STROBE DIMMER FADE CROSSFADE WARM WHITE COLD WHITE DIMMER FADE CONTROL PROLIGHTS - ArcPod 48VW... - Page 17 STAND ALONE WHITE PRESETS 46 ÷ 47 STAND ALONE MANUAL COLORS 48 ÷ 49 INVERT MAPPING ON 50 ÷ 51 INVERT MAPPING OFF 52 ÷ 53 Reserved 54 ÷ 253 FACTORY DEFAULT OF CONTROL FUNCTIONS 254 ÷ 255 PROLIGHTS - ArcPod 48VW...
- Page 18 Pulse in from slow to fast 065 ÷ 125 Open 126 ÷ 127 Pulse out from slow to fast 128 ÷ 188 Open 189 ÷ 190 Randon from slow to fast 191 ÷ 251 Open 252 ÷ 255 PROLIGHTS - ArcPod 48VW...
- Page 19 STAND ALONE WHITE PRESETS 46 ÷ 47 STAND ALONE MANUAL COLORS 48 ÷ 49 INVERT MAPPING ON 50 ÷ 51 INVERT MAPPING OFF 52 ÷ 53 Reserved 54 ÷ 253 FACTORY DEFAULT OF CONTROL FUNCTIONS 254 ÷ 255 PROLIGHTS - ArcPod 48VW...
-
Page 20: Accessories Installation
2. Replace the lenses by inserting the two pins on the back of the lens (DETAIL) with the holes pro- vided on the PCB LED (5). NOTE: to reassemble the lenses, reverse the procedure. NOTE: it is recommended to tighten the front cover screws carefully so as to guarantee the correct IP degree. Fig. 09 PROLIGHTS - ArcPod 48VW... -
Page 21: Light Diffusion Filter (Code A48Qfilter)
(3). Place the light diffusion filter (4) on the lenses (5). NOTE: to remove the light diffusion filter, reverse the procedure. NOTE: it is recommended to tighten the front cover screws carefully so as to guarantee the correct IP degree. Fig. 10 PROLIGHTS - ArcPod 48VW... -
Page 22: Barn Door (Code S48Qbd - Optional)
Insert the two marked pin on down edge of the barn door into the holes provided on the unit (1) and positioning the spring pin on the hardware into the hole provided on the top (2). Hook the safety cable (3) and adjust the angle of the four leafs (4). Fig. 11 PROLIGHTS - ArcPod 48VW... -
Page 23: Maintenance
• This checking is necessary for both fixed installations and preparing product for renting. Any free moving parts inside of the product, cracked cover/housing or any part of front glass not sitting properly in place need to be immediately replaced. PROLIGHTS - ArcPod 48VW... -
Page 24: Troubleshooting
• Dirty or damaged filters. • Install lens assembly properly. Contact an authorized service center in case of technical problems or not reported in the table can not be resolved by the procedure given in the table. PROLIGHTS - ArcPod 48VW... - Page 25 Note...
