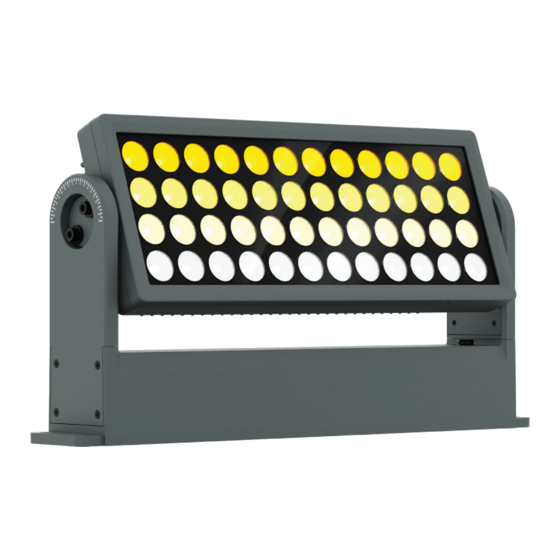

ProLights ArcPod 48Q User Manual

48x10w rgbw/fc outdoor ip66 led wash light for exterior installations
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ArcPod 48Q
48x10W RGBW/FC outdoor IP66 LED
wash light for exterior installations
USER MANUAL
English version
REV.02-07/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ArcPod 48Q and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProLights ArcPod 48Q

Summary of Contents for ProLights ArcPod 48Q

  • Page 1 ArcPod 48Q 48x10W RGBW/FC outdoor IP66 LED wash light for exterior installations USER MANUAL English version REV.02-07/21...
  • Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.

  • Page 3: Table Of Contents

    LENS (CODE S27QLENS10-15-25-45) ................18 LIGHT DIFFUSION FILTER (CODE A48QFILTER) ............19 BARN DOOR (CODE S48QBD - OPTIONAL) ..............20 11 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............21 VISUAL CHECK OF PRODUCT HOUSING ..............21 TROUBLESHOOTING ..................... 22 PROLIGHTS - ArcPod 48Q...

  • Page 4: Safety Information

    • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •...
  • Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
  • Page 6 The products to which this manual refers comply with: • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD). • 2014/30/EU - Electromagnetic Compatibility (EMC). • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). PROLIGHTS - ArcPod 48Q...

  • Page 7: Packaging

    • AWEXDC1L10: IP67 DMX extension cable for outdoor architectural projectors, L.10 m; • AWEXDC1L20: IP67 DMX extension cable for outdoor architectural projectors, L.20 m; • UPBOX1U: firmware uploader kit, USB IN, 3pin XLR DMX OUT, USB OUT. PROLIGHTS - ArcPod 48Q...

  • Page 8: Technical Drawing

    2 - TECHNICAL DRAWING 584 mm 93 mm 190 mm [23.0 in] [3.7 in] [7.5 in] Fig. 01 Weight: 14 kg - 30.86 lbs PROLIGHTS - ArcPod 48Q...

  • Page 9: Installation

    Do not use any type of clamp that does not completely encircle the structure when fastened. TILT movement: 130° Screws for unlock and lock the TILT (on both sides) Slots for fixing 584 mm 23.0 in 562 mm 22.1 in 8 mm 0.3 in Fig. 02 PROLIGHTS - ArcPod 48Q...

  • Page 10: Product Overview

    2. DMX IN (3-pole): 1 = GND, 2 = sign-, 3 = sign+. 3. DMX OUT (3-pole): 1 = GND, 2 = sign-, 3 = sign+. power output for connection of multiple units in series. 4. POWER OUT: Fig. 03 PROLIGHTS - ArcPod 48Q...

  • Page 11: Connection To The Mains Supply

    POWER POWER POWER POWER POWER POWER MAINS 230V NOTE: when not using the Power output connectors, you must seal the cable ends with the sup- plied caps. Fig. 05 - Example configuration (Output at 230 V) PROLIGHTS - ArcPod 48Q...

  • Page 12: Dmx Connection

    ... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX OUT DMX512 Controller Fig. 07 - Example 10 DMX channels configuration PROLIGHTS - ArcPod 48Q...

  • Page 13: Dmx Addressing

    MASTER/SLAVE (0:MASTER DMX; 1:MASTER NO DMX; 2:SLAVE) 0x8211 STAND ALONE MODE (0:STATIC; 1:CCT; 2:MACRO; 3:RGBW) 0x82EC EFFECT (1-9) 0x8209 EFFECT_SPEED (0-255) 0x8210 FIXED_COLOR (1-14) 0x82BE WHITE PRESETS (1-10) 0x82BF STATIC RED(000-255) 0x82C0 STATIC GREEN(000-255) 0x82C1 STATIC BLUE(000-255) 0x82C2 STATIC WHITE(000-255) 0x82C3 PROLIGHTS - ArcPod 48Q...

  • Page 14: Operation Via Datamaster

    125 ÷ 255 8201 White Balance-Green 125 ÷ 255 8202 White Balance- Blue 125 ÷ 255 8203 White Balance- White 0: No 8206 Clean Device Hours 1: Yes 8217 Full On mode 0: HB Mode 1: Studio Mode PROLIGHTS - ArcPod 48Q...

  • Page 15: Stand Alone Function

    DMX line. On others units that will be connected to the same DMX line must NOT be setted the STAND ALONE, they will be "SLAVE" and they will follow the DMX of the MASTER. PROLIGHTS - ArcPod 48Q...

  • Page 16: Dmx Charts

    9 - DMX CHARTS Channel 5 Ch 7 Ch 10 Ch DIMMER DIMMER GREEN BLUE GREEN GREEN WHITE BLUE BLUE DIMMER SPEED MODE WHITE WHITE STROBE STROBE DIMMER SPEED MODE COLOR MACRO EFFECTS EFFECTS SPEED DIMMER SPEED MODE PROLIGHTS - ArcPod 48Q...
  • Page 17 000 ÷ 051 Dimmer speed mode off 052 ÷ 101 Dimmer speed mode 1 (fast speed) 102 ÷ 152 Dimmer speed mode 2 (middle speed) 153 ÷ 203 Dimmer speed mode 3 (slow speed) 204 ÷ 255 PROLIGHTS - ArcPod 48Q...
  • Page 18 WHITE 3 BLUE 2 RED 4 WHITE 2 GREEN 4 RED 3 BLUE 4 GREEN 3 WHITE 4 BLUE 3 DIMMER SPEED MODE WHITE 3 RED 4 GREEN 4 BLUE 4 WHITE 4 DIMMER SPEED MODE PROLIGHTS - ArcPod 48Q...
  • Page 19 000 ÷ 051 Dimmer speed mode off 052 ÷ 101 Dimmer speed mode 1 (fast speed) 102 ÷ 152 Dimmer speed mode 2 (middle speed) 153 ÷ 203 Dimmer speed mode 3 (slow speed) 204 ÷ 255 PROLIGHTS - ArcPod 48Q...

  • Page 20: Accessories Installation

    2. Replace the lenses by inserting the two pins on the back of the lens (DETAIL) with the holes pro- vided on the PCB LED (5). NOTE: to reassemble the lenses, reverse the procedure. NOTE: it is recommended to tighten the front cover screws carefully so as to guarantee the correct IP degree. Fig. 09 PROLIGHTS - ArcPod 48Q...

  • Page 21: Light Diffusion Filter (Code A48Qfilter)

    (3). Place the light diffusion filter (4) on the lenses (5). NOTE: to remove the light diffusion filter, reverse the procedure. NOTE: it is recommended to tighten the front cover screws carefully so as to guarantee the correct IP degree. Fig. 10 PROLIGHTS - ArcPod 48Q...

  • Page 22: Barn Door (Code S48Qbd - Optional)

    Insert the two marked pin on down edge of the barn door into the holes provided on the unit (1) and positioning the spring pin on the hardware into the hole provided on the top (2). Hook the safety cable (3) and adjust the angle of the four leafs (4). Fig. 11 PROLIGHTS - ArcPod 48Q...

  • Page 23: Maintenance

    • This checking is necessary for both fixed installations and preparing product for renting. Any free moving parts inside of the product, cracked cover/housing or any part of front glass not sitting properly in place need to be immediately replaced. PROLIGHTS - ArcPod 48Q...

  • Page 24: Troubleshooting

    • Dirty or damaged filters. • Install lens assembly properly. Contact an authorized service center in case of technical problems or not reported in the table can not be resolved by the procedure given in the table. PROLIGHTS - ArcPod 48Q...
  • Page 25 Note...
  • Page 26 Note...
  • Page 28 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
