Summary of Contents for Kobold AFS-G1

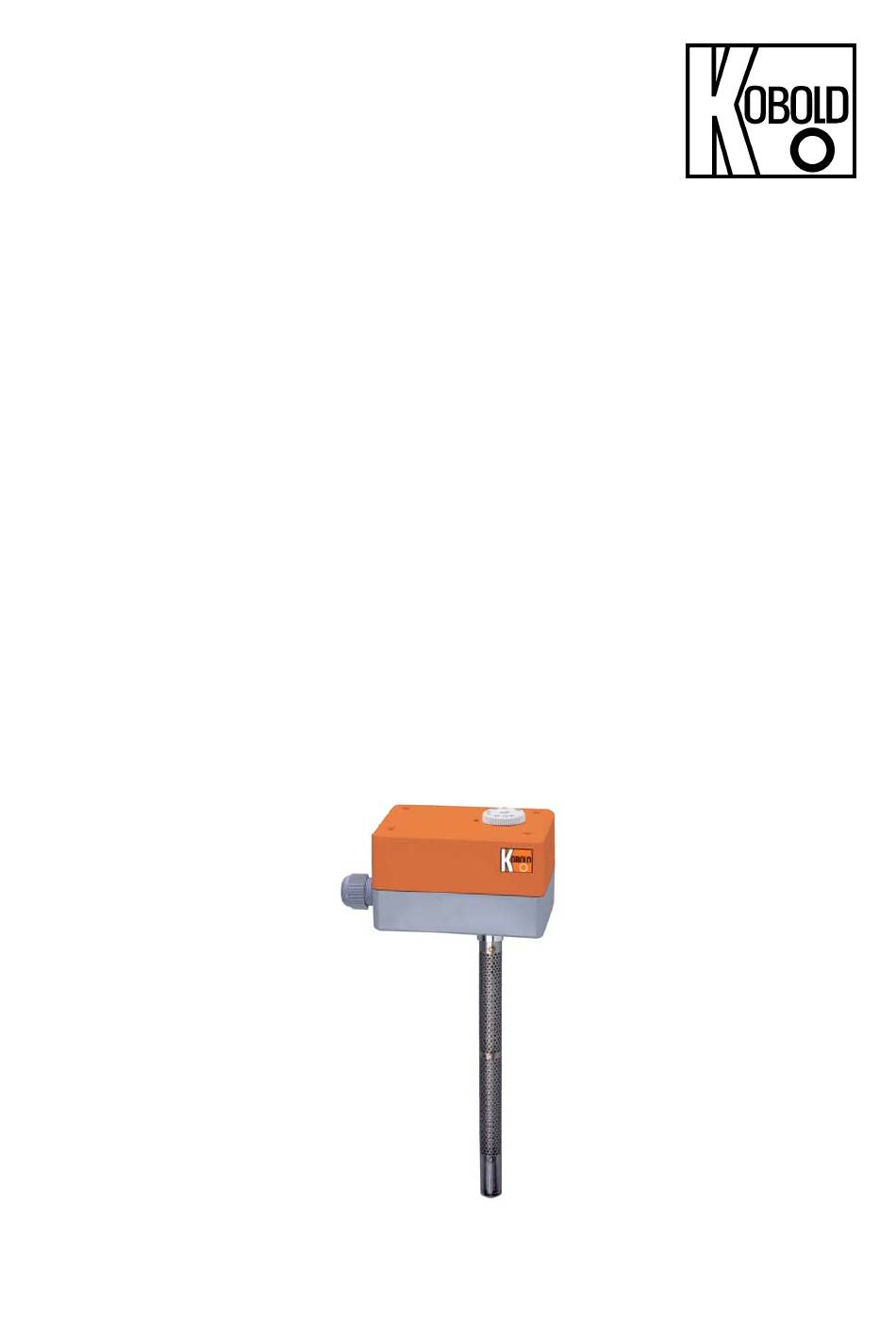

- Page 1 Operating Instructions Hygrostat Model: AFS-G1...
-
Page 2: Table Of Contents
Technical Information ..................9 Dimensions [mm] ..................10 EU Declaration of Conformance ..............11 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 AFS-G1 K04/1019... -
Page 3: Note
AFS-G1 4. Regulation Use Any use of the Hygrostat, model: AFS-G1, which exceeds the manufacturer’s specification, may invalidate its warranty. Therefore, any resulting damage is not the responsibility of the manufacturer. The user assumes all risk for such usage. -
Page 4: Operating Principle
AFS-G1 5. Operating Principle The Hygrostat AFS-G1 serves as a two-position controller to regulate relative humidity indoors or in air ducts. The humidity sensing element in the sensor comprises several strips of plastic fabric, each with 90 fibres of 3 µm diameter. These plastic fibres undergo a special process to acquire hygroscopic properties, meaning that they will absorb and release humidity. -
Page 5: Mechanical Connection
The preferred installation position is "sensor vertically pointing downwards" or "sensor horizontal". A blanking plate in the probe with a 0,8 mm diameter hole prevents penetration of water in the installation positions described above. Installation position AFS-G1 K04/1019 page 5... -
Page 6: Electrical Connection
Relative humidity of the air (process value) Adjusted humidity at the set value generator (set value) If the relative humidity Fx falls below the adjusted set value Fw, then contact 1/2 opens and contact 1/4 closes. page 6 AFS-G1 K04/1019... -
Page 7: Operation
50 % RH +/- 3,5 % RH +/- 3,2 % RH +/- 3,0 % RH +/- 2,6 % RH 90 % RH +/- 6,3 % RH +/- 5,7 % RH +/- 5,4 % RH +/- 4,6 % RH AFS-G1 K04/1019 page 7... -
Page 8: Maintenance
The accuracy in the dry area must be determined under normal climatic conditions. Attention! The measuring element must not be dried using warm or hot air (hair dryer). Cleaning should be carried out for no longer than 10 minutes. page 8 AFS-G1 K04/1019... -
Page 9: Technical Information
(optional) Mounting position: sensor vertically downwards or horizontally Connecting terminals: for conductor cross sections 1.5 mm Cable connection: via twist nipple M 20x1,5 Housing: ABS (Acrylnitril-Butadien-Styrol) Type of protection: IP 54 Weight: approx. 0,7 kg AFS-G1 K04/1019 page 9... -
Page 10: Dimensions [Mm]
AFS-G1 11. Dimensions [mm] page 10 AFS-G1 K04/1019... -
Page 11: Eu Declaration Of Conformance
AFS-G1 12. EU Declaration of Conformance We, KOBOLD-Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Hygrostat Model: AFS-G1... to which this declaration relates is in conformity with the standards noted below: EN 60730-1:2012 Automatic electrical controls for household and similar use -...
