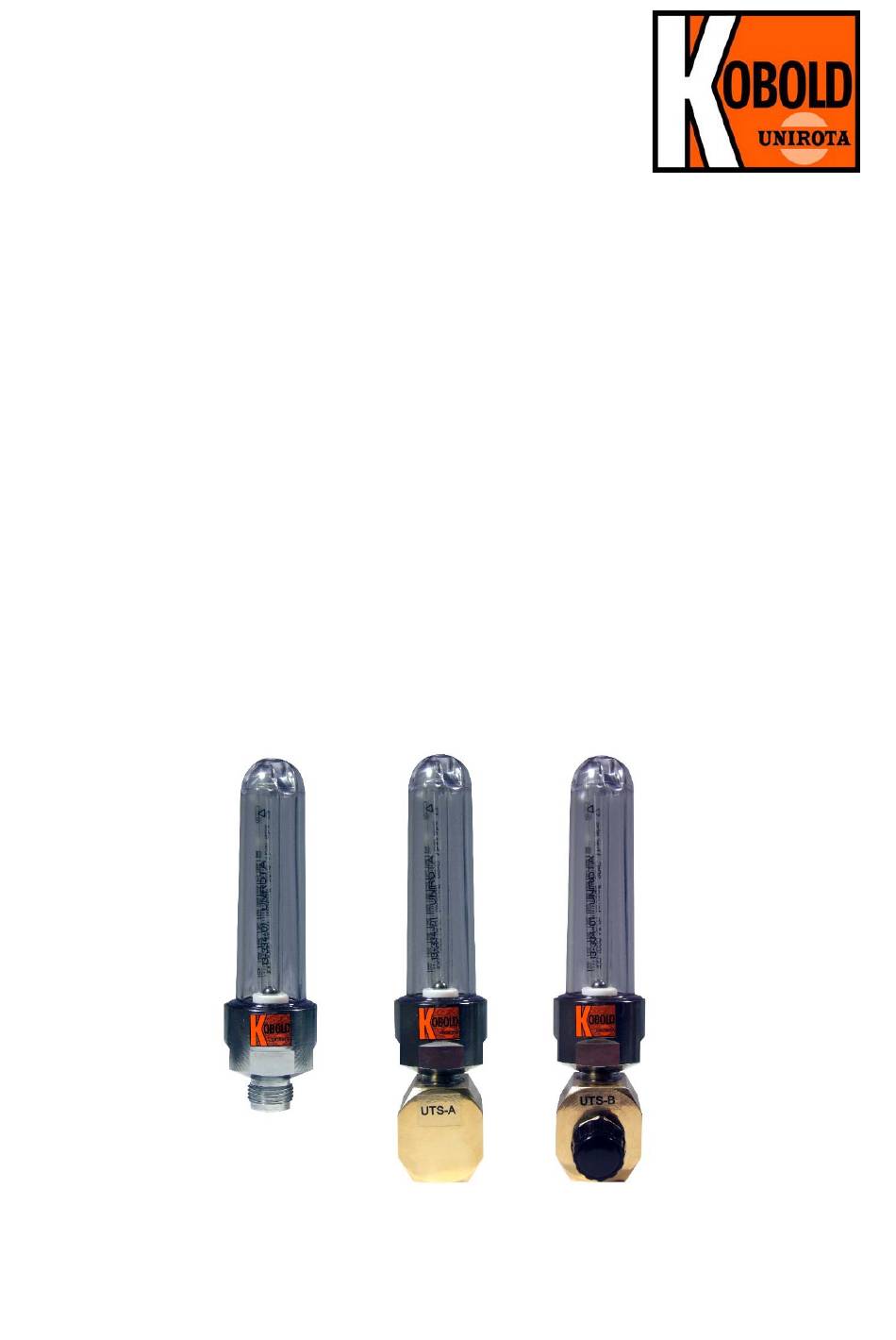

- Page 1 Operating Instructions variable area flow meter Model: UTS...
-
Page 2: Table Of Contents
Dimensions ....................10 EU Declaration of Conformance ..............11 Manufactured by: Sold by: Kobold-Unirota Ltd. Kobold Messring GmbH 4400 Nyíregyháza Nordring 22-24 Derkovits út 132-136. D-65719 Hofheim Tel.: +36-42-342-215 Tel.: +49(0)6192-2990 Fax: +36-42-500-175 Fax: +49(0)6192-23398 E-Mail: info.hu@kobold.com... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Operating Principle

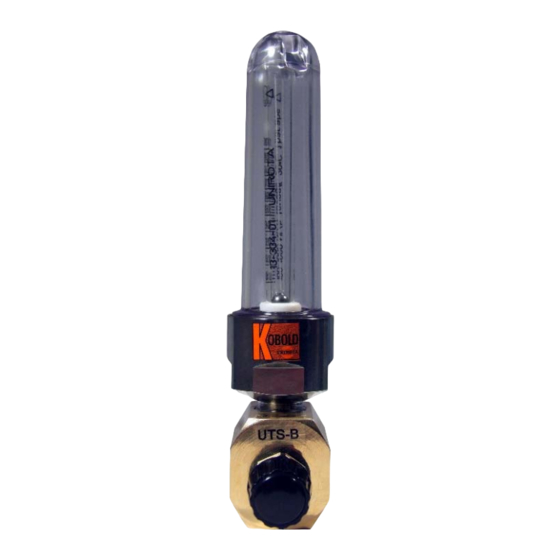

5. Operating Principle The Kobold UTS model flowmeter/monitor works on the basis of the suspended float principle. It is used for measuring the flow rates in closed pipe line systems. The medium flows from below through a glass measuring cone that gets wider on top. -
Page 5: Operation
7. Operation Overranging With non-pulsating flow, the maximum flow rate can be exceeded. Only an increase in pressure loss will result (max. permissible operating pressure must not be exceeded!) UTS K02/0522 page 5... -
Page 6: Maintenance
8. Maintenance If the medium to be measured is clean, the series UTS is virtually maintenance- free. If deposits form on the inner housing or parts, periodic cleaning of the unit is recommended. Remove the units from the piping with a suitable tool; clean the flow meter with a suitable cleaning agent or make use of an ultrasonic bath. -
Page 7: Technical Information
G¼ or ¼” NPT (for horizontal pipes) Protective category: IP 65 Materials: Fitting: nickel plated brass, stainless steel 1.4301, 1.4404 Measuring tube: borosilicate glass Bulb: polystyrene Float: stainless steel 1.4401 O-ring: NBR, FPM UTS K02/0522 page 7... -
Page 8: Material Combination
10. Material combination Model Housing Valve Float Gasket Measuring tube Bulb UTS-1 nickel plated brass 1.4301 1.4301 UTS-3 stainless steel 1.4301 borosilicate glass polystyrene UTS-5 stainless steel 1.4404 1.4404 1.4404 page 8 UTS K02/0522... -
Page 9: Order Codes
1N2R = ¼" NPT adapter, from right Adapter material same as housing material. At 1.013 bar abs and 20 °C Customer specification on request, please specify in clear text. Order Details Adapter (Example: UTS-A1 0I2R) Model/ Housing Connection / flow direction without valve 0I2L = G ¼... -
Page 10: Dimensions
12. Dimensions UTS-1 10L 0000 UTS-1 10L 0I2L UTS-1 10L 1L2L UTS-A1 0I2L UTS-A1 1L2L M18x1,5 special Ø36 page 10 UTS K02/0522... -
Page 11: Eu Declaration Of Conformance
13. EU Declaration of Conformance We, KOBOLD Unirota Kft. Nyíregyháza Hungary, declare under our sole responsibility that the product: Variable area flow meter Model: UTS-… to which this declaration relates is in conformity with the standards noted below: EN IEC 63000:2018 Technical documentation for the assessment of electrical...
