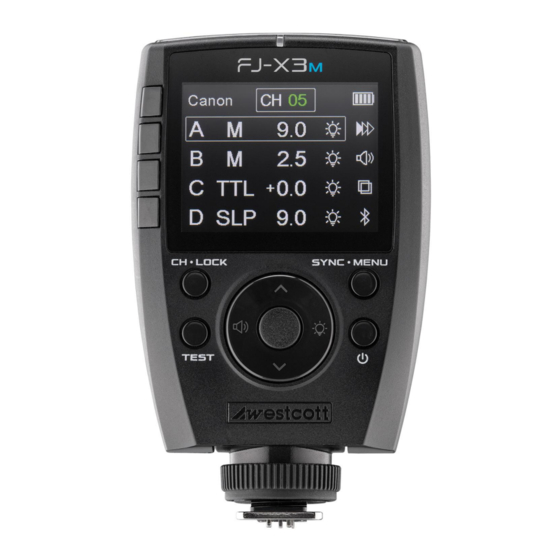

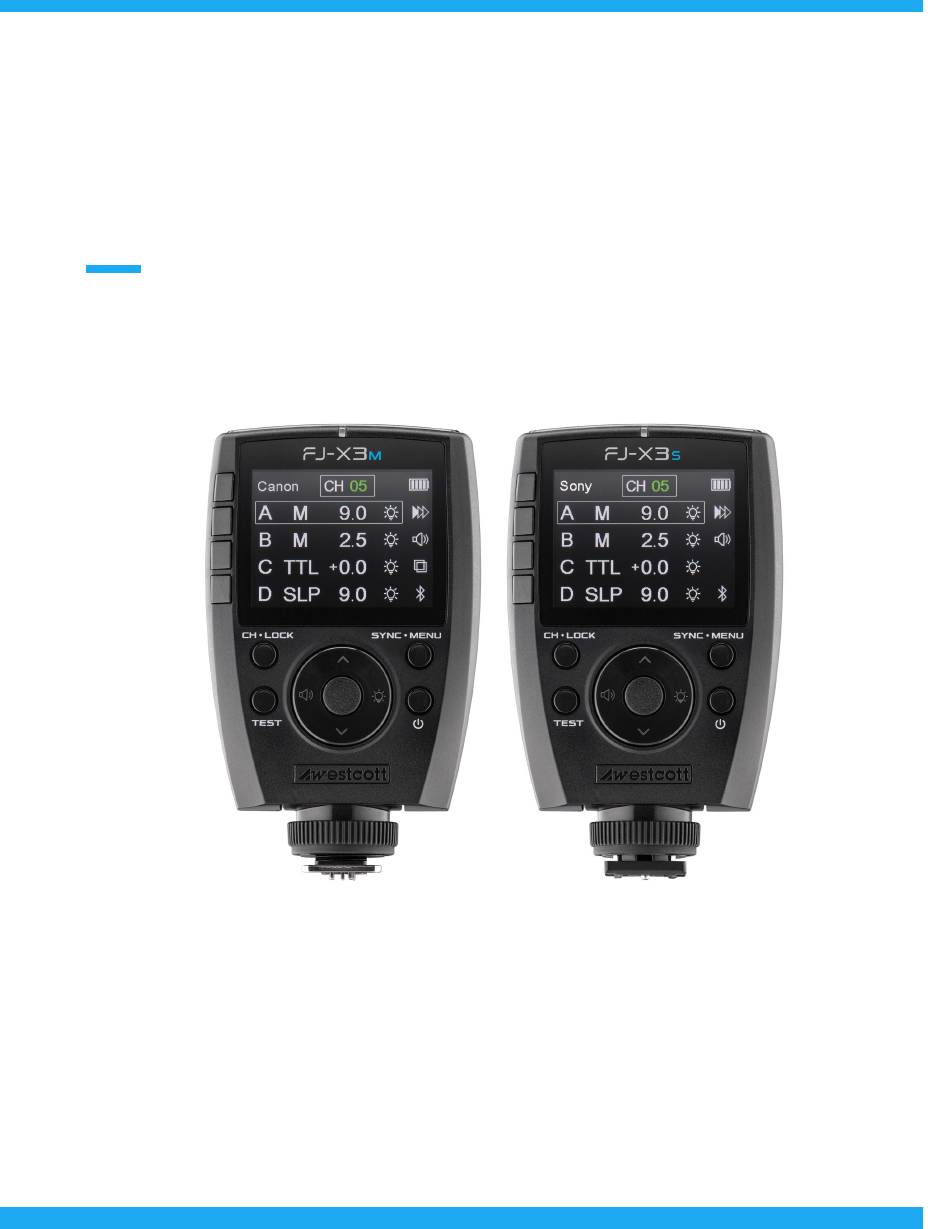

- Page 1 FJ-X3 Wireless Trigger User Manual v 1.2.0 10/13/2022...
-
Page 2: Table Of Contents
Contents Introduction Components (Included) FJ-X3 M Universal Wireless Trigger (#4785) FJ-X3 M Universal Wireless Trigger with Sony Adapter (#4786) FJ-X3 S Wireless Trigger for Sony Cameras (#4788) Important things to know before starting… Reviewing Firmware Files TTL ±3 Flash Exposure Compensation... - Page 3 Sync Functions Changing the Sync Function HIgh-speed Sync (HSS) Freeze Mode X-Sync Mode FJ-X3: Remote ZOOM Remote FJ80 Series ZOOM Control [Single Group] Remote FJ80 Series ZOOM Control [All Groups] Enabling the Modeling Lamp Enabling an Audible Beep TTL to Manual Exposure...
-
Page 4: Introduction
Sony Cameras. One last thing, and this is the important one. Don’t forget that Westcott HQ is based in Maumee, OH, and our team’s available to answer your questions, Monday-Friday 9 am-5 pm ET. We also have a community of loyal Westcott users who are ready to share their tips and tricks via the Westcott Lighting Community on Facebook during the week or on the weekend. -
Page 5: Components (Included)
FJ-X3 M Universal Wireless Trigger (#4785) ● FJ-X3 M Wireless Trigger ● FJ-X3 Rechargeable Battery ● USB-A to USB-C Cable FJ-X3 M Universal Wireless Trigger with Sony Adapter (#4786) ● FJ-X3 M Wireless Trigger ● FJ-X3 Rechargeable Battery ● Sony Camera Adapter ●... -
Page 6: Important Things To Know Before Starting
±3 TTL Flash Exposure Compensation (FEC) on the FJ-X3 is independent of the Flash Exposure Compensation (FEC) on the connected FJ Wireless light. Meaning, a change of the FEC ±3 on the FJ-X3 will adjust the light output in TTL mode; however, the connected FJ Wireless light’s screen will not indicate the FEC changes made on the FJ-X3. -
Page 7: Fj-X3 Wireless Trigger: Overview
FJ-X3 Wireless Trigger: Overview... -
Page 8: Main Screen
FJ-X3: LCD Display Main Screen Settings Menu... -
Page 9: Fj-X3: Warnings
● The operating temperature range is 14-104°F (-10-40°C). FJ-X3: Firmware Updates The FJ-X3 Wireless Transmitter is designed with a USB-C port to allow for firmware updates only. Future firmware updates will result in performance enhancements, modified menu options, and improved menu layouts. -
Page 10: Fj-X3: Getting Started
3. Remove the battery by inserting your finger into the half-circle cutout above the battery and lean the battery forward. Or, turn the FJ-X3 over and gently shake the unit over your hand until the battery dislodges from the battery bay. -
Page 11: Removing From A Shoe (Hot/Cold)
Slide the Adapter for Sony Cameras (sold separately) into the camera’s hot shoe with the release button facing the back of the camera. 2. Once the adapter is mounted, loosen the FJ-X3’s Shoe Lock dial and slide the FJ-X3 into the adapter’s shoe. -
Page 12: Fj-X3: Test Fire & Settings Lock
FJ-X3: Test Fire & Settings Lock Test Firing ● Test fire connected FJ Wireless lights by quick pressing the Test button on the FJ-X3. Any Groups that are in M (Manual Mode) or TTL will fire accordingly. NOTE: Any FJ Wireless lights in SLP (sleep mode) will not fire. -
Page 13: Change Ttl Exposure Compensation
NOTE: A long press of the center Control Pad button will highlight the power setting and allow full stop adjustments. Change M (Manual) Exposure Power Output (All Manual Groups) Ensure you are on the FJ-X3’s main control screen. 2. Long press the Sound Selection Button [ ] (left) on the Control Pad to highlight all groups [A-F]. -
Page 14: Channel Controls
MODE Function icon [HOST mode] until the screen displays TTL or M. NOTE: It’s important that the Exposure Mode setting is updated from the FJ-X3 Wireless Transmitter or FJ80 [HOST], otherwise, the flash unit(s) will re-enter SLP (sleep) when the next transmission signal is received from an FJ-X3 transmitter. -
Page 15: High-Speed Sync (Hss)
6. Front Curtain and Rear Curtain Sync now have the ability to use Freeze Mode. X-Sync Mode The FJ-X3 Wireless Trigger was designed with a single center-pin mode known as X-Sync Mode. This functionality allows the basic triggering of many film cameras and other camera models not listed as completely compatible on the FJ Camera Compatibility list. -
Page 16: Fj-X3: Remote Zoom
FJ-X3: Remote ZOOM Remote FJ80 Series ZOOM Control [Single Group] 1. Long press the Modeling Lamp icon [ ] (right) on the Control Pad to enter the ZOOM menu. 2. Press the up or down arrows on the Control Pad to locate the group for which the ZOOM needs adjusting. -
Page 17: Ttl To Manual Exposure
● X-Sync: [On/Off] ● Auto-Off: [05, 15, 30, Off] ● Bluetooth®: [On/Off] ● Screen Brightness: [MIN, MID, MAX] ● FJ-X3 Transmitting Power: [MIN, NOR, MAX] ● Freeze: [On, Off] ● Power Display: [Decimal, Fraction] ● Language: [English, French, Spanish] (Coming Winter 2022) ●... -
Page 18: Warranty Information
Warranty Period, at its option and to the extent permitted by law, Westcott will either (1) repair the defect at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product. -
Page 19: Legal Information
Legal Information Westcott products are made to the company’s traditionally high standards of quality and comply with all applicable government safety regulations and requirements. In an effort to provide the best quality products possible, we periodically make product modifications. Actual products may not be identical to items pictured.
