Summary of Contents for Westcott FJ-X2m
- Page 1 QUICK START GUIDE Visit fjwestcott.com/4705 to download the latest firmware...

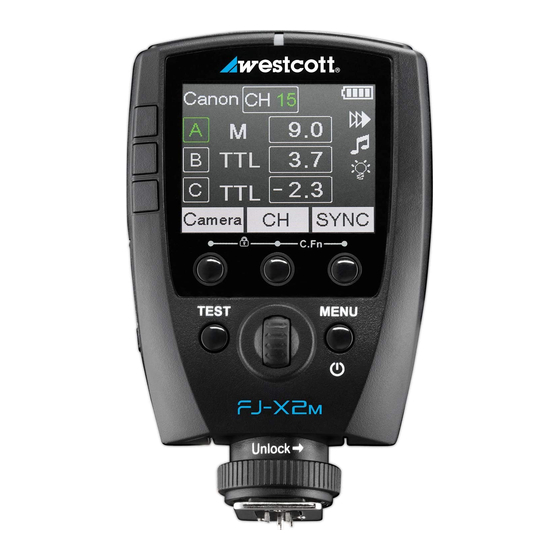

- Page 2 Included Components & Overview FJ-X2m, USB Cable Wireless Signal Indicator Group Selection Buttons Menu Selection Buttons (1, 2, 3) Power | Menu Test Button Button Selection Wheel Shoe Lock...
- Page 3 LCD Display Channel Icon Canon Battery Icon Camera Brand Indicator Selection Sync Function Icon Group Icons Audible Beep Icon TTL / M Group Modeling Lamp Designations Icon Bluetooth Icon SYNC Camera Selectable Menu Icons Settings Menu Settings Screen Screen Brightness (Min, Mid, Max) Auto-Off Auto-Off...
- Page 4 • Various camera models automatically adjust the Sync setting to HSS when HSS is enabled in the camera settings and the native sync speed is exceeded. • Ensure the camera’s battery level is above 25%. • Ensure the camera contacts are clean and the FJ-X2m is seated properly and aligned.
- Page 5 3. Plug the opposing end of the cable in any 5V power source. 4. Estimated charging time is 2 hours. Powering On Long press and hold the Power | Menu button for 3 seconds until you see the Westcott logo. The wireless signal indicator will continually flash green. Powering Off Long press and hold the Power | Menu button for 3 seconds until the screen turns off.
- Page 6 2. Once the adapter is mounted, loosen the FJ-X2m’s Shoe Lock dial and slide the FJ- X2m onto the Sony Adapter. 3. Turn the FJ-X2m Shoe Lock dial to the left to lock into place. Do not overtighten.
- Page 7 5. Connect the USB cable to the FJ-X2m’s USB-C port. 6. On the FJ-X2m, press and hold Menu Selection buttons 2 and 3 at the same time. 7. While holding the Menu Selection buttons, connect the USB cable into your computer’s USB-A port.
- Page 8 Warranty Period, at its option and to the extent permitted by law, Westcott will either (1) repair the defect at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product.
