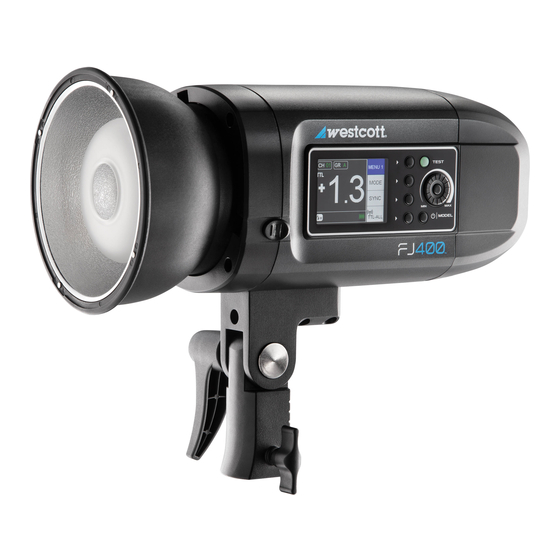

Westcott FJ400 User Manual
Ac/dc strobe
Hide thumbs
Also See for FJ400:
- Quick start manual (9 pages) ,
- User manual (22 pages) ,
- Quick start manual
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Westcott FJ400
Summary of Contents for Westcott FJ400

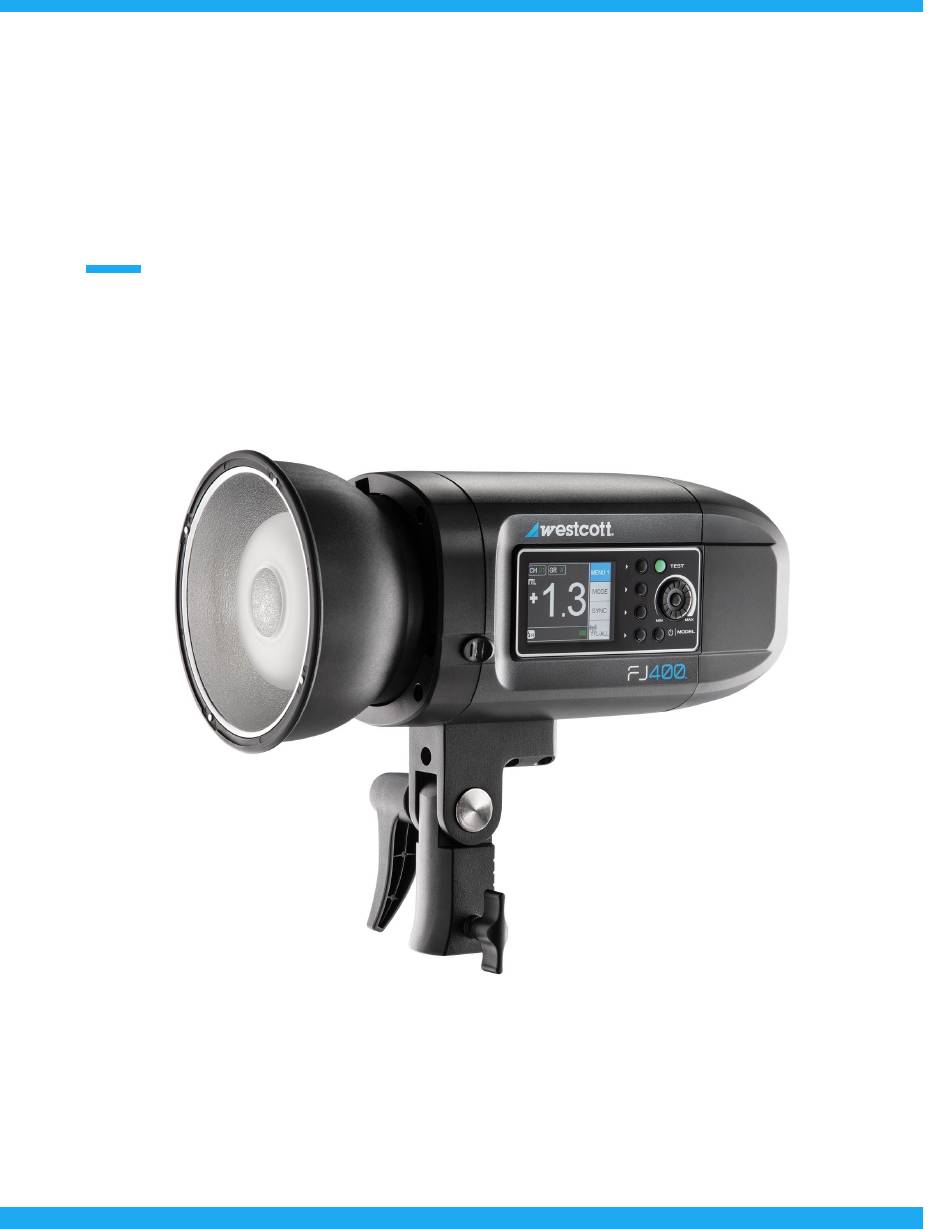

- Page 1 FJ400 AC/DC Strobe User Manual V1.0000 10/22/2019 ...
-
Page 2: Table Of Contents
FJ400 Strobe: Firmware Updates 7 Installing the Firmware 7 FJ400 Strobe: Getting Started 8 Charging the FJ400 AC/DC Lithium Polymer Battery 8 Attaching the FJ400 AC/DC Lithium Polymer Battery 8 Removing the FJ400 AC/DC Lithium Polymer Battery 8 AC Power Operation 8 ... - Page 3 Menu Screen #3 14 Menu Screen #4 14 Menu Screen #5 14 Menu Screen #6 15 FJ400 Battery: Performance and Care 15 FJ400 Performance & Sleep Modes 15 FJ400 LED Battery Status Indicators 15 FJ400 Charging & Life Expectancy 16 ...
-
Page 4: Introduction
Thank you for purchasing the Westcott FJ400 Strobe. The FJ400 and FJ-X2m Wireless Flash Trigger (sold separately ) are a photographer’s dream combination. The performance of the FJ400 is one of the industry’s first compact, portable 400 watt-second strobes that is capable of recycling in less than ... -
Page 5: Fj400 Strobe: Overview
FJ400 Strobe: Overview 4 ... -
Page 6: Fj400 Strobe: Lcd Display & Menus
FJ400 Strobe: LCD Display & Menus 5 ... -
Page 7: Fj400 Strobe: Warnings
FJ400 strobe temperatures will increase. Please use caution while using to avoid serious burns or injuries. ● Use only with the Westcott FJ400 AC/DC Lithium Polymer Battery and/or AC Power Adapter and Cord. ● Do not touch glass diffusion dome, flash tube, LED modeling lamp, or metal reflector after ... -
Page 8: Fj400 Strobe: Firmware Updates
FJ400 Strobe: Firmware Updates The FJ400 strobe is designed with a USB-C port to allow for firmware updates only. Future firmware updates will result in performance enhancements, modified menu options, and improved menu layouts. It is strongly suggested that you visit fjwestcott.com/4700 to confirm your strobe has the latest firmware. ... -
Page 9: Fj400 Strobe: Getting Started
F J400 AC/DC Lithium Polymer Battery Attach the FJ400 Battery to the strobe by aligning the silver connection points on the rear of the strobe to the holes on the silver strips located on the back of the battery and slide the battery down until it locks ... -
Page 10: Fj400 Strobe: Mounting
FF and has cooled for five minutes. 2. Loosen the umbrella tension screw. 3. Grasp the umbrella’s shaft and gently slide the umbrella out of the FJ400 umbrella receptacle. NOTE: ● Never force entry or removal of speedring, umbrellas, or modifiers. ... -
Page 11: Fj400 Strobe: Wireless Control
FJ400 Strobe: Wireless Control Fully maximize the performance and features of the FJ400 by using the FJ-X2m Wireless Radio Trigger. Read more about the trigger in the F J-X2m Wireless Trigger: Overview s ection. FJ400 Strobe: Exposure Modes ... -
Page 12: Fj400 Strobe: Sync Functions
FJ400 Strobe: SYNC Functions Enabling ‘Normal’ Sync Ideal i n normal scenarios and when color consistency f ull-power output (400 Ws), and the (5500°K ±150), fastest recycling i s essential. Press Button 1 repeatedly until M ENU 1... -
Page 13: Fj400 Strobe: Advanced Functions
“ A ll ” menu plus the number 1 for the first strobe(s) to fire in the exposure sequence of 2 or more. You can assign up to 20 individually programmed FJ400 strobes to a sequence order number (1-6). ... -
Page 14: Delay Function
Delay Function The Delay function will add a delay to the firing of the FJ400 by a custom set amount of time. Press Button 1 repeatedly until M ENU 5 a ppears in the blue square at the top right of the screen. ... -
Page 15: Menu Screen #2
○ GR - Wireless Group selection between the letters A-J. ● ID/RT Icon ► Button 4 ○ CanonRT ID values between 00-99/AU. ○ Canon Radio Triggers and speedlites can be synchronized with the FJ400 by selecting the same Channel, Group, and ID#. Menu Screen #3 ● MENU 3 ... -
Page 16: Menu Screen #6
The FJ400 Lithium-Polymer Battery (14.8V 65Wh, 4400mAh) is capable of 480+ full-power flashes with the modeling lamp disabled. In order to operate the FJ400 with the AC power supply, the FJ400 battery must have a remaining charge of ≥ 25% capacity. ... -
Page 17: Fj400 Charging & Life Expectancy
FJ400 Charging & Life Expectancy The average charge time is 2.5 hours from complete discharge. The FJ400 Lithium-Polymer Battery (14.8V 65Wh, 4400mAh) will achieve at least 300 complete charge cycles. Continued usage beyond the expected charge cycles will result in diminished performance and the ability to hold a charge. Avoid ... - Page 18 Sleep Mode DC Power: Adjustable, Off ~60min; Sleep~30min AC Power: Adjustable, Off ~60min; Sleep~30min Charge Voltage DC 16.8V FJ400: AC Power Adapter Input Range 100-240 VAC, 50/60 Hz, 1.6A Output Range DC 16.8V, 2A Power Cable Length 7.7' (2.35 m) ...
-
Page 19: Warranty Information
Warranty Period, at its option and to the extent permitted by law, Westcott will either (1) repair the defect at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new or ... -
Page 20: Legal Information
Legal Information Westcott products are made to the company’s traditionally high standards of quality and comply with all applicable government safety regulations and requirements. In an effort to provide the best quality products possible, we periodically make product modifications. Actual products may not be identical to ...
