Operation

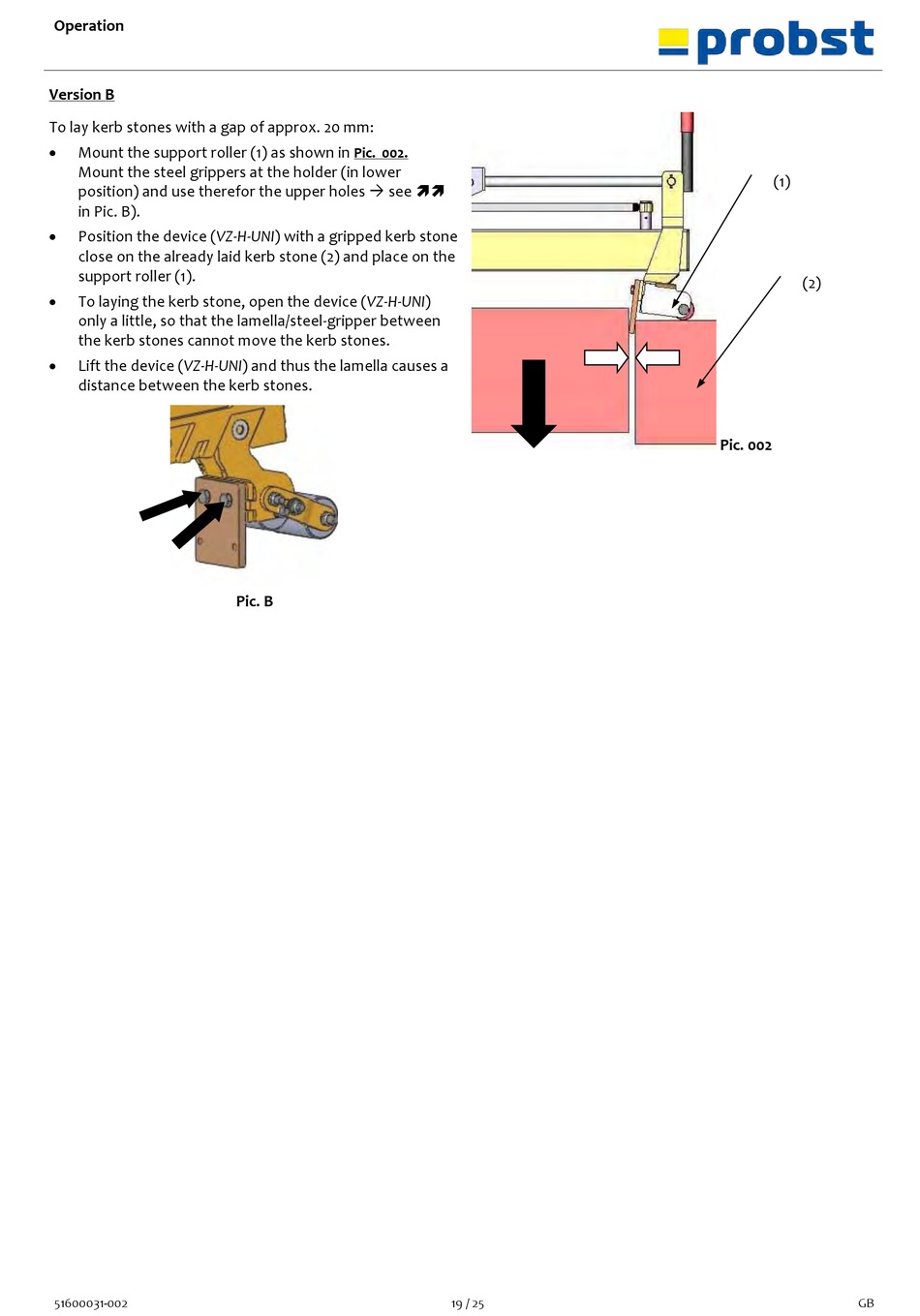

Version B
To lay kerb stones with a gap of approx. 20 mm:
•
Mount the support roller (1) as shown in
Mount the steel grippers at the holder (in lower
position) and use therefor the upper holes → see 
in Pic. B).
•
Position the device (VZ-H-UNI) with a gripped kerb stone
close on the already laid kerb stone (2) and place on the
support roller (1).
•
To laying the kerb stone, open the device (VZ-H-UNI)
only a little, so that the lamella/steel-gripper between
the kerb stones cannot move the kerb stones.
•
Lift the device (VZ-H-UNI) and thus the lamella causes a
distance between the kerb stones.
51600031-002
Pic. 002.
Pic. B
19 / 25
(1)
(2)
Pic. 002
GB
