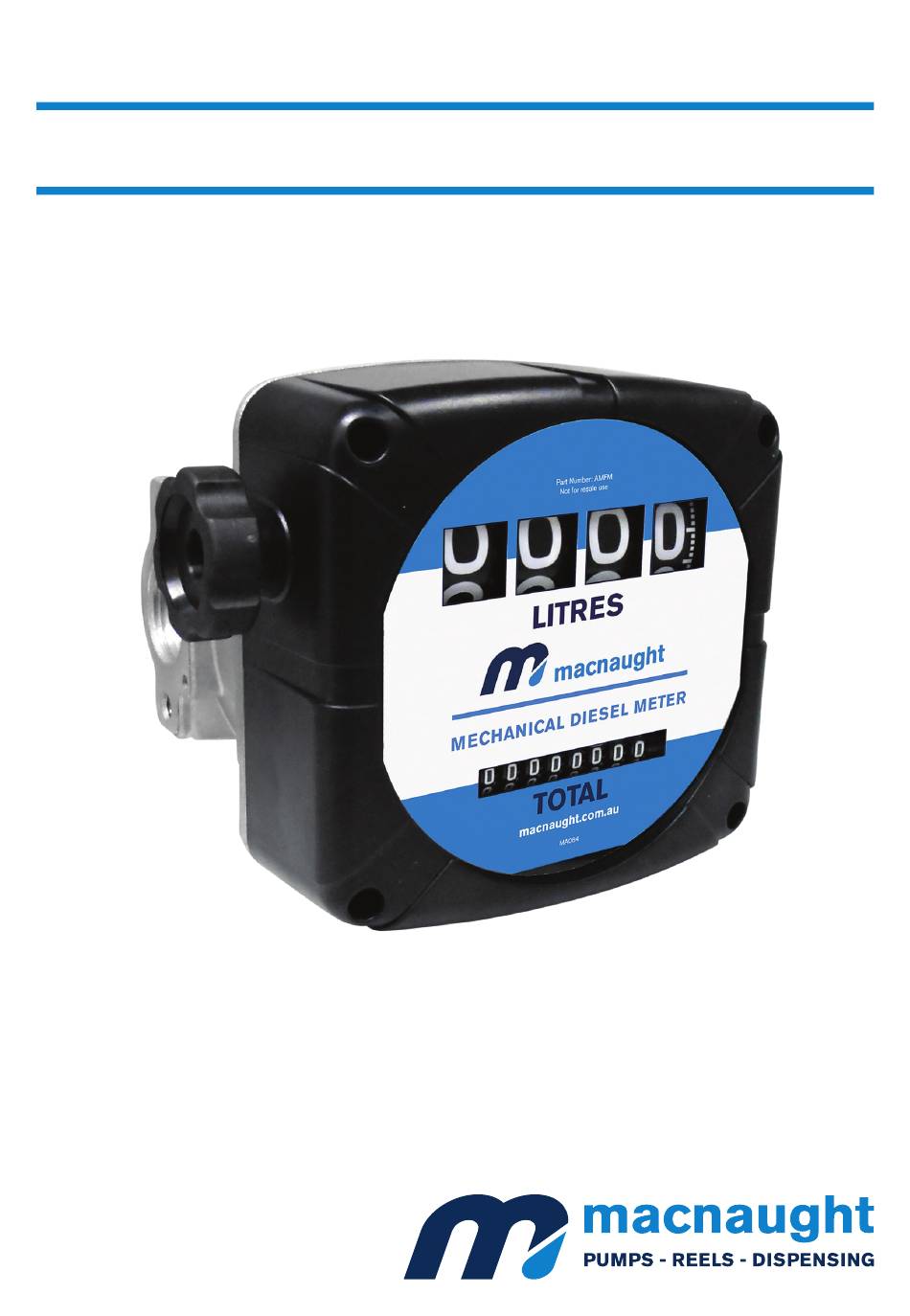

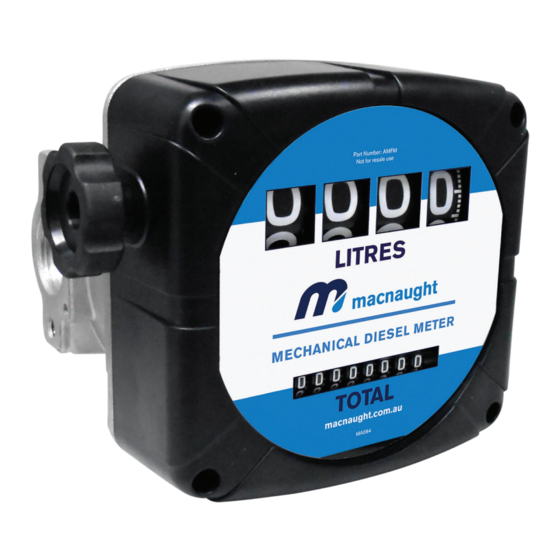

- Page 1 AMFM-issue0-2022 INSTRUCTION MANUAL MECHANICAL DIESEL METER AMFM...
-
Page 2: General Information
Macnaught recommends that a filter screen of at least 40 mesh is installed prior to the flow meter. Macnaught has a HA1S (10 micron) fuel filter available if required. DO NOT exceed a maximum pressure of 3.5 bar (50psi). -
Page 3: Meter Maintenance
Macnaught service center or distributor. NOTE: You will need to use an accurate measuring container with graduations up to at least 19 litre capacity. - Page 4 INSTRUCTION MANUAL MECHANICAL DIESEL METER AMFM METER MAINTENANCE SMONTAGGIO TESTATA, VITE DI CALIBRAZIONE, C) gears and leverism disassembly A) head disassembly, calibration screw, cap and related TAPPO E RELATIVE GUARNIZIONI seals SMONTAGGIO INGRANAGGI E LEVERISMI N° Part number Description Quantity...
- Page 5 INSTRUCTION MANUAL MECHANICAL DIESEL METER AMFM METER MAINTENANCE Item Description Q.ty Item Description Q.ty QUAD-RING GEAR WHEEL Z62 O-RING 4450 CONIC PINION SHAFT GEAR HOLDER BUSHING CONIC SHAFT GEAR WHEEL SHAFT DRAG LEVER GEAR WHEEL MEASURE CHAMBER + O-RING WHEEL GEAR SHAFT O-RING 2018 NBR SHAFT BUSHING Ø3MM...
-
Page 6: Available Accessories
MECHANICAL DIESEL METER AMFM METER PART LIST AVAILABLE ACCESSORIES Item Description chamber lid Order AMFM-1K (for pumps manufactured before Sep 2022) meter body For seal kits: Order AMFM-1K-N (for pumps manufactured after Sep 2022) measure chamber adjustament bypass screw For fascia and... -
Page 7: Meter Dimensions
INSTRUCTION MANUAL MECHANICAL DIESEL METER AMFM METER DIMENSIONS TROUBLE SHOOTING GUIDE Problem Cause Solution 1) Blockage in the fluid chamber 1) Clear blockage from fluid chamber Meter not reading 2) Check the meter orientation (flow must be 2) Meter installed incorrectly... - Page 8 Built to last since 1948 Macnaught Pty Ltd Ph: 1800 185 102 41-49 Henderson Street Fax: 1800 186 402 For Warranty Terms and Conditions see www.macnaught.com.au E-mail: info@macnaught.com.au For a list of Australian Service Centres see www.macnaught.com.au Turrella NSW 2205...
