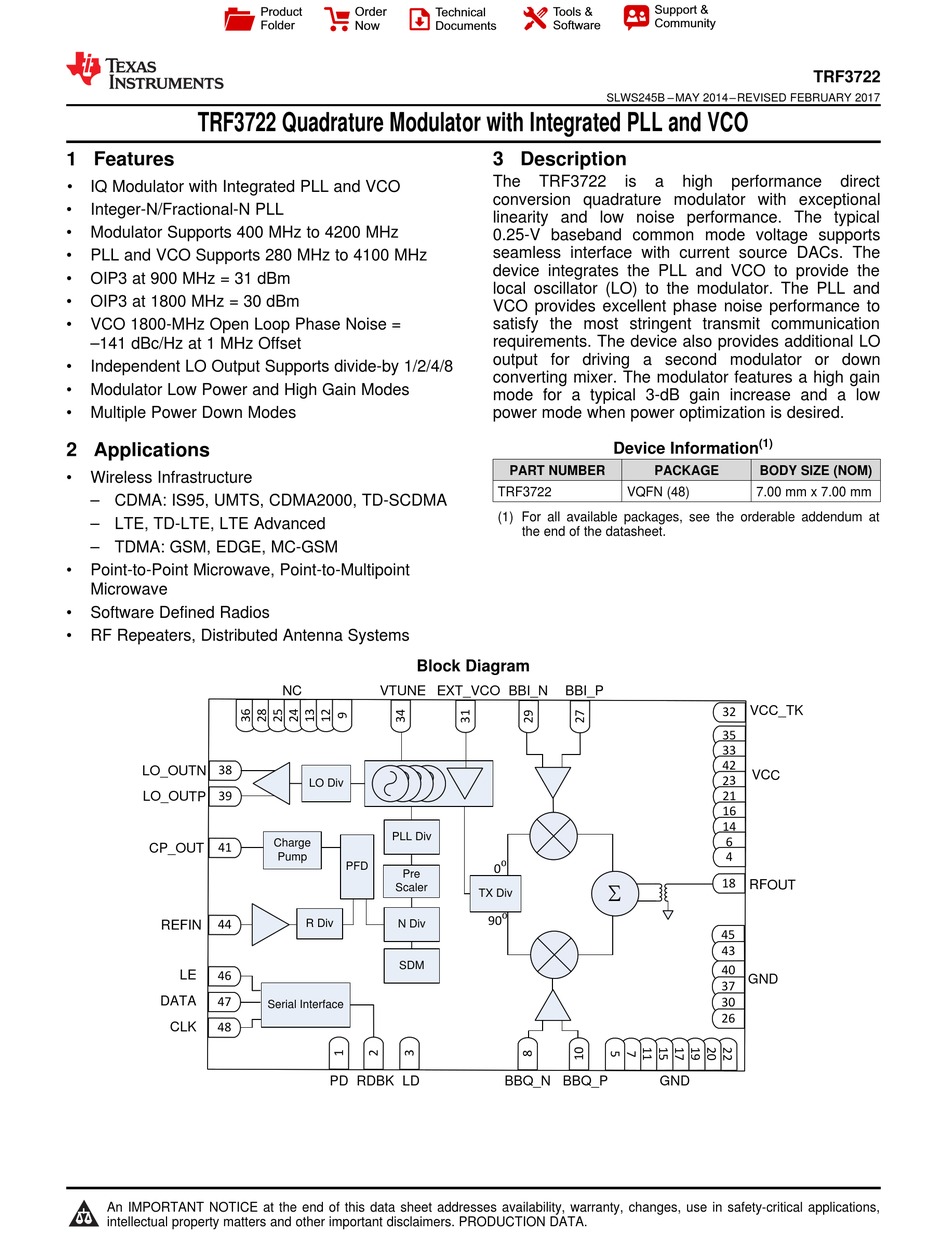

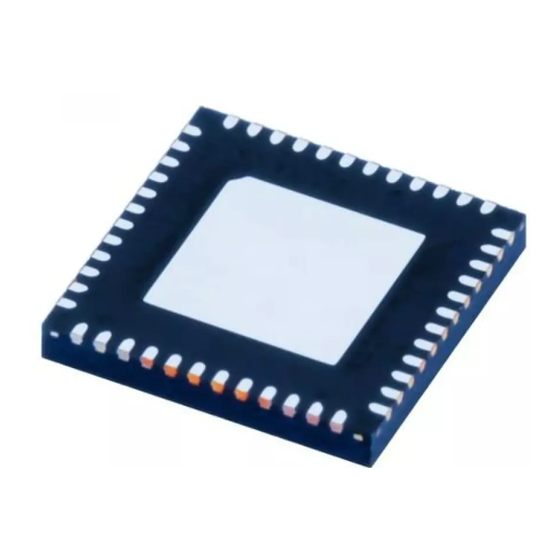

TRF3722 Quadrature Modulator with Integrated PLL and VCO
1 Features
IQ Modulator with Integrated PLL and VCO
1
Integer-N/Fractional-N PLL
Modulator Supports 400 MHz to 4200 MHz
PLL and VCO Supports 280 MHz to 4100 MHz
OIP3 at 900 MHz = 31 dBm
OIP3 at 1800 MHz = 30 dBm
VCO 1800-MHz Open Loop Phase Noise =
–141 dBc/Hz at 1 MHz Offset
Independent LO Output Supports divide-by 1/2/4/8
Modulator Low Power and High Gain Modes
Multiple Power Down Modes
2 Applications
Wireless Infrastructure
– CDMA: IS95, UMTS, CDMA2000, TD-SCDMA
– LTE, TD-LTE, LTE Advanced
– TDMA: GSM, EDGE, MC-GSM
Point-to-Point Microwave, Point-to-Multipoint
Microwave
Software Defined Radios
RF Repeaters, Distributed Antenna Systems
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
Order
Product
Technical
Folder
Now
Documents
Block Diagram
LO Div
PLL Div
Charge
Pump
PFD
Pre
Scaler
R Div
N Div
SDM
Serial Interface
Support &
Tools &
Community
Software
SLWS245B – MAY 2014 – REVISED FEBRUARY 2017
3 Description
The
TRF3722
is
a
conversion quadrature modulator with exceptional
linearity and low noise performance. The typical
0.25-V baseband common mode voltage supports
seamless interface with current source DACs. The
device integrates the PLL and VCO to provide the
local oscillator (LO) to the modulator. The PLL and
VCO provides excellent phase noise performance to
satisfy the most stringent transmit communication
requirements. The device also provides additional LO
output for driving a second modulator or down
converting mixer. The modulator features a high gain
mode for a typical 3-dB gain increase and a low
power mode when power optimization is desired.
Device Information
PART NUMBER
PACKAGE
TRF3722
VQFN (48)
(1) For all available packages, see the orderable addendum at
the end of the datasheet.
6
TX Div
TRF3722
high
performance
direct
(1)
BODY SIZE (NOM)
7.00 mm x 7.00 mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRF3722 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TRF3722

  • Page 1 Tools & Technical Community Folder Software Documents TRF3722 SLWS245B – MAY 2014 – REVISED FEBRUARY 2017 TRF3722 Quadrature Modulator with Integrated PLL and VCO 1 Features 3 Description TRF3722 high performance direct • IQ Modulator with Integrated PLL and VCO conversion quadrature modulator with exceptional •...
  • Page 2: Table Of Contents

    • Changed Figure 1 .................................. • Changed location of TRF3722 Application Schematic figure and all associated text to be under Typical Application section ....................................Changes from Original (May 2014) to Revision A Page • Changed from 1-page Product Preview to Production ......................
  • Page 3 Serial interface latch enable; digital input LO_OUTN Local oscillator output: negative LO_OUTP Local oscillator output: positive 9, 12, 13, 24, 25, 36 No connect No connect; N/C or ground to paddle Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 4: Description

    (unless otherwise noted) UNIT 3.3 V power-supply voltage 5 V or 3.3 V power-supply voltage, VCC _TK 3.3/5 Operating junction temperature range –40 °C Ambient temperature range –40 °C Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 5: Thermal Information

    Measured at f ± 2 x f –72 Baseband Third Harmonic Measured at f ± 3 x f –70 (1) Powered down output buffer and LO divider. Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 6: Electrical Characteristics

    Measured at 3 x f –31 Baseband Second Harmonic Measured at f ± 2 x f –51 Baseband Third Harmonic Measured at f ± 3 x f –69 Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 7 Reference Input Impedance Parallel resistance kΩ PFD, CP PFD Frequency Max, refer to the Typical Application Charge Pump Current 1.94 CP_OUT In-band Normalized PN Floor Integer Mode –221 dBc/Hz Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 8 Referenced to VCC_DIG 0.8 x VCC Low Level Output Voltage Referenced to VCC_DIG 0.2 x VCC (2) Divided-down ranges minimum and maximum values are typical but are not specified. Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 9 Lower Sideband Frequency Baseband second harmonic (High Side / Low Side) Baseband thrid harmonic (High Side / Low Side) Figure 1. Graphical Illustration of Modulator Output Spectrum Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 10 1000 1500 2000 2500 3000 3500 4000 4500 Frequency (MHz) Frequency (MHz) D019 D220 Figure 6. Total P vs Temperature, Low Power Mode Figure 7. Total P vs Supply, Low Power Mode Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 11: Typical Characteristics

    1000 1500 2000 2500 3000 3500 4000 4500 Frequency (MHz) Frequency (MHz) D007 D008 Figure 12. Voltage Gain vs Temperature, Low Power Mode Figure 13. Voltage Gain vs Supply, Low Power Mode Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 12 1000 1500 2000 2500 3000 3500 4000 4500 Frequency (MHz) Frequency (MHz) D013 D014 Figure 18. OIP3 vs Temperature, Low Power Mode Figure 19. OIP3 vs Supply, Low Power Mode Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 13 1000 1500 2000 2500 3000 3500 4000 4500 Frequency (MHz) Frequency (MHz) D025 D026 Figure 24. OIP2 vs Temperature, Low Power Mode Figure 25. OIP2 vs Supply, Low Power Mode Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 14: Typical Characteristics - Op1Db

    1000 1500 2000 2500 3000 3500 4000 4500 Frequency (MHz) Frequency (MHz) D031 D032 Figure 30. OP1dB vs Temperature, Low Power Mode Figure 31. OP1dB vs Supply, Low Power Mode Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 15: Typical Characteristics - Noise

    1000 1400 1800 2200 2600 Frequency (MHz) Frequency (MHz) D049 D050 Figure 36. Noise vs Temperature, Low Power Mode Figure 37. Noise vs Supply, Low Power Mode Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 16: Typical Characteristics - Unadjusted Cf

    1000 1500 2000 2500 3000 3500 4000 4500 Frequency (MHz) Frequency (MHz) D037 D038 Figure 42. Unadjustable CF vs Temperature, Figure 43. Unadjustable CF vs Supply, Low Power Mode Low Power Mode Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 17: Typical Characteristics - Unadjusted Sbs

    1000 1500 2000 2500 3000 3500 4000 4500 Frequency (MHz) Frequency (MHz) D225 D226 Figure 48. Unadjustable SBS vs Temperature, Figure 49. Unadjustable SBS vs Supply, Low Power Mode Low Power Mode Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 18: Typical Characteristics - Lo Harmonic

    1000 1500 2000 2500 3000 3500 4000 4500 Frequency (MHz) Frequency (MHz) D055 D203 Figure 54. LO Second Harmonic vs Temperature, Figure 55. LO Second Harmonic vs Supply, Low Power Mode Low Power Mode Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 19 1000 1500 2000 2500 3000 3500 4000 4500 Frequency (MHz) Frequency (MHz) D061 D206 Figure 60. LO Third Harmonic vs Temperature, Figure 61. LO Third Harmonic vs Supply, Low Power Mode Low Power Mode Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 20: Typical Characteristics - Bb Harmonic

    1000 1500 2000 2500 3000 3500 4000 4500 Frequency (MHz) Frequency (MHz) D067 D209 Figure 66. BB-HD2 vs Temperature, Low Power Mode Figure 67. BB-HD2 vs Supply, Low Power Mode Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 21 1000 1500 2000 2500 3000 3500 4000 4500 Frequency (MHz) Frequency (MHz) D073 D212 Figure 72. BB-HD3 vs Temperature, Low Power Mode Figure 73. BB-HD3 vs Supply, Low Power Mode Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 22: Typical Characteristics - Rf Output Return Loss

    800 1200 1600 2000 2400 2800 3200 3600 4000 Frequency (MHz) D120 Frequency (400 MHz to 4200 MHz) Figure 75. RF S22 vs Frequency Figure 74. Smith Chart Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 23: Typical Characteristics - Pll/Vco

    Offset Frequency (Hz) D091 D092 Figure 80. Open Loop Phase Noise at 1800 MHz vs Figure 81. Open Loop Phase Noise at 1800 MHz vs Supply Temperature Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 24 Offset Frequency (Hz) D098 D099 Figure 86. 1800 MHz Frac-N (Closed Loop Phase Noise) vs Figure 87. 2150 MHz Frac-N (Closed Loop Phase Noise) vs Supply Temperature Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 25 D104 D105 Figure 92. 3600 MHz Frac-N (Closed Loop Phase Noise) vs Figure 93. 450, 900, 1800, 3600 MHz Closed Loop Phase Supply Noise vs Offset Frequency Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 26 1000 1500 2000 2500 3000 3500 4000 4500 Frequency (MHz) Frequency (MHz) D213 D214 Figure 98. 1 x Reference Spur vs Temperature Figure 99. Reference Spur vs Supply Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 27 10 15 20 25 30 35 40 45 50 55 60 65 Frequency (MHz) - 1843.2MHz VCO_TRIM D115 D217 = 1.1 V (tune) Figure 104. 1842.2 MHz Integer Boundary Spur vs Supply Figure 105. K vs VCO Trim Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 28 1000 1500 2000 2500 3000 3500 4000 4500 Frequency (MHz) Frequency (MHz) D117 D118 Figure 108. LO Output Power at LO_OUTP vs Supply Figure 109. LO Harmonics at LO_OUTP vs Frequency Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 29 1000 1500 2000 2500 3000 3500 4000 4500 Frequency (MHz) Frequency (MHz) D232 D233 Figure 114. 3.3V Supply Current vs Temperature, Low Power Figure 115. 5V Supply Current vs Supply, Low Power Mode Mode Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 30 1000 1500 2000 2500 3000 3500 4000 4500 Frequency (MHz) Frequency (MHz) D234 D235 Figure 116. 5V Supply Current vs Temperature, Typical Figure 117. 5V Supply Current vs Temperature, Typical Operating Mode Operating Mode Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 31 Frequency (MHz) Frequency (MHz) D079 D080 Figure 122. 3.3 V P vs Temperature, Low Power Mode Figure 123. 3.3 V P vs Supply, Low Power Mode DISS DISS Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 32 1000 1500 2000 2500 3000 3500 4000 4500 Frequency (MHz) Frequency (MHz) D085 D086 Figure 128. Total P vs Temperature, Low Power Mode Figure 129. Total P vs Supply, Low Power Mode DISS DISS Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 33 7.1 Serial Interface Timing Diagram The TRF3722 features a four-wire serial programming interface (4WI) that controls an internal 32-bit shift register with seven parallel registers. There are total of three signals that must be applied: the clock (CLK), the serial data (DATA), and the latch enable (LE).
  • Page 34 Figure 131. 4WI Read-Back Timing Diagram During the writing phase a command is sent to TRF3722 register 0 to set it in read-back mode and to specify which register is to be read. In the proper reading phase, at each rising clock edge, the internal data is transferred into the RDBK pin and can be read at the following falling edge (LSB first).
  • Page 35 0.25 V common mode. It supports seamless interface with current source DACs. It also features high gain and low power operating modes. Additionally, TRF3722 integrates PLL and VCO to provide the local oscillator (LO) to the integrated modulator. The PLL and VCO provides excellent phase noise and extremely low spurious performance.
  • Page 36 0 V to 0.5 V. The baseband input lines are normally terminated externally 50 Ω on TRF3722 evaluation board, though it is possible to modify this value if necessary to match to an external filter load impedance requirement.
  • Page 37 The integer mode loop filter was designed considering loop bandwidth 40 kHz and f 2.56 MHz. Phase margin of 60 degrees was considered. Refer to TRF3722EVM User’s Guide to obtain the details on TRF3722 loop component calculations. Figure 133 shows integer loop filter.
  • Page 38 By default, the internal lock detect signal is made available on the LD terminal. Register bits MUX_CTRL can be used to control a multiplexer to output other diagnostic signals on the LD output. Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 39 In Fractional mode, small RF stepsize can be obtained through the fractional divider. In this case, the highest frequency should be selected according to the reference clock and system requirements. Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 40 Thus, bits corresponding to the fractional control in integer mode are don’t care and fractional divider functionality is disabled. Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 41 8.4.4 Selecting the VCO and VCO Frequency Control To achieve a broad frequency tuning range, the TRF3722 integrates multiple VCOs. Each VCO tank uses a bank of coarse tuning capacitor to bring VCO frequency within a few MHz of the desired value. For a given LO frequency an appropriate VCO and capacitor array must be selected.
  • Page 42 Bit24 LD_DIG_PREC VCO_CAL_REF Bit25 LO_DIV_BIAS Bit26 ICPDOUBLE MOD_ORD VCO_SEL VCO_AMPL_CTRL Bit27 TX_DIV_SEL Bit28 VCO_SEL_MODE DITH_SEL CAL_CLK_SEL VCO_VB_CTRL Bit29 CAL_ACC DEL_SD_CLK TX_DIV_BIAS Bit30 Bit31 EN_CAL EN_FRAC_MODE EN_LD_ISOURCE GAIN_CTRL Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 43 PFD frequency: [0000] = Fastest ( Rdiv / 128) Bit29 CAL_CLK_SEL<2> [1111] = Slowest (Rdiv x 128), [1000] = Default (1x Rdiv) Bit30 CAL_CLK_SEL<3> Bit31 Reserved Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 44 11 011 0.52 01 100 0.88 11 100 0.51 01 101 0.84 11 101 0.50 01 110 0.81 11 110 0.48 01 111 0.78 11 111 0.47 Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 45 Error count during the cap array calibration [00] = 0, [01] = 1/32, [10] = 1/64, [11] =1/128) Bit30 CAL_ACC<1> Bit31 EN_CAL Initiate VCO auto-calibration, resets automatically Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 46 Bit18 NFRAC<13> Bit19 NFRAC<14> Bit20 NFRAC<15> Bit21 NFRAC<16> Bit22 NFRAC<17> Bit23 NFRAC<18> Bit24 NFRAC<19> Bit25 NFRAC<20> Bit26 NFRAC<21> Bit27 NFRAC<22> Bit28 NFRAC<23> Bit29 NFRAC<24> Bit30 Reserved Bit31 Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 47 DEL_SD_CLK<0> DS modulator clock delay. Frac-n mode only. [00] = Min delay, [11] = max delay Bit30 DEL_SD_CLK<1> Bit31 EN_FRAC_MODE Enable Frac-n mode when set to 1 Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 48 [00] = 1.2 V, [01] = 1.35 V, [10] = 1.5 V, [11] = 1.65 V Bit29 VCO_VB_CTRL<1> Bit30 Reserved Enable monitoring of LD to turn on Isource; recommend [0] = Bit31 EN_LD_MON_ISOURCE Isource ctrl Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 49 [00] = 25 uA, [01] = 37.5 uA, [10] = 50 uA, [11] = 62.5 uA Bit30 TX_DIV_BIAS<1> Bit31 GAIN_CTRL Modulator gain control: [0] = Default, [1] = High Gain Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 50 R_SAT_ERR Bit13 Bit14 Bit15 Bit16 VCO_TRIM Bit17 Bit18 Bit19 Bit20 Bit21 COUNT Bit22 VCO_SEL Bit23 Bit24 Bit25 Bit26 Bit27 MUX_COUNT Bit28 Bit29 RB_REG Bit30 Bit31 MUX_COUNT RB_ENABLE Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 51 VCO_TEST_MODE = 0 Bit24 COUNT<11> Bit25 COUNT<12> Bit26 COUNT<13> Bit27 COUNT<14> Bit28 COUNT<15> Bit29 COUNT<16> Bit30 COUNT<17> Bit31 MUX_COUNT [0] = max freq count, [1] = min freq count Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 52 Three LSBs of the address for the register that is being read: Bit29 RB_REG<1> [001] = Register 1 [110] = Register 6 Bit30 RB_REG<2> Bit31 RB_ENABLE Puts device in Readback mode Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 53 REGISTER 5 VCO_BIAS REGISTER 5 VCOBUF_BIAS REGISTER 5 OUTBUF_BIAS REGISTER 5 VCOMUX_BIAS REGISTER 5 VCO_CAL_IB REGISTER 5 VCO_CAL_REF REGISTER 5 VCO_AMPL_CTRL REGISTER 5 VCO_VB_CTRL REGISTER 5 EN_LD_ISOURCE Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 54 REGISTER 6 CAL_BYPASS REGISTER 6 MUX_CTRL REGISTER 6 ISOURCE_SINKB REGISTER 6 ISOURCE_TRIM REGISTER 6 LO_DIV_SEL REGISTER 6 LO_DIV_BIAS REGISTER 6 TX_DIV_SEL REGISTER 6 TX_DIV_BIAS REGISTER 6 GAIN_CTRL Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 55 Customers should validate and test their design implementation to confirm system functionality. 9.1 Application Information 9.2 Typical Application Figure 135 shows a typical application schematic for the TRF3722. BBI N IN BBI P IN EXT VCO 4.7pF 5V or 3.3V...
  • Page 56 Reference clock input: high impedance, normally ac-coupled Serial interface latch enable: digital input, high impedance Serial interface clock input: digital input, high impedance DATA Serial interface data input: digital input, high impedance Submit Documentation Feedback Copyright © 2014–2017, Texas Instruments Incorporated Product Folder Links: TRF3722...
  • Page 57 DAC and the modulator baseband inputs should be properly maintained. With the proper interface network, the common-mode voltage of the DAC can be translated to the proper common-mode voltage of the modulator. The TRF3722 common-mode voltage is typically 0.25 V, and is ideally suited to interface with the DAC3482/3484 (DAC348x) and DAC38J8x family.
  • Page 58 10 Power Supply Recommendations The TRF3722 is powered by supplying a nominal 3.3 V and 5 V. It can also be powered using only 3.3V supply. Proper RF bypassing should be placed close to each power supply pin. Ground pin connections should have at least one ground via close to each ground pin to minimize ground inductance.
  • Page 59 The TRF3722 device is fitted with a ground slug on the back of the package that must be soldered to the printed circuit board (PCB) ground with adequate ground vias to ensure a good thermal and electrical connection. The ground pins of the device can be directly tied to the ground slug pad for a low-inductance path to ground.
  • Page 60 All other trademarks are the property of their respective owners. 12.4 Electrostatic Discharge Caution This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
  • Page 61 Drawing Ball material (4/5) TRF3722IRGZR ACTIVE VQFN 2500 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 TRF3722 IRGZ TRF3722IRGZT ACTIVE VQFN RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 TRF3722 IRGZ The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs.
  • Page 62 PACKAGE OPTION ADDENDUM www.ti.com 10-Dec-2020 Addendum-Page 2...
  • Page 63 PACKAGE MATERIALS INFORMATION www.ti.com 12-Feb-2019 TAPE AND REEL INFORMATION *All dimensions are nominal Device Package Package Pins Reel Reel Pin1 Type Drawing Diameter Width (mm) (mm) (mm) (mm) (mm) Quadrant (mm) W1 (mm) TRF3722IRGZR VQFN 2500 330.0 16.4 12.0 16.0 TRF3722IRGZT VQFN 180.0...
  • Page 64 PACKAGE MATERIALS INFORMATION www.ti.com 12-Feb-2019 *All dimensions are nominal Device Package Type Package Drawing Pins Length (mm) Width (mm) Height (mm) TRF3722IRGZR VQFN 2500 350.0 350.0 43.0 TRF3722IRGZT VQFN 213.0 191.0 55.0 Pack Materials-Page 2...
  • Page 65 GENERIC PACKAGE VIEW RGZ 48 VQFN - 1 mm max height PLASTIC QUADFLAT PACK- NO LEAD 7 x 7, 0.5 mm pitch Images above are just a representation of the package family, actual package may vary. Refer to the product data sheet for package details. 4224671/A www.ti.com...
  • Page 66 PACKAGE OUTLINE RGZ0048A VQFN - 1 mm max height PLASTIC QUADFLAT PACK- NO LEAD (0.1) TYP SIDE WALL DETAIL PIN 1 INDEX AREA OPTIONAL METAL THICKNESS (0.45) TYP CHAMFERED LEAD CORNER LEAD OPTION 1 MAX SEATING PLANE 0.05 0.08 C 0.00 2X 5.5 5.15±0.1...
  • Page 67 4219044/C 09/2020 NOTES: (continued) This package is designed to be soldered to a thermal pad on the board. For more information, see Texas Instruments literature number SLUA271 (www.ti.com/lit/slua271) Vias are optional depending on application, refer to device data sheet. If any vias are implemented, refer to their locations shown on this view.
  • Page 68 EXAMPLE STENCIL DESIGN RGZ0048A VQFN - 1 mm max height PLASTIC QUADFLAT PACK- NO LEAD 2X (6.8) SYMM ( 1.06) 48X (0.6) 48X (0.24) 44X (0.5) SYMM (5.5) (6.8) (0.63) (1.26) (R0.05) 2X (0.63) (1.26) 2X (5.5) SOLDER PASTE EXAMPLE BASED ON 0.125 mm THICK STENCIL EXPOSED PAD 67% PRINTED COVERAGE BY AREA...
  • Page 69 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2020, Texas Instruments Incorporated...
