  • Page 1 CS 80 MAGNEO Automatic sliding door operator Owner's Manual DL3316-020 – 10-2022 | EN |...

  • Page 2: Table Of Contents

    AAADM Safety information label Safety information label, full energy automatic sliding doors ANSI/BHMA A156.10 CS 80 MAGNEO door signage CS 80 MAGNEO operator configured as full energy ANSI/BHMA A156.10 CS 80 MAGNEO operator configured as low energy ANSI/BHMA A156.38 Maintenance...

  • Page 3: General Information

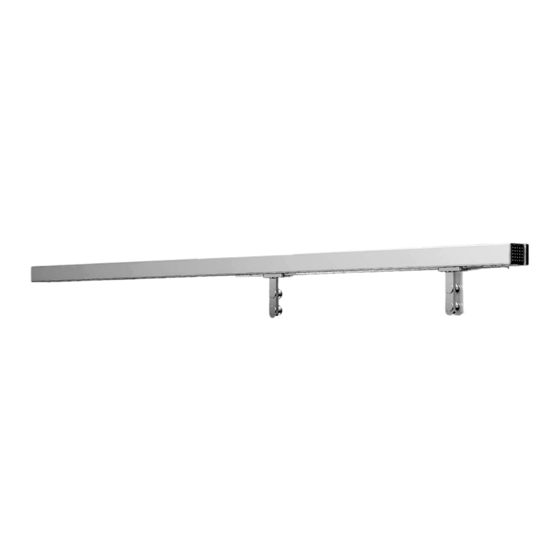

    This Owner's manual applies to dormakaba CS 80 MAGNEO automatic sliding door operator 1.2 Cover page illustration. Cover page documents the CS 80 MAGNEO ON-WALL operator configurations (Fig. 1.1). Reference Chapter 1.1 for all CS 80 MAGNEO operator configurations. ON-WALL with MANET 1.3 Manual storage.

  • Page 4: Cs 80 Magneo Operator Configurations

    CS 80 MAGNEO Owner's Manual Chapter 1 1.1 CS 80 MAGNEO operator configurations Fig.1.1.1 MAGNEO ON-WALL operator configurations Fig.1.1.3 MAGNEO IN-WALL operator configurations ON-WALL with MANET IN-WALL with MANET ON-WALL IN-WALL with WOOD with WOOD IN-WALL with ON-WALL with CLAMP CLAMP Fig.1.1.2 MAGNEO ON-GLASS operator configurations...

  • Page 5: To Our Customers

    CS 80 MAGNEO Owner's Manual Chapter 2 2 To our customers We are pleased that a dormakaba CS 80 MAGNEO 2.1 Service availability. automatic sliding door operator has been selected for dormakaba USA, Inc. has a nationwide network of this installation. dormakaba designed, tested and built authorized distributors for sales, installation and service the system to provide many years of service.

  • Page 6: What You Should Know

    5. Circuit breaker or disconnect location for (Para. 3.3.2), does not generate more kinetic energy 115 Vac power to the CS 80 MAGNEO operator. than specified in this standard, and is closed by a power 6. CS 80 MAGNEO mode switch (optional) location and mechanism or other means.

  • Page 7: Mode Switch (Option)

    CS 80 MAGNEO Owner's Manual Chapter 3 Mode switch (option) 3.5.1 Mode switch positions. 3.5.2 Mode switch position descriptions. Auto Fig. 3.5.1 Auto 1. Door opens automatically when one of the Auto activators is actuated or triggered. Door closes on expiration of adjustable hold open time with no activators or actuators triggered.

  • Page 8: Aaadm Safety Information Label

    This AAADM label outlines safety checks that should be Automatic Sliding Doors performed daily on automatic sliding door controlled by a CS 80 MAGNEO sliding door operator configured for These minimum safety checks, in addition to those in the full energy.

  • Page 9: Cs 80 Magneo Door Signage

    "ACTIVATE SWITCH TO OPERATE" on side of door DD0758-010 having knowing act switch. Each sign in minimum 1/2" DD0758-010 high letters. CS 80 MAGNEO operator configured as low energy, ANSI/BHMA A156.38 5.2.1 Overview Fig. 5.2.1 AUTOMATIC DOOR decal Signage and warnings are specified in AUTOMATIC DOOR ANSI /BHMA A156.38, American National Standard for...

  • Page 10: Maintenance

    CS 80 MAGNEO Owner's Manual Chapter 6 6 Maintenance 6.1 CS 80 MAGNEO and glass door environment and maintenance 6.1.1 Areas around door(s) and door sliding area. Fig. 6.1.1 CS 80 MAGNEO operator examples Areas around door and door sliding area must be kept clean and clear of all obstacles.
  • Page 11 CS 80 MAGNEO Owner's Manual Blank page This page left intentionally blank. CS 80 MAGNEO DL3316-020 10-2022...
  • Page 12 USA, Inc. 1 Dorma Drive, Drawer AC Reamstown, PA 17567 T: 717-336-3881 F: 717-336-2106 www.dormakaba.us...
