Overview
This work vehicle is designed and built for planting seed-
lings of various kinds (e.g. horticultural, floral, tobacco,
nursery-grown, etc.), rooted in conical, cylindrical or pyr-
amid-shaped root balls, as well as seedlings with hardly
developed leaf apparatus, those with bare roots, and
also bulbs and seeds.
The work vehicle is a semi-carried device, equipped with
a frame for attaching to the three-point hitch on a trac-
tor and it is suitable for planting in fields, greenhouses
and through plastic mulch.
Main parts

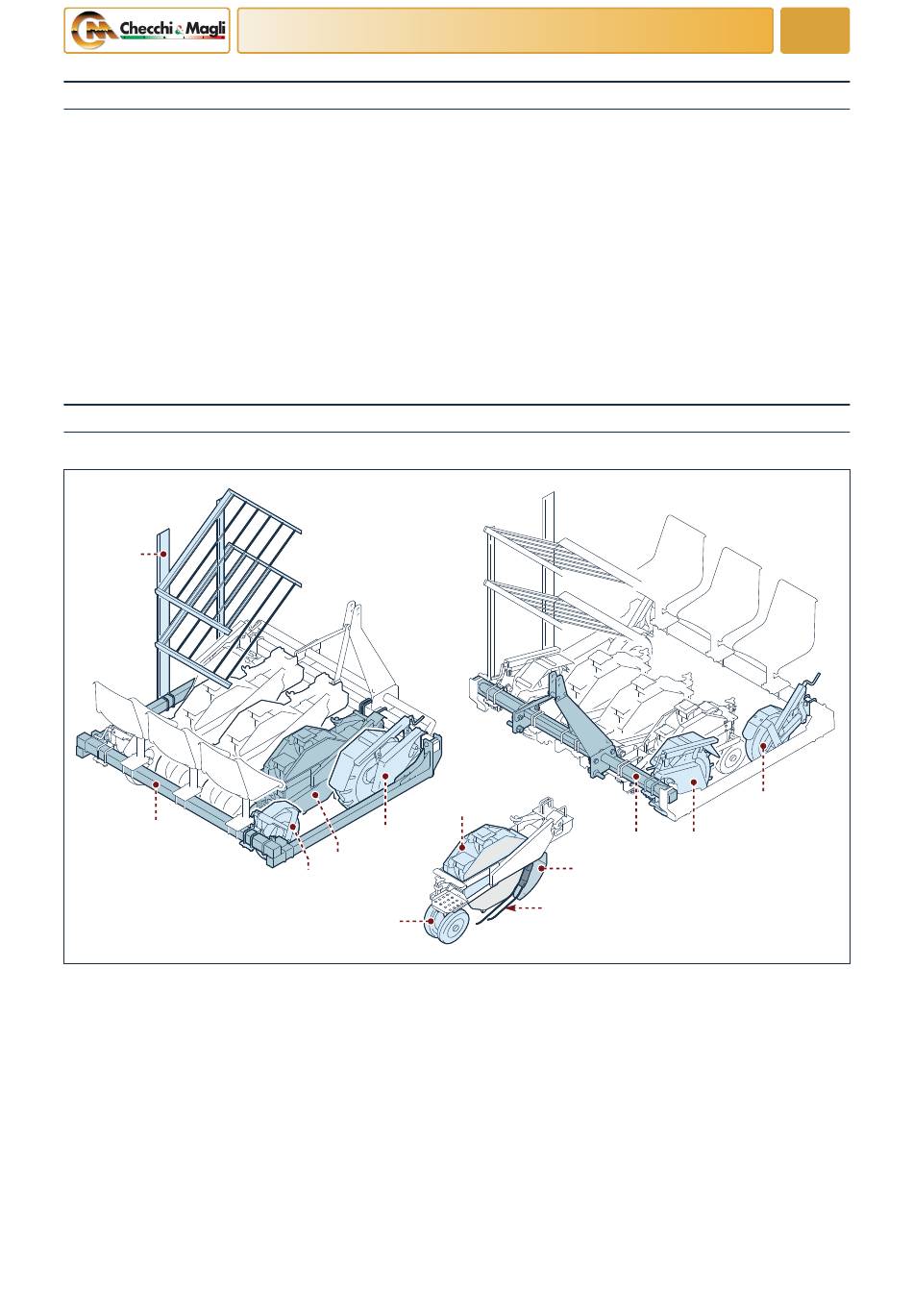

The illustration shows the work vehicle with three planting units.
G
A
UN41 0103BM
A) Frame
B) RH driving wheel
C) LH driving wheel
D) LH support wheel
E) RH support wheel
F) Planting unit
G) Tray holder
English language
TECHNICAL INFORMATION
The moving parts (dispenser with drilling cups, etc.) are
driven by the works vehicle's driving wheels (when these
are touching the ground) and the movement of the trac-
tor.
The work vehicle is manufactured in several models
which differ mainly in terms of the number of planting
units featured.
The (rear and left) driving wheels can both be power
driven, or one can be powered while the other is idle.
The model featuring one work unit has just one driving
wheel.
L
B
F
E
M
H) Structure for attaching to the three-point hitch on a
L) Dispenser
M) Packing wheels
N) Float skid
P) Plastic mulch pressing skid (for planting through
3
H
N
P
tractor
plastic mulch)
2
D
C
