Here is a list of key points to do when setting up a new Trium or UniTrium
machine. The purpose of this manual is to explain how to properly adjust
your machine. We will detail these key points, but to get started, here is
an outline below.
OUTLINE & Key-Point CHECKLIST:
There are 12 key items for optimal machine performance--
☐
☐
2) Well prepared seedling/plug/clone.
☐
3) Be sure you have the correct shoe size for your plugs/clones.
☐
4) "IN THE ROW" SPACING - Make sure the "plant-to-plant" sprocket setting is correct
☐
{
☐
5-A) 3-POINT LINKAGE - The 3 point linkage must be either vertical OR leaning slightly
☐
5-B) DRIVE WHEELS - Lower or raise the drive wheels to the point where the parallelogram
☐
5-C) DOWN-PRESSURE SPRING FOR PACKING WHEELS
☐
critical*
6) TIMING - A very important adjustment on the machine
☐
7) PACKING WHEELS - Adjust the packing wheels
☐
8) PLANT DEPTH - Adjust the depth gauge - which lowers or raises the packing wheels.
☐
9) FRONT PRESS WHEELS - Adjust the front press wheels to where they touch ground
☐
10) WATER - be sure the water is hooked up to the valves on our machines and set correctly.
☐
11) PLASTIC GUILLOTINE - this helps the plant fall straight down and not fall over
☐
12) OPERATOR WEIGHT ADJUSTMENT SPRING -adjust if one row is making a deeper furrow
World Leader in Transplanting Technology

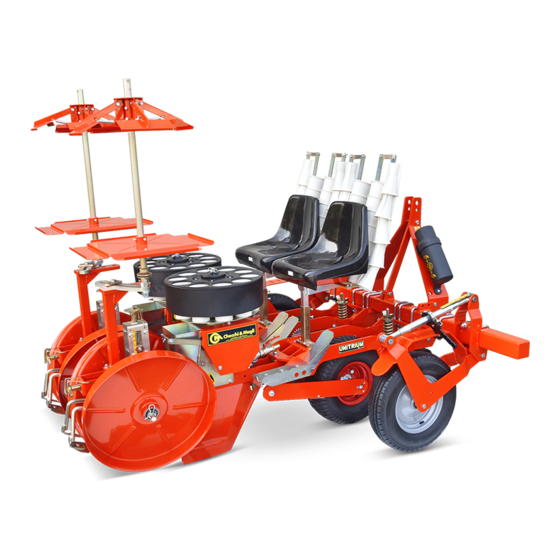

TRIUM or UniTRIUM Model
Set-up & Operating Instructions
toward the transplanter (NOT leaning toward the tractor).
(on each row - located close to the tool bar) is fairly level.
- tightening helps apply pressure to packing wheels
and provide some compaction.
(oil this bearing daily during daily planting season)
C&M North America • CandM@allenintl.net • 208-520-8222
Allen International, Inc. is the marketing arm of Checchi & Magli (C&M) and can not be held responsible if the equipment is not properly or safely used.
BestTransplanter.com
The key is to have someone trained
on your farm that becomes the
C&M EXPERT! Please read and study
this manual to understand how to
than the others.
v3
March 2020
maximize your success.
&
