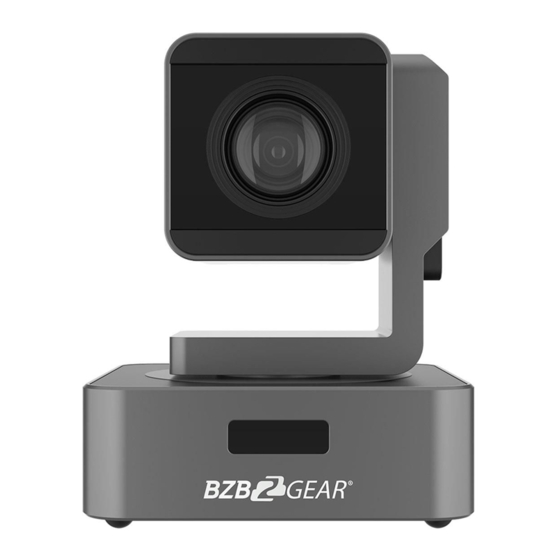

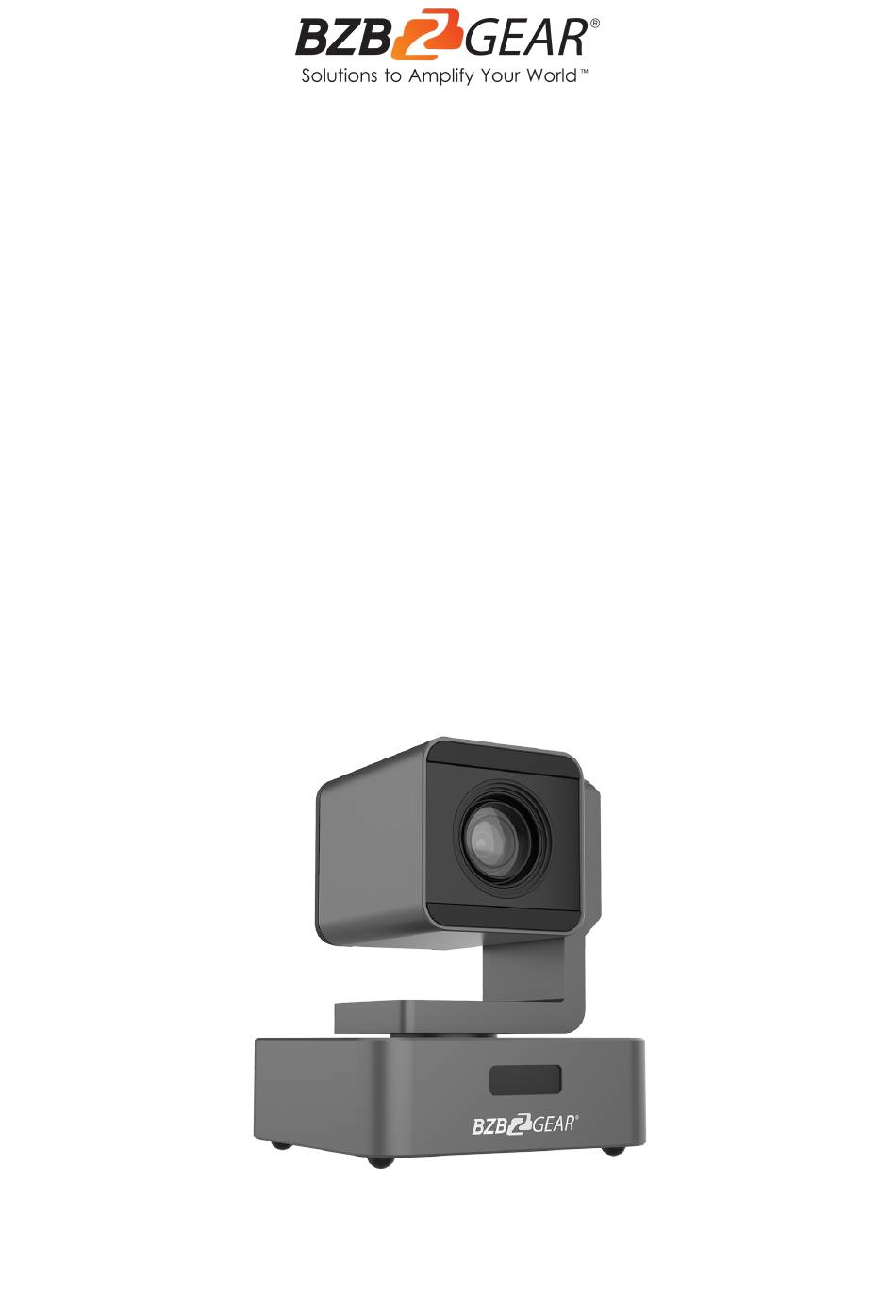

- Page 1 BG-VPTZ-HSU3 PTZ Full HD 1080P 10X/20X/30X Zoom HDMI/SDI/USB3.0/IP Live Streaming Camera with POE User Manual...
- Page 2 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Table of Contents Safety Precaution Features Packing List Specifications Operation Controls and Functions Remote Control Operation Instructions Menu Settings Network Connection Camera Web Interface Application Example Installation Instructions Tech Support Warranty Mission Statement Copyright · ·... -
Page 4: Safety Precaution
BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Features
PRODUCT MANUAL Introduction The BG-VPTZ-HSU3 is a compact 1080p HD PTZ camera. Designed with a small footprint to unobtrusively blend into offices and classrooms, this performer is equipped with simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs. The camera also supports H.264 and H.265 video compression formats, and can broadcast in ONVIF, RTSP, and... -
Page 6: Packing List
BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Packing List ● 1x BG-VPTZ-HSU3 Camera ● 1x 12V 2.0 A DC Power Adapter ● 1x IR Remote Controller ● 1x User Manual ● 1x RS-232 to DB 9-pin cable · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 7: Specifications
BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Specifications Model BG-VPTZ-10HSU3 BG-VPTZ-20HSU3 BG-VPTZ-30HSU3 Camera Parameters CMOS Sensor 1/2.7" Exmor CMOS l/2.8"Exmor CMOS l/2.8"Exmor CMOS Effective Pixels 2.7 Megapixels 2.38 Megapixels 2.7 Megapixels Video Format 1080P60/59.94/50/30/29.97/25;1080I60/59.94/50/30/29.97/25;720P60/50/30/25,480I60,576I50 Optical Zoom 10X Optical; 12X Digital Zoom 20X Optical; 12X Digital Zoom... -
Page 8: Operation Controls And Functions
BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Operation Controls and Functions Connections Overview Name IR Lens IR Receiver Power Indicator DC12V Input COM Port (RS485/RS232) LAN (PoE) 3G-SDI Output HDMI Output USB 3.0 Type-B 3.5mm Audio-Input · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... - Page 9 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL RS232 Interface Specifications For serial connection to computers or joystick controllers. RS232 INPUT Function Definition Data Terminal Ready Data Set Ready Transmit Data Ground Receive Data Ground IR OUT IR Signal Output No Connection · ·...
- Page 10 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Camera Dimensions · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 11: Remote Control
BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Remote Control Function Power Key After pressing, the camera enters standby mode P/T RST Key After pressing, the camera enters self-check Flip Key Flip the camera image Camera Select the camera to be controlled Select Key BLC Key Turn on/off... -
Page 12: Operation Instructions
BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Operation Instructions Camera ID Select Select the target camera ID (from No.1 to No.4) Pan/Tilt Control Move camera lens up ▲ Move camera lens down ▼ Move camera lens to the left ◀ Move camera lens to the right ▶... - Page 13 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Zoom Click the [+] Button, to zoom in. Click the [-] Button, to zoom out. Setting, Recalling, and Erasing Presets To save a preset, press [PRESET] then press any of the numbers (no. 1-9). You can save up to 9 presets.
-
Page 14: Menu Settings
BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Menu Settings Press the [MENU] button on the remote control to display the OSD menu. Use the arrow keys to navigate the menu, press left and right buttons to adjust the settings. Exposure Press the [MENU] button to display the OSD menu, press arrow keys to highlight EXPOSURE and then press right to enter the sub-menu. - Page 15 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Color Press the [MENU] button to display the OSD menu, press arrow keys to highlight COLOR and then press right to enter the sub menu. ● [WB MODE]: AUTO/INDOOR/OUTDOOR/ OPW/ATW/MANUAL/3000K/ 4000K/5000K/6500K ● [SATURATION]: 60%-200% ● [COLOR HUE]: 0-14 ●...
- Page 16 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL P/T/Z Press the [MENU] button to display the OSD menu, then press the arrow keys to highlight [P/T/Z] and press right to enter the sub-menu. ● [FLIP]: ON/OFF (flips image vertically) ● [L/R DIRECTION]: ON/OFF (changes L/R controls for when image is flipped)
- Page 17 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL System Setup Press the [MENU] button to display the OSD menu, press the arrow keys to highlight [SYSTEM SETUP], then press right to enter the sub-menu. ● [SYSTEM INFO]: press right button to the sub menu, as the right picture shown ●...
-
Page 18: Network Connection
BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Network Connection To successfully complete this process, you will need several pieces of information. The first is the IP address of your computer. You will also need to select an unused IP address on your local network (This is the address you will set the camera to). The third piece is the default IP address of your camera. - Page 19 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL • Right-click on your connection (Wi-Fi or Ethernet) and select ‘Properties.’ • Select ‘Internet Protocol Version 4 (TCP/IPv4)’ as shown below and click ‘Properties.’ • For the following steps refer to the diagram below. Select ‘Use the following IP address.’...
- Page 20 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL NOTE: When you are finished configuring the camera you will need to return to this screen and select ‘Obtain an IP address automatically’ and ‘Obtain DNS server automatically’ to restore internet connectivity to your computer. Also make sure to reconnect any ethernet cables you may have unplugged.
- Page 21 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL • Once you complete the camera setup, repeat the steps on your computer to adjust ‘Internet Protocol Version 4 (TCP/IPV4) Properties’ and select ‘Obtain IP address automatically’ and ‘Obtain DNS server address automatically.’ Click OK to close all network-related screens.
-
Page 22: Camera Web Interface
BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Camera Web Interface From the Web Interface you can control the camera, view the video feed, and adjust various camera settings and functions. Preview Screen From the preview screen you can view the live video feed, preview embedded audio, and adjust PTZ, Focus, and IRIS controls. - Page 23 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Configuration Screen From the configuration screen you can set and adjust all the functions and parameters of the camera. System Page The system page contains information regarding the camera, time settings, firmware, and main video output resolution.
- Page 24 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Network Page The network page includes network settings, port settings, and streaming settings. ETH Tab: Select static (Config IP Address) or DHCP (Auto IP Address), select Auto or Manual DNS settings. Service Tab MSG Port: default 8080...
- Page 25 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL RTMP Tab Enable RTMP: (Check box) Server: Enter the server URL and Stream Key of your streaming platform in the format of : rtmp://serverURL/StreamKey. (Ex. rtmp://a.rtmp.youtube.com/live2/du36-z46c-1p31-4kxw-29yx) Port: Set according to your streaming platform (YouTube=1935, Facebook=443) Stream Type: Select desired stream ONVIF Configuration Tab...
- Page 26 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL AV Page The AV page is where you will find all the audio and video settings for stream encoding. Stream Type: Use the pull-down to select which of the 3 streams you wish to adjust. When you select a stream, all options and settings on the page affect the selected stream.
- Page 27 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Image Page On the image page you will find all the image, iris, and focus settings for adjusting the camera's picture. Display Tab Brightness: Brightness adjustment slider Contrast: Contrast adjustment slider Hue: Hue adjustment slider Saturation: Color saturations adjustment slider...
- Page 28 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Camera Tab Focus Mode: Change camera focusing mode Near Limit: Set the distance from the lens for auto focusing. The camera will not focus on anything closer than the set value. Sensitivity: Auto focus sensitivity level...
- Page 29 BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Safety Page From this screen you can modify the login information PTZ Page From this screen you can view and modify the PTZ control settings of the camera. PTZ Address: Set the PTZ control address of the camera...
-
Page 30: Application Example
BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Status Page On this screen you can view the current bit rates of the 3 IP streams. Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 31: Installation Instructions
BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Installation Instructions · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 32: Tech Support
BZBGEAR BG-VPTZ-HSU3 PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.
