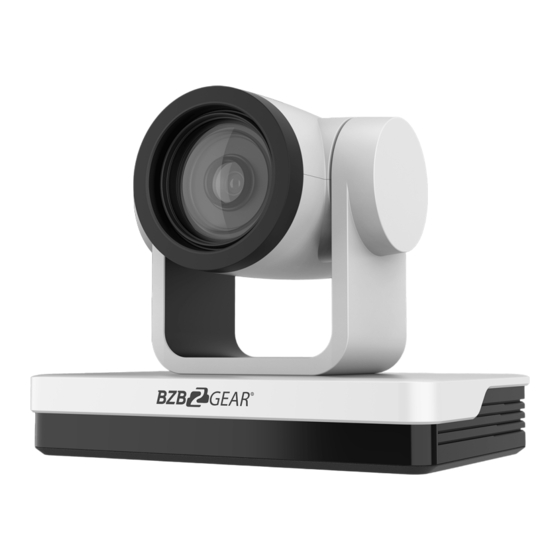

BZB Gear BG-UPTZ 12X User Manual

Live streaming camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BG-UPTZ
12x/20x/30x Universal PTZ HDMI/SDI/USB 3.0 RS232/485 Live
Streaming Camera Series
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-UPTZ 12X and is the answer not in the manual?

Questions and answers

Related Manuals for BZB Gear BG-UPTZ 12X

Summary of Contents for BZB Gear BG-UPTZ 12X

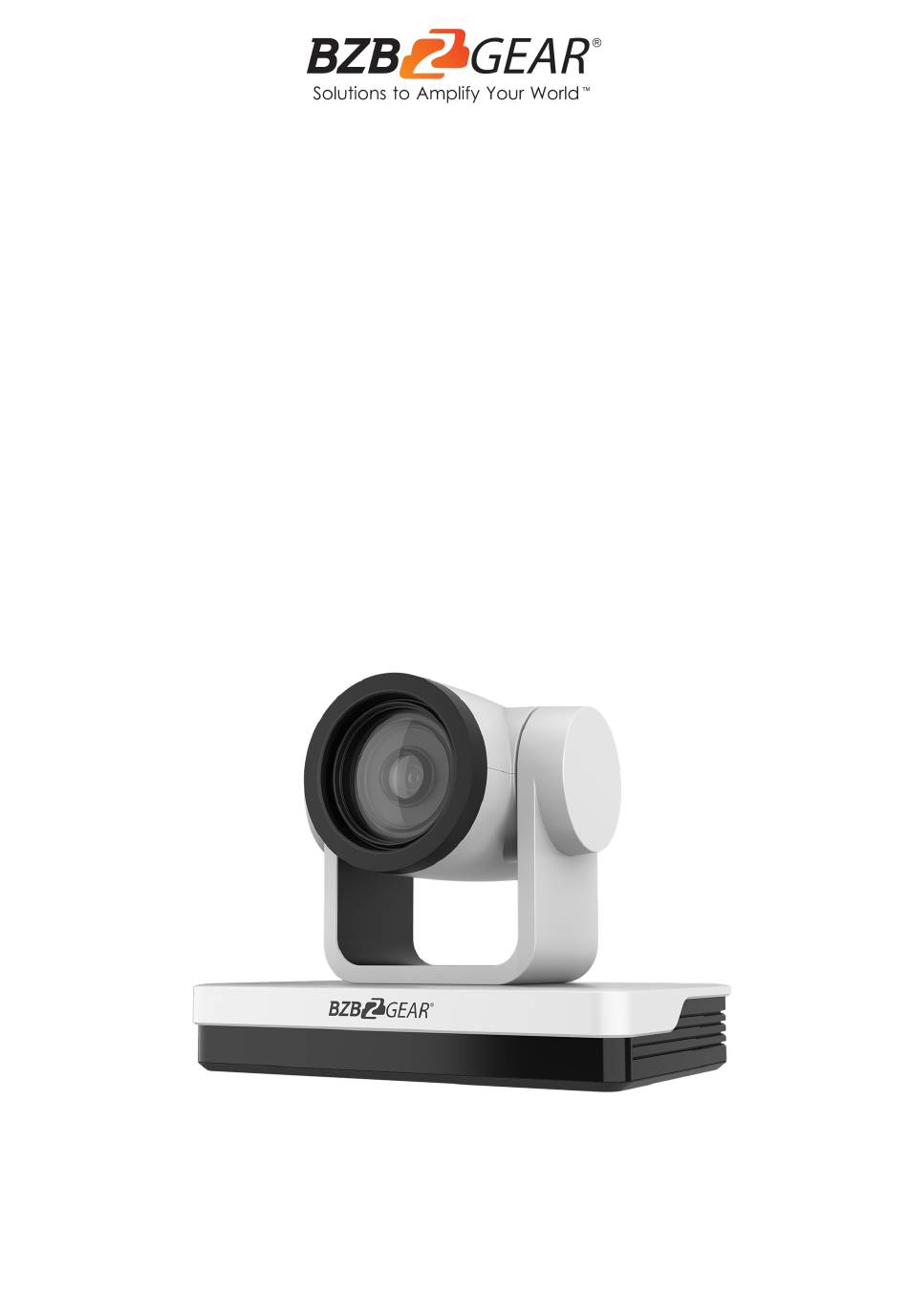

  • Page 1 BG-UPTZ 12x/20x/30x Universal PTZ HDMI/SDI/USB 3.0 RS232/485 Live Streaming Camera Series User Manual...
  • Page 2 BZBGEAR BG-UPTZ PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-UPTZ PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Interfaces and Connection Mounting Brackets RS-232 Interface Remote Control Network Configuration Serial Port Communication and Control Maintenance and Troubleshooting Tech Support Warranty Mission Statement Copyright...

  • Page 4: Statement

    BZBGEAR BG-UPTZ PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. ●...

  • Page 5: Introduction

    BZBGEAR BG-UPTZ PRODUCT MANUAL Introduction The BG-UPTZ series of cameras are packed with features, superior performance, and multiple simultaneous outputs. With its crisp 1080p60 imaging, simultaneous USB 3.0, HDMI, 3G-SDI and IP streaming capabilities these cameras perform well in a wide array of scenarios.

  • Page 6: Packing List

    BZBGEAR BG-UPTZ PRODUCT MANUAL ● Control Interface: RS485, RS232 (cascade connection) ● Multiple Control Protocol: Support VISCA, PELCO-D, PELCO-P protocols; Supports automatic identification protocols. ● Quiet Pan / Tilt Movement: Designed with high accuracy step driving motor, camera pans and tilts quietly and smoothly. ●...

  • Page 7: Specifications

    BZBGEAR BG-UPTZ PRODUCT MANUAL Specifications Model Camera Parameters Optical Zoom f＝3.9-46.8mm f＝5.2-104mm f＝4.3-129mm Sensor 1/2.8-inch high quality HD CMOS sensor Effective Pixels 16: 9, 2.07 megapixel HDMI/SDI video format 1080P60/50/30/25/59.94/29.97, 1080I60/50/59.94, 720P60/50/30/25/59.94/29.97 USB3.0 interface video format: Main-Stream: YUY2/MJPEG/NV12/H.264/H.265: Video Format 1920×1080P30,1280×720P30,1024×576P30,960×540P30,800×448P30,720×480P30,640×360P30, 640×480P30,320×176P30 Sub-Stream: YUY2/NV12: 640×360P30,640×480P30,320×176P30...

  • Page 8: Operation Controls And Functions

    BZBGEAR BG-UPTZ PRODUCT MANUAL Input Electric Current Maximum: 1A Power Consumption Maximum: 12W TCP/IP, RTSP, RTMP, ONVIF, GB/T28181 Network Protocols Network VISCA control protocol. Supports remote upgrade, reboot, and reset USB Communication UVC (Video)，UAC (UAC) PTZ Parameter Pan/Tilt Rotation ±170°, -30°～+90° Pan Control Speed 0.1 - 60°/sec Tilt Control Speed...

  • Page 9: Interfaces And Connection

    BZBGEAR BG-UPTZ PRODUCT MANUAL Interfaces and Connection Name HDMI Output USB 3.0 Output SDI Output 3.5mm Audio Input Interface (Line-in) Rotary DIP Switch RS232 Control Interface (input) RS232 Control Interface (output) RS422 Interface (Compatible with RS485) Network Interface (LAN) DC12V Input Power Supply Socket Power Switch Wiring Diagram 1.

  • Page 10: Mounting Brackets

    BZBGEAR BG-UPTZ PRODUCT MANUAL Mounting Brackets Notes: Ceiling or wall mounting brackets should only be installed on sturdy walls rated to support mounted objects. For safety reasons, plasterboard is not recommended. ● Wall Mounting: · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 11 BZBGEAR BG-UPTZ PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 12 BZBGEAR BG-UPTZ PRODUCT MANUAL ● Ceiling Mounting · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 13: Rs-232 Interface

    BZBGEAR BG-UPTZ PRODUCT MANUAL RS-232 Interface RS-232 Interface Definition · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 14 BZBGEAR BG-UPTZ PRODUCT MANUAL RS232 Mini-DIN 8-pin: Port Definition Port Definition Data Terminal Ready Data Set Ready Transmit Data Signal Ground Receive Data Signal Ground IR OUT IR Commander Signal No Connection RS232 (DB9) Port Definition Port Definition Data Carrier Detect Receive Data Transmit Data Data Terminal Ready...

  • Page 15: Remote Control

    BZBGEAR BG-UPTZ PRODUCT MANUAL Rotary DIP Switch Dial-up Video Format Dial-up Video Format 1080p60 1080p59.94 1080p50 1080i59.95 1080i60 1080p29.97 1080i50 720p59.94 1080p30 720p29.97 1080p25 720p29.97 720p60 720p29.97 720p50 Set by menu Note: You must reboot the camera for settings to take effect when the video format is switched using the Rotary DIP Switch.
  • Page 16 BZBGEAR BG-UPTZ PRODUCT MANUAL Keys Introduction for IR Remote Control ● In this manual, “press the key” means a click rather than a long-press, and a special note will be given if a long-press for more than one second is required. ●...
  • Page 17 BZBGEAR BG-UPTZ PRODUCT MANUAL Set and Clear Presets Set Preset: press 【SET PRESET】 button, and then press the number key 0-9 to set preset positions. Note: 10 presets are available via the remote control. Call Preset: Press a number key (0-9) to call a preset position.
  • Page 18 BZBGEAR BG-UPTZ PRODUCT MANUAL 8. Camera Remote Control Address Setting 【*】+【＃】+【F1】:Camera Address No.1 【*】+【＃】+【F2】:Camera Address No. 2 【*】+【＃】+【F3】:Camera Address No. 3 【*】+【＃】+【F4】:Camera Address No. 4 9. Key Combination 1) 【#】+【#】+【#】: Clear all presets 2) 【*】+【#】+【6】: Restore factory defaults 3) 【*】+【#】+【3】: Menu set to Chinese 4) 【*】+【#】+【4】: Menu set to English 5) 【*】+【#】+【9】: Flip switch 6) 【*】+【#】+Auto: Enter aging mode...
  • Page 19 BZBGEAR BG-UPTZ PRODUCT MANUAL 2. Menu Tree · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 20: Network Configuration

    BZBGEAR BG-UPTZ PRODUCT MANUAL Network Configuration Network Connection Connection Modes Direct connection: Connect the camera directly to the computer using an ethernet cable. Internet connection mode: Connect the camera and computer to a router or switch and access via the local area network (LAN). Note: Ensure power and network connections are secured to prevent video issues caused by poor connection quality.
  • Page 21 BZBGEAR BG-UPTZ PRODUCT MANUAL For the following steps refer to the diagram below. Click on the bubble for “Use the following IP address” In the IP address field enter a non-conflicting IP address on the same subnet as the camera. If there is another device with the same IP address you will not be able to connect. In the example below we are using 192.168.5.200 In the Subnet mask field enter 255.255.255.0 In the Default gateway field type 192.168.5.1...
  • Page 22 BZBGEAR BG-UPTZ PRODUCT MANUAL Streaming 1. Video Stream Capture Configurations -> Video Configure-> Video Encode Configure the parameters according to the network environment. Note: stream name live/av0 (live/ XXX) For example: The default IP address of the camera is 192.168.5.163. The way to obtain the RTSP video stream is as below rtsp://192.168.5.163:554/live/av0（av0 mainstream）...

  • Page 23: Serial Port Communication And Control

    BZBGEAR BG-UPTZ PRODUCT MANUAL To push a RTMP stream to a public network server, the stream camera must be on the public network, otherwise it will fail to connect to the server. Host address: server address, which can be either a domain name or an IP address Host port: server default port number Stream name: live/test (live/XXX) Username and password: the username and password set by the server, or leave it empty...
  • Page 24 BZBGEAR BG-UPTZ PRODUCT MANUAL VISCA Protocol Control Command Command Function Command packet Note AddressSet Broadcast 88 30 0p FF p：Address setting IF_Clear Broadcast 88 01 00 01 FF I/F Clear CommandCancel 8x 21 FF 　 　 CAM_Power 8x 01 04 00 02 FF Power ON/OFF Off...
  • Page 25 BZBGEAR BG-UPTZ PRODUCT MANUAL Command Function Command packet Note CAM_ Bgain Reset 8x 01 04 04 00 FF 8x 01 04 04 02 FF Manual Control of B Gain Down 8x 01 04 04 03 FF Direct 8x 01 04 44 00 00 0p 0q FF pq: B Gain CAM_AE Full Auto...
  • Page 26 BZBGEAR BG-UPTZ PRODUCT MANUAL Command Function Command packet Note CAM_Low-Light 8x 01 04 2D 01 FF Low-Light Mode Setting Mode 8x 01 04 2D 00 FF CAM_Flicker 8x 01 04 23 00 FF 50HZ 8x 01 04 23 01 FF 50HZ 60HZ 8x 01 04 23 02 FF...
  • Page 27 BZBGEAR BG-UPTZ PRODUCT MANUAL Command Function Command packet Note Pan_tiltDrive 8x 01 06 01 VV WW 03 01 FF Down 8x 01 06 01 VV WW 03 02 FF Left 8x 01 06 01 VV WW 01 03 FF Right 8x 01 06 01 VV WW 02 03 FF Upleft 8x 01 06 01 VV WW 01 01 FF...
  • Page 28 BZBGEAR BG-UPTZ PRODUCT MANUAL Command Command Packet Return Packet Note CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain CAM_AEModeInq 8x 09 04 39 FF y0 50 00 FF Full Auto y0 50 03 FF Manual y0 50 0A FF Shutter priority...
  • Page 29 BZBGEAR BG-UPTZ PRODUCT MANUAL Command Command Packet Return Packet Note y0 50 01 FF Flip-H y0 50 02 FF Flip-V y0 50 03 FF Flip-HV CAM_GammaInq 8x 09 04 5B FF y0 50 0p FF p: Gamma setting CAM_Low-LightModeInq 8x 09 04 2D FF y0 50 00 FF y0 50 01 FF CAM_VersionInq...
  • Page 30 BZBGEAR BG-UPTZ PRODUCT MANUAL Pelco-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed...

  • Page 31: Maintenance And Troubleshooting

    BZBGEAR BG-UPTZ PRODUCT MANUAL Maintenance and Troubleshooting Maintenance 1. Power off the camera and disconnect the power adapter if it’s not in use for long periods of time. 2. Use a soft cloth or tissue to clean the camera cover. 3.

  • Page 32: Tech Support

    BZBGEAR BG-UPTZ PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.

This manual is also suitable for:

Bg-uptz 20xBg-uptz 30x
