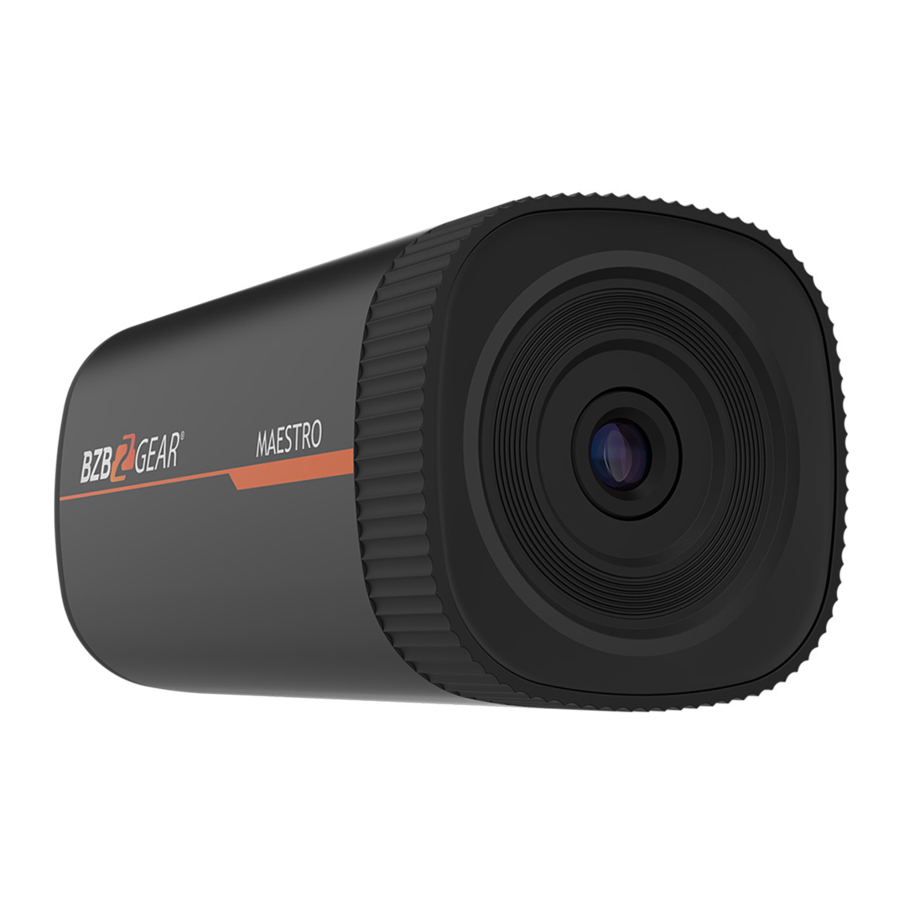

BG-MAESTRO
1080P Full HD 8 Megapixel 3G-SDI or HDMI Auto Tracking Wide
Angle ePTZ Camera with USB 3.0/IP/POE
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-MAESTRO and is the answer not in the manual?

Questions and answers

Related Manuals for BZB Gear BG-MAESTRO

Summary of Contents for BZB Gear BG-MAESTRO

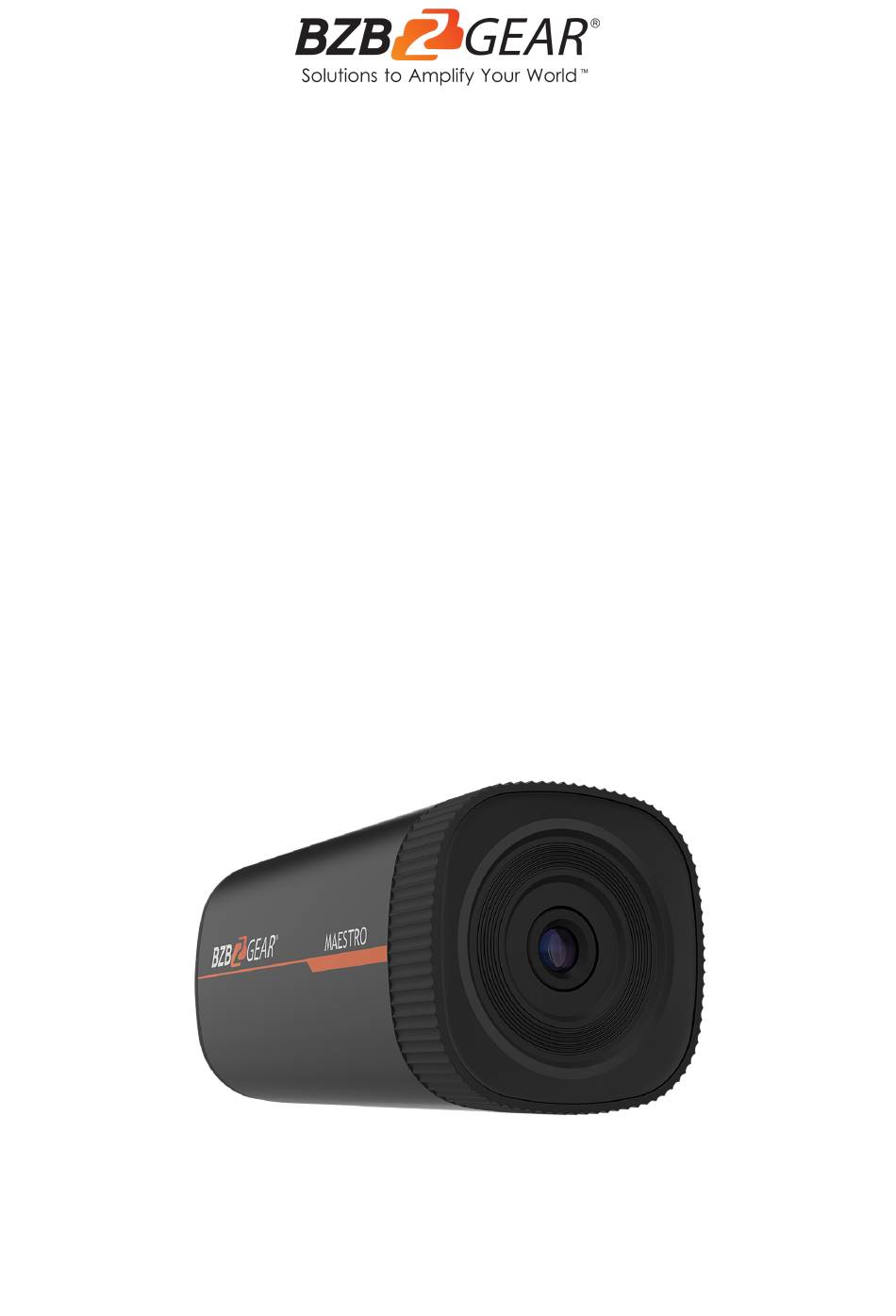

  • Page 1 BG-MAESTRO 1080P Full HD 8 Megapixel 3G-SDI or HDMI Auto Tracking Wide Angle ePTZ Camera with USB 3.0/IP/POE User Manual...
  • Page 2 BZBGEAR BG-MAESTRO PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-MAESTRO PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions System Connection Network Connection Description of Recording and Broadcasting Host Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 4: Statement

    BZBGEAR BG-MAESTRO PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation.

  • Page 5: Introduction

    The BG-MAESTRO features a 1/2.8” high quality 4K CMOS sensor and can simultaneously output USB 3.0, 3G-SDI / HDMI, and IP streaming in resolutions up to 1080p@30Hz. With 3x digital zoom and ePTZ controls, the camera automatically tracks subjects between distances of 15ft to 50ft within its field of view.

  • Page 6: Packing List

    BZBGEAR BG-MAESTRO PRODUCT MANUAL Packing List ● 1x BG-MAESTRO Camera ● 1x Metal Wall/Ceiling Mount (White) ● 1x 10' USB 3.0 Cable ● 1x User Manual Specifications Camera/Lens Parameters Image Sensor 1/2.8" High Quality 4K CMOS Sensor Effective pixels 8.28 Megapixel, 16:9 SDI /HDMI output: 1080p@30Hz/25Hz;...

  • Page 7: Operation Controls And Functions

    BZBGEAR BG-MAESTRO PRODUCT MANUAL Other Parameters Stored Temperature -10°C ~ +60°C Stored Humidity 20% ~ 95% Working Temperature -10°C ~ +50°C Working Humidity 20% ~ 80% Dimension (W x H x D) 149 x 76 x 76mm Weight Approx. 1.17 lbs [0.53kg]...
  • Page 8 BZBGEAR BG-MAESTRO PRODUCT MANUAL Dimension · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 9: System Connection

    BZBGEAR BG-MAESTRO PRODUCT MANUAL System Connection Installation Layout Teacher tracking camera is installed at 1.6 – 2.1m (5 – 7 feet) from ground (distance from panoramic lens to ground), and the distance from the blackboard is 5 -9 m (15 – 30 ft).

  • Page 10: Network Connection

    BZBGEAR BG-MAESTRO PRODUCT MANUAL System Wiring The teaching tracking camera products provide a smart camera solution for education environments, and customers can select all or some products as needed. Different combinations of products meet the demands of customers’ in various scenarios.
  • Page 11 BZBGEAR BG-MAESTRO PRODUCT MANUAL To connect to the camera, open the Local Area Connection Properties on the computer. For Windows users right-click on the internet connection in the lower right corner of the desktop. Select “Open Network & Internet Settings.”...
  • Page 12 BZBGEAR BG-MAESTRO PRODUCT MANUAL Note: When you are finished configuring the camera you will need to return to this screen and click the bubbles for “Obtain an IP address automatically” and “Obtain DNS server automatically” to restore internet connectivity to your computer. Also make sure to reconnect any ethernet cables you may have unplugged.
  • Page 13 BZBGEAR BG-MAESTRO PRODUCT MANUAL Browser Preview After successful login into the management interface, it enters the video preview interface. In the preview screen, users can: control pan, tilt, zoom, focus, video capture, sound, full screen, set the preset position, run, delete, along with other operations.
  • Page 14 BZBGEAR BG-MAESTRO PRODUCT MANUAL Video Configuration 1. Video Encoding Code stream: Different video output mode setting, use different streams. (close-up main stream, close-up sub-stream, panoramic main stream, panoramic sub-stream, and broadcast code stream) Compression Format: Set the video compression format, save and reboot to take it effect (main / secondary stream default: H.264, H.265 optional)
  • Page 15 BZBGEAR BG-MAESTRO PRODUCT MANUAL 2. Stream Release Switch: To turn on/off close-up main stream, close-up sub-stream, panoramic main stream, panoramic sub-stream and blackboard code stream. Protocol: primary / secondary stream applies RTMP protocol. Host Port: server port number (default 1935, 0-65535 optional) Host Address: server IP addresses (default 192.168.5.11)
  • Page 16 BZBGEAR BG-MAESTRO PRODUCT MANUAL b. Color: White balance, saturation, color, white balance, sensitivity, color temperature, gain red and blue gain can be set. White balance modes: Set the white balance mode (the default automatic, 2400K-7100K, manual, One-push optional). Note: Click the “Correction” button when selected the One-push white balance mode.
  • Page 17 BZBGEAR BG-MAESTRO PRODUCT MANUAL 6. Character Size Main stream character size: Set the character size of the display, the device will restart Automatically after changed and saved (default 48, 28-200 optional) Secondary stream character size: Set the character size of the display, the device will restart automatically after changed and saved (default 48, 28-200 optional) Click on the "Save"...
  • Page 18 BZBGEAR BG-MAESTRO PRODUCT MANUAL Physical Address: Set the physical address (the parameter is read-only and cannot be modified). Click on the "Save" button, it will be valid when display "Save successful". (Note: To prevent IP conflicts When modify) 3. DNS parameters Preferred DNS server: set the preferred DNS server.
  • Page 19 BZBGEAR BG-MAESTRO PRODUCT MANUAL Computer Time: Set the computer synchronization valid. Update interval: Set the NTP server automatic updated time interval. Valid after setting NTP server synchronization (default one day, 2-10 days Optional). NTP server address or domain name: Set NTP server address or domain name (default time.nits.gov).
  • Page 20 BZBGEAR BG-MAESTRO PRODUCT MANUAL 5. Restore factory setting Click on pop-up "Restore Factory Defaults" button and choose “yes” or “no”, then the device will restart automatically and restore factory setting. 6. Reboot Click on the pop-up "Reboot" button and choose “yes” or “no”, then the device will restart automatically.
  • Page 21 BZBGEAR BG-MAESTRO PRODUCT MANUAL Teacher Tracking Configuration The following instructions are given in accordance with the setup flowchart. The main interface of teacher tracking configuration is shown in Figure 5.6-1 Figure 5.6-1 Operation interface 1. Click stop tracking 2. Preset setting of the platform The operation interface for setting the preset position is shown in Fig.
  • Page 22 BZBGEAR BG-MAESTRO PRODUCT MANUAL Figure 5.6-2 Operation interface Platform preset: Control teacher tracking camera to capture the platform (we suggest that teachers stand in the middle of platform during setup) in camera image, then click and save platform preset. During normal tracking, the size of the teacher’s image in the picture uses Platform preset as a reference.
  • Page 23 BZBGEAR BG-MAESTRO PRODUCT MANUAL Panoramic preset: Control teacher tracking camera to capture a panoramic view of the classroom (or any position). When tracking target disappears, the close-up lens will return to panoramic position. 4. Area settings (ON: show the mask area; OFF: hide the mask area) 5.
  • Page 24 BZBGEAR BG-MAESTRO PRODUCT MANUAL 7. Advanced settings Target lost: This feature is to make sure that when the target lost, lens will return to the assigned preset. It has 2 modes for option: panoramic preset and close-up preset. Figure 5.6-6 Operation interface...
  • Page 25 BZBGEAR BG-MAESTRO PRODUCT MANUAL Tracking sensitivity: In teacher tracking mode, how much action is required to trigger the tracking camera when the tracking target changes from stationary state to motion state. The higher the action sensitivity, the smaller movement of tracking target that will trigger camera’s tracking motion.
  • Page 26 BZBGEAR BG-MAESTRO PRODUCT MANUAL 1. Click “Stop” tracking 2. Panoramic preset configuration The operation interface for setting the preset position is shown in Figure 5.6-9. By controlling the position and ZOOM value of the PTZ, the camera angle and position are adjusted to the preset position and saved.
  • Page 27 BZBGEAR BG-MAESTRO PRODUCT MANUAL 5. Advanced settings Target lost: This feature is to make sure when the target is lost, lens will return to the assigned preset, which can be either left in place or the panoramic preset. Figure 5.6-11 Operation interface Multi-targets: When multi-targets are detected, you can choose “Close-up”...

  • Page 28: Description Of Recording And Broadcasting Host

    BZBGEAR BG-MAESTRO PRODUCT MANUAL Target lost time(s): It means how much time is required (60s by default) for tracking camera to perform “target lost action” when target is lost (default: return to panoramic preset). For the setting of the action code, see the chapter "6. Recording and broadcasting host connection instructions".
  • Page 29 BZBGEAR BG-MAESTRO PRODUCT MANUAL Action Code Docking Tracking status of teacher tracking camera will be feedback to recording and broadcasting host in real time via network (UDP transmission mode) in the action code form. 1. Configuration of recording and broadcasting host address If recording and broadcasting host uses LAN to receive action code, then it needs to configure host address by web browser.

  • Page 30: Tech Support

    BZBGEAR BG-MAESTRO PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.

  • Page 31: Mission Statement

    BZBGEAR BG-MAESTRO PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog.

  • Page 32: Copyright

    BZBGEAR BG-MAESTRO PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
