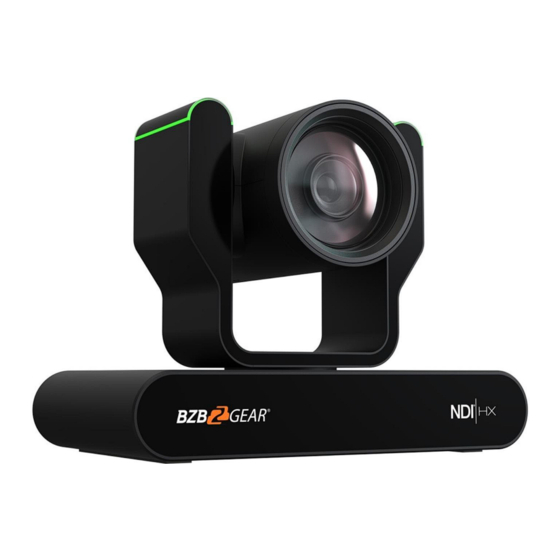

- Page 1 BG-ADAMO-JRND 1080P HD AUTO TRACKING HDMI 2.0/3G-SDI/USB 2.0/USB 3.0/NDI HX|3 Live Streaming PTZ Camera with Tally Lights User Manual...
-
Page 2: Table Of Contents
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Table of Contents Statement Safety Precaution Introduction Features Packing List Specifications Installation and Handling Caution Camera Interface Mounting Wall Mounting Ceiling Mounting Operating Instructions Power on and Self-check Remote Remote Buttons Introduction Network Connection Web Client Login... -
Page 3: Statement
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 4: Introduction
PRODUCT MANUAL Introduction The BZBGEAR BG-ADAMO-JRND is an ultra-high-definition PTZ camera that delivers 1080P resolution video at 60 fps. Available in a 12x optical zoom lens with a 70.28° wide- angle, 20x optical zoom lens with a 60.05° wide-angle, or 30X optical zoom 58.1°wide- angle lens. -
Page 5: Packing List
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Packing List • • 1 x BG-ADAMO-JRND 1 x User Manual • • 1 x IR Remote Control 1 x 12V/1.5A Power Supply Specifications Camera Parameters Optical Zoom f=4.1 mm～ 49.2mm ±5% f=5.05 mm～ 91.49 mm ±5% f=5.2 mm～... - Page 6 BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode ≥50dB Interface Product Interfaces HDMI, 3G-SDI, LAN (supports PoE+), USB 2.0, A-IN, USB 3.0, SD (FAT32), 5-pin Phoenix terminal (compatible with RS232 andRS485), DC12V, Power Switch LAN Interface: H.264, H.265 Video Compression Format USB 2.0 Interface: MJPG, H264, YUY2, NV12...
-
Page 7: Installation And Handling Caution
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Installation and Handling Caution ● Do not manually rotate the camera head as it could cause mechanical failure. ● Place the camera on a stable table or horizontal surface. Installing on a slanted surface will result in a slanted image. -
Page 8: Mounting
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Mounting Note: Ceiling or wall mounting brackets should be mounted to a wooden or concrete wall. Mounting to plasterboard is not recommended for safety reasons. Wall Mounting Limited Post 1/4-20 UNC Bolt Anti-vibrate Cushion M6 Swelling Bolts... -
Page 9: Ceiling Mounting
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Ceiling Mounting · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 10: Operating Instructions
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Operating Instructions OWER ON AND CHECK 1. Power-on: Connect the DC12V power adaptor to the power supply socket on the back of the camera. or connect to a PoE enabled network switch using a category cable. -
Page 11: Remote
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL EMOTE One-to-One Code Matching: Out of the box the remote is automatically paired with the camera. Should the camera need to be re-pair with the remote, perform the steps below. 1. Press the "set" and " * " keys combined for 3 seconds. The LED indicator will start flashing. - Page 12 BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL 2. Camera Selection Select the camera’s address to control it. 3. Pan/Tilt Control Up: press Down: press Left: press Right: press Return to middle position: press 【HOME】 Press and hold the up, down, left, or right button to pan/tilt the camera.
- Page 13 BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL 6. Auto Tracking Buttons F1: Turn off auto tracking F2: Turn on auto tracking F3: Switch auto tracking modes F4: Switch auto tracking to follow a different person 7. Key Combinations 【#】+【#】+【#】: Cancel all preset positions 【*】+【#】+ 【Manual】: IP, username, password...
- Page 14 BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL 1. Main Menu · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 15: Network Connection
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Network Connection Connection Mode ● Direct connection: Connect the camera directly to the computer using an ethernet cable. ● Internet connection mode: Connect the camera and computer to a router or switch and access via the local area network (LAN). - Page 16 BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL ● Right-click on your connection and select “Status". Then click “B” Take note of your current IPv4 Address and Default Gateway as you will need this information later. Close the Details and Status windows. ● Right-click on your connection (Wi-Fi or Ethernet) and select “Properties”.
- Page 17 BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL For the following steps refer to the diagram below. ● Click on the bubble for “Use the following IP address” ● In the IP address field, enter a non-conflicting IP address on the same subnet as the camera.
-
Page 18: Web Client Login
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Web Client Login ● Enter 192.168.5.163 in the address bar of your internet browser and click “Enter”. Login as the administrator (Default Username/Password: admin). Users can preview and configure in the Web Client. ● When logged in as a normal user (Default Username/Password: user1 or user2), users can only preview with no options for configuration. - Page 19 BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL ● Enter an unused IP address on your network. Note: you should have this information from the “Status” and “Details” pages of your internet connection noted above. ● In this example we use 192.168.30.116 ● Change the Subnet Mask to 255.255.255.0...
- Page 20 BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL ● Preview · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 21: Sd Card Recording
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL After successfully logging into the management interface, the web portal will enter the “Preview” tab. In Preview, users can control pan/tilt, zoom, focus, video capture, sound, focus, full screen preview, as well as set the preset position, run, delete, and other operations. -
Page 22: Zone Tracking Setup
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL To set up or enable auto-tracking, select “Track Configuration” on the top right corner. Select “On” under the option for Monocular Tracking. You have 2 modes for tracking: Presenter: The camera will continuously follow the subject until either the subject moves beyond the camera’s physical range of... -
Page 23: General Configuration
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL ● Zone tracking must be set up using the web interface. However, it can be activated using the remote once the setup process has been completed. ● Using either the remote or web interface, adjust the camera to the desired shot. -
Page 24: Streaming
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL To access system settings select “Configuration” in the top left corner of the web interface. Menu Explanation Includes audio compression formats, Audio sampling frequency, sampling Configure precision, compressing code rate settings etc. Video Includes video encoding, video... -
Page 25: Video Stream Capture
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL IDEO TREAM APTURE Navigate to Configuration -> Video Encode Configure the parameters according to the network environment. Note: stream name - live/av0 (live/ XXX) For example: The default IP address of the camera is 192.168.5.163. To obtain the RTSP video stream, see below: rtsp://192.168.5.163:554/live/av0（av0 main stream) - Page 26 BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Navigate to Configuration -> Audio Configure Ensure the check box next to “Enable” is toggled. ● Select AAC as the “Encode Type.” ● Change “Bitrate” to 128kbps. Click Save and Reboot the ● camera. Note: It may be necessary to adjust the Image Size under “Video Encode”...
-
Page 27: Ndi
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL ● The BG-ADAMO-JRND has NDI enabled by default. ● Change the NDI Name and NDI Group on this screen. Note: Please consult your streaming software instructions on how to connect to the NDI stream from the camera. -
Page 28: Serial Port Communication And Control
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Serial Port Communication and Control The camera can be controlled through an RS232/RS485 interface. RS232C serial parameters are as follows: Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None... - Page 29 BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Command Function Command packet Note Far(Standard) 8x 01 04 08 00 FF Near(Standard) 8x 01 04 08 02 FF Far(Variable) 8x 01 04 08 03 FF p = 0(low) - F(high) Near (Variable) 8x 01 04 08 2p FF...
- Page 30 BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Function Command packet Note Command Bright 8x 01 04 39 0D FF Bright mode Full Auto 8x 01 04 39 00 FF Automatic Exposure mode Reset 8x 01 04 0A 00 FF 8x 01 04 0A 02 FF...
- Page 31 BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Function Command packet Note Command Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain Reset 8x 01 04 3F 00 pq FF pq: Memory Number(=0 to 254) 8x 01 04 3F 01 pq FF...
-
Page 32: Visca Protocol Inquiry Commands
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Function Command packet Note Command Upleft 8x 01 06 01 VV WW 01 01 FF Upright 8x 01 06 01 VV WW 02 01 FF DownLeft 8x 01 06 01 VV WW 01 02 FF DownRight... - Page 33 BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Command Packet Return Packet Note Command y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position...
- Page 34 BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Command Packet Return Packet Note Command y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position...
-
Page 35: Pelco -D Protocol Command List
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Command Packet Return Packet Note Command CAM_ContrastInq 8x 09 04 A2 FF y0 50 00 00 0p 0q FF pq: Contrast Position y0 50 00 FF y0 50 01 FF Flip-H CAM_FlipInq 8x 09 04 A4 FF... -
Page 36: Pelco -P Protocol Command List
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Call Preset 0xFF Address 0x00 0x07 0x00 Preset ID Query Pan Position 0xFF Address 0x00 0x51 0x00 0x00 Query Pan Position Value High Value Low 0xFF Address 0x00 0x59 Response Byte Byte Query Tilt Position 0xFF... -
Page 37: Maintenance And Troubleshooting
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Response Byte Maintenance and Troubleshooting AINTENANCE ● Turn the camera off and disconnect the power adapter when not in use for an extended period. ● Use a soft cloth or tissue to clean the camera cover. -
Page 38: Tech Support
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL ● Check whether the video output or video display is functioning correctly. Image distorts while came is moving or appears shaky: ● Ensure the camera is installed in a solid position. ● Ensure there are no objects near the camera that can be transmitting vibration. -
Page 39: Mission Statement
BZBGEAR BG-ADAMO-JRND PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog.
