Summary of Contents for BZB Gear BG-PACKSHOT-C10X

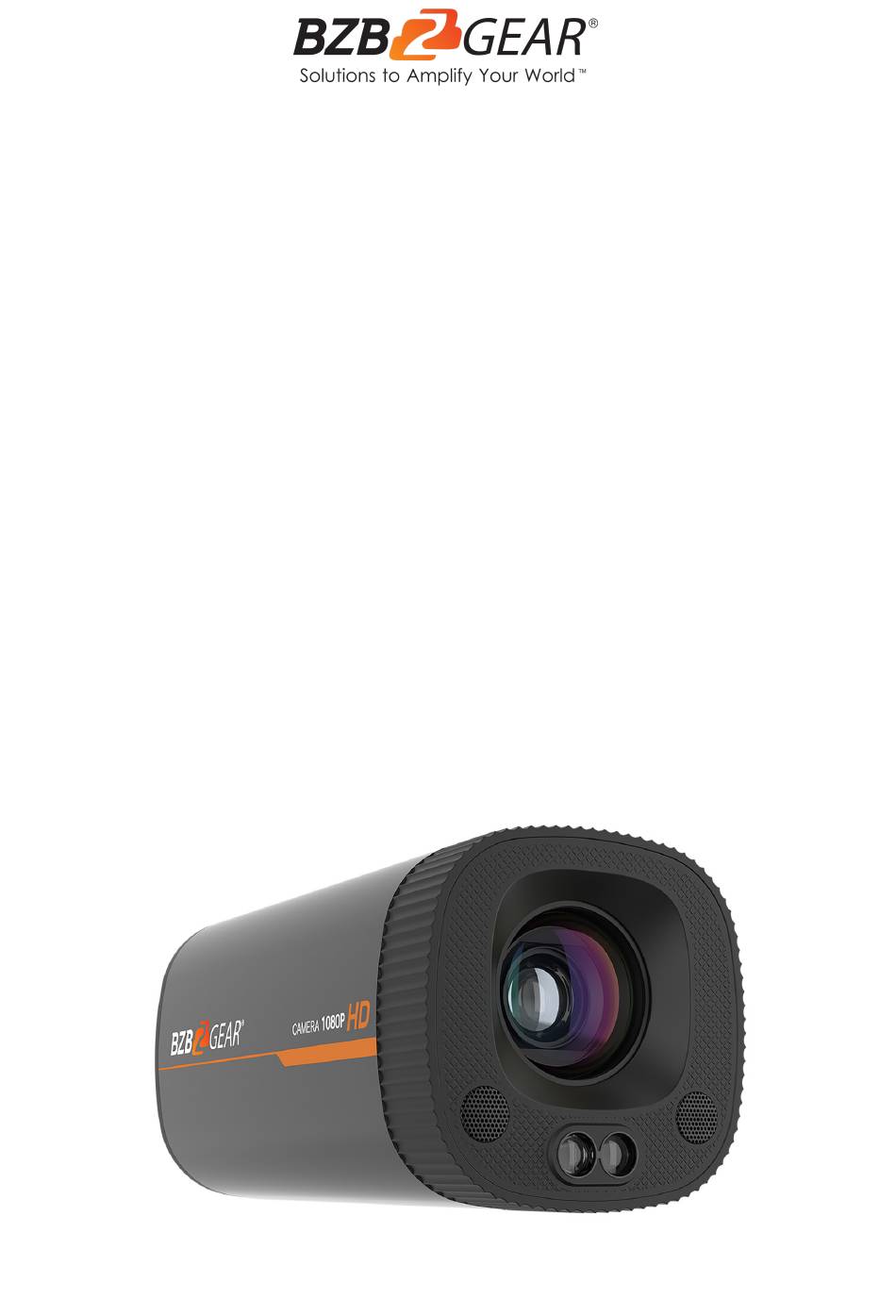

- Page 1 BG-PACKSHOT-C10X 1080P Full HD HDMI/USB 3.0 Vertical Live Streaming Box Camera User Manual...
- Page 2 BZBGEAR BG-PACKSHOT-C10X PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-PACKSHOT-C10X PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Camera Overview Remote Control Keys Introduction for IR Remote Control Menu Introduction Maintenance and Troubleshooting Application Example Tech Support Warranty Mission Statement Copyright ·... -
Page 4: Statement
BZBGEAR BG-PACKSHOT-C10X PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
Ideal for up-close and personal shoots, the BG-PACKSHOT-C10X is a versatile solution for capturing videos and photos meant to be viewed on both traditional monitors as well as mobile devices. -
Page 6: Technical Specifications
BZBGEAR BG-PACKSHOT-C10X PRODUCT MANUAL Technical Specifications Camera Parameter Sensor 1/2.8 inch sensor Effective Pixels 2 Megapixel, 16:9 Video Format HDMI video format 1080I@60fps, 1080I@50fps, 1080P@30fps, 1080P@25fps, 720P@60fps, 720P@50fps USB3.0 interface video format Horizontal screen: 1920×1080@30fps, 1280×720@30fps, 1024×576@30fps, 960×540@30fps, 800×448@30fps, 640×360@30fps, 640×480@30fps, 320×176P@30fps... -
Page 7: Camera Overview
BZBGEAR BG-PACKSHOT-C10X PRODUCT MANUAL Camera Overview Camera Interfaces 1. Power: Connect supplied 12V power adapter. 2. HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 1080p@30Hz. 3. USB: Connect a USB 3.0 cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolutions up to 1080p@30Hz. - Page 8 BZBGEAR BG-PACKSHOT-C10X PRODUCT MANUAL Dimensions Interfaces and Connection · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 9: Remote Control
BZBGEAR BG-PACKSHOT-C10X PRODUCT MANUAL Remote Control Match Code for Wireless Remote Control One-to-One Code Matching: Press the "set" and "*" keys combined for 3 seconds, LED indicator starts flashing. Camera will receive the signal and power on. The LED indicator will turn off if the code matching is successful. The camera can be controlled by the wireless remote control only after one to one code pairing. - Page 10 BZBGEAR BG-PACKSHOT-C10X PRODUCT MANUAL 2. Camera Selection Select the camera’s address to control it. 3. Focus Control Auto: Auto focus mode Manual: Manual focus mode Focus + (near): Press【FOCUS +】 key (Valid only in manual focus mode) Focus - (far): Press【FOCUS -】 key (Valid only in manual...
-
Page 11: Menu Introduction
BZBGEAR BG-PACKSHOT-C10X PRODUCT MANUAL Menu Setting 【MENU】: Open / close the OSD menu 【HOME】: Camera lens back to the middle position; Confirm button; Enter next menu 【↑】【↓】：Choose item 【←】【→】：Modify values 【BLC ON/OFF】：Turn on or off the back light compensation Menu Introduction Main menu In normal working mode, press 【MENU】... - Page 12 BZBGEAR BG-PACKSHOT-C10X PRODUCT MANUAL Anti-Flicker: OFF/50Hz/60Hz for options (only available in Auto/Iris priority/Brightness priority modes) Gain limit: 0~15(only available in Auto/ Iris priority /Brightness priority mode) WDR: Off, 1~8 ShutterPriority: 1/25, 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500,...
- Page 13 BZBGEAR BG-PACKSHOT-C10X PRODUCT MANUAL 3D Noise Reduction: Close, 1~8 Dynamic Hot Pixel: Close, 1~5 8) Focus: Move the pointer to the (FOCUS) in the Menu, click【HOME】to enter FOCUS: Focus Mode: Auto/manual Focus Assist: On/Off AF-Zone: Up/middle/down AF-Sensitivity: High/middle/low 9) Video Format: Move the pointer to the (Video Format) in the Menu, click【HOME】to enter Video...
-
Page 14: Maintenance And Troubleshooting
BZBGEAR BG-PACKSHOT-C10X PRODUCT MANUAL 4.1 Camera Maintenance 1) Power off the camera and disconnect the power adapter and socket if the unit is not used for an extended period of time. 2) Use soft cloth or tissue to clean the camera cover. -
Page 15: Application Example
BZBGEAR BG-PACKSHOT-C10X PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 16: Tech Support
BZBGEAR BG-PACKSHOT-C10X PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.
