- Page 1 BG-MAESTRO-H 1080P Full HD 8MP HDMI Auto-Tracking Wide Angle ePTZ Camera User Manual...
- Page 2 BZBGEAR BG-MAESTRO-H PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-MAESTRO-H PRODUCT MANUAL Table of Contents Statement Safety Precaution Introduction Features Packing List Specifications Wall Mount Installation Interfaces Dimensions Web Interface Login and Tracking Settings Web Client Login Web Interface Preview Tab Web Interface Configuration Tab Audio Configure Video Configure Network Configure... -
Page 4: Statement
BZBGEAR BG-MAESTRO-H PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction

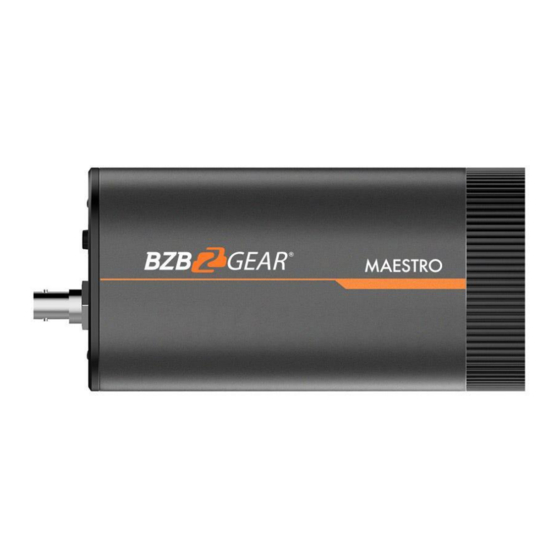

BZBGEAR BG-MAESTRO-H PRODUCT MANUAL Introduction The BG-MAESTRO is a compact ePTZ auto-tracking camera that delivers exceptionally accurate tracking throughout its coverage area. Designed to be easily configured without requiring additional software, the auto-tracking parameters are set through the web based interface. -
Page 6: Packing List
Packing List ● 1 x Power Adapter ● 1 x User Manual ● 1 x USB 3.0 Cable ● 1 x BG-MAESTRO-H ● 1 x Mounting Arm · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 7: Specifications
BZBGEAR BG-MAESTRO-H PRODUCT MANUAL Specifications Camera/ Lens Parameters Image Sensor 1/2.8 inch High Quality 4K CMOS Sensor Effective Pixels 8.28 megapixel, 16: 9 HDMI/U3:MJPG/H264：1920*1080/1600*896 /1280*720 /1024*576 /960*540 /800*600 /800*448 /720*576/720*480 /640*480 /640*360 /480*270 /352*288 /320*240@30/25/20/15/10/5fps；1080p30, 1080p25, 1080i60, 1080i50, 720p60, 720p50 Video Format YUY2/NV12：1920*1080 /1280*720 /1024*576 /800*600 /800*448 /640*480 /640*360... -
Page 8: Wall Mount Installation
BZBGEAR BG-MAESTRO-H PRODUCT MANUAL Others Power Adapter Working Voltage Power Adapter 0.42A(max) Working Current 0.104A(max) Power Consumption 5W(max) Storage Temperature -10℃～+60℃ Storage Humidity 20%～95% Working Temperature -10℃～+50℃ Working Humidity 20%～80% Dimension(W X H X D) 149.2mm×78mm×78mm Weight Approximate 0.53kg Environment... -
Page 9: Interfaces
BZBGEAR BG-MAESTRO-H PRODUCT MANUAL Interfaces Lens HDMI output RS232 / RS485 Mounting Arm hole USB 3.0 Power jack Tripod Hole Reset button Power indicator LAN interface 3.5mm Stereo line-in Dimensions · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 10: Web Interface Login And Tracking Settings
BZBGEAR BG-MAESTRO-H PRODUCT MANUAL Web Interface Login and Tracking Settings Network Connection Connection Modes Direct connection: Connect the camera directly to the computer using an ethernet cable. Internet connection mode: Connect the camera and computer to a router or switch and access via the local area network (LAN). - Page 11 BZBGEAR BG-MAESTRO-H PRODUCT MANUAL For the following steps refer to the diagram below. Click on the bubble for “Use the following IP address” In the IP address field enter a non-conflicting IP address on the same subnet as the camera. If there is another device with the same IP address you will not be able to connect.
-
Page 12: Web Client Login
BZBGEAR BG-MAESTRO-H PRODUCT MANUAL Web Client Login Input the IP address of the device (192.168.5.163) in the address field of your web browser and press the enter key to enter the Web Client login page. Users can login as an administrator and normal user. -
Page 13: Web Interface Configuration Tab
BZBGEAR BG-MAESTRO-H PRODUCT MANUAL Web Interface Configuration Tab Click “Configuration” in the top left to enter into the device setting page. Menu Description Enable/Disable audio switch, compression format, sample rate, sampling Audio Configure precision, bit rate, channel (mono/stereo), and input volume. -
Page 14: Audio Configure
BZBGEAR BG-MAESTRO-H PRODUCT MANUAL Audio Configure Enable: Choose to enable/disable embedded audio (default: off). Encode Type: Set audio compression format and the device will reboot automatically after a change (AAC, MP3, G.711A) Sampling Rate: Set the sampling frequency and the device will reboot automatically after a... -
Page 15: Video Configure
BZBGEAR BG-MAESTRO-H PRODUCT MANUAL Video Configure 1. Video Encoding Stream: Set different video output mode settings when running different streams. (close-up main stream, close-up sub-stream, panoramic main stream, panoramic sub-stream, and Inter PGM stream) Compression Format: Set the video compression format, save and reboot to take effect (main / secondary stream default: H.264, H.265 optional) - Page 16 BZBGEAR BG-MAESTRO-H PRODUCT MANUAL Frame Rate (F/S): Set the video frame rate (close-up main stream, close-up sub-stream, panoramic main stream, panoramic sub-stream, and broadcast code stream default 30F/S, main stream 5-30F/S optional). I Frame Interval: Set the key frame interval (close-up main stream, close-up sub-stream, panoramic main stream, panoramic sub-stream, and broadcast code stream default 30, main stream 1-150F optional).
- Page 17 BZBGEAR BG-MAESTRO-H PRODUCT MANUAL 3. RTP Multicast Stream: Set multicast or unicast on close-up main stream, close-up sub-stream, panoramic main stream, panoramic sub-stream, and inter PGM stream. Enable: Turn on/off multicast (enabled) or unicast (disabled). Protocol Type: Set multicast protocol (default RTP multicast, TS multicast optional) Multicast Address: Default 224.1.2.3.
- Page 18 BZBGEAR BG-MAESTRO-H PRODUCT MANUAL 4. Video Parameters a. Exposure: Exposure mode, EV, back light compensation, flicker, gain limit, DRC, shutter speed, and brightness can be set depending on mode selected. Exposure Mode: Set the exposure mode (the default is auto, manual, SAE, and bright available).
- Page 19 BZBGEAR BG-MAESTRO-H PRODUCT MANUAL b. Color: White balance, saturation, color, white balance, sensitivity, color temperature, gain red and blue gain can be set. White Balance Modes: Set the white balance mode (the default automatic, 2400K-7100K, manual, One-push optional). RG Tuning: default 0, -10~10 (only available in automatic mode) BG Tuning: default 2, -10~10 (only available in automatic mode) Saturation: Set the saturation (default 36, 0-127 optional).
- Page 20 BZBGEAR BG-MAESTRO-H PRODUCT MANUAL c. Image: Bright, contrast, sharpness, gamma, DCI, LDC, B&W mode, flip-h, flip-v, dzoom, and low-light controls. Bright: Set the image brightness (default 7, 0-14 optional). Contrast: Set the contrast (default 7, 0-14 optional). Sharpness: Set the sharpness value (default 4, 0-15 optional).
- Page 21 BZBGEAR BG-MAESTRO-H PRODUCT MANUAL d. Noise Reduction: 2D noise reduction, 3D noise reduction 2D Noise Reduction: Set 2D noise reduction level (default 2, 1-7, off, auto). 3D Noise Reduction: Set 3D noise reduction level (default 5, 1-8, off). Dynamic Hot Pixel: Assist in removing pixels that read too bright (default off 1-5 available) e.
- Page 22 BZBGEAR BG-MAESTRO-H PRODUCT MANUAL 5. Video OSD Show Time: Check to show the date and time on the image (set in Camera Configure - Time). Show Title: Check to show the device name on the image (set in Camera Configure - Attributes).
-
Page 23: Network Configure
BZBGEAR BG-MAESTRO-H PRODUCT MANUAL 7. Video output Enable: check to enable video output through the HDMI/SDI port. (OFF by default) Output Format: 1080P30, 1080P25, 1080I60, 1080I50, 720P60, 720P50 (NOTE: Click on the "Save" button for settings to take effect.) Network Configure 1. - Page 24 BZBGEAR BG-MAESTRO-H PRODUCT MANUAL 2. Ethernet Parameters DHCP: Check to enable or disable to obtain an IP address automatically. Save changes and reboot the device to takes effect (default: OFF) IP Address: Set the IP address, save changes and reboot the device to take effect (default 192.168.5.163).
-
Page 25: Camera Configure
BZBGEAR BG-MAESTRO-H PRODUCT MANUAL 5. SRT Port SRT: Set the SRT port (default 9000, 0-65535 optional) Password for stream encryption: Set the SRT password. (the default is empty, the password is between 10-80 characters) Crypto key length in bytes: Set the length of the SRT password (default 0, 16, 24, 32 optional) (NOTE: Click on the "Save"... -
Page 26: Logout
BZBGEAR BG-MAESTRO-H PRODUCT MANUAL 4. Update Normal users can only read the camera version information but can not modify or update. Update File: Click the “Choose File” button to browse to and select the firmware upgrade file in the pop-up window. -
Page 27: Tracking Configuration
BZBGEAR BG-MAESTRO-H PRODUCT MANUAL Tracking Configuration Follow these steps to set up tracking. 1. Click the “Stop” radial button to disable tracking and enable the “Platform Preset,” “Panoramic Preset,” and “Area Settings.” 2. Adjust the camera position and zoom using the arrow keys and for the frame the platform and then click “Save”... -
Page 28: Tech Support
BZBGEAR BG-MAESTRO-H PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. Or explore our YouTube channel, BZB TV (youtube.com/c/BZBTVchannel), for help setting up,...
